Chapter 1 Introduction
ZyWALL USG 20-2000 User’s Guide
11

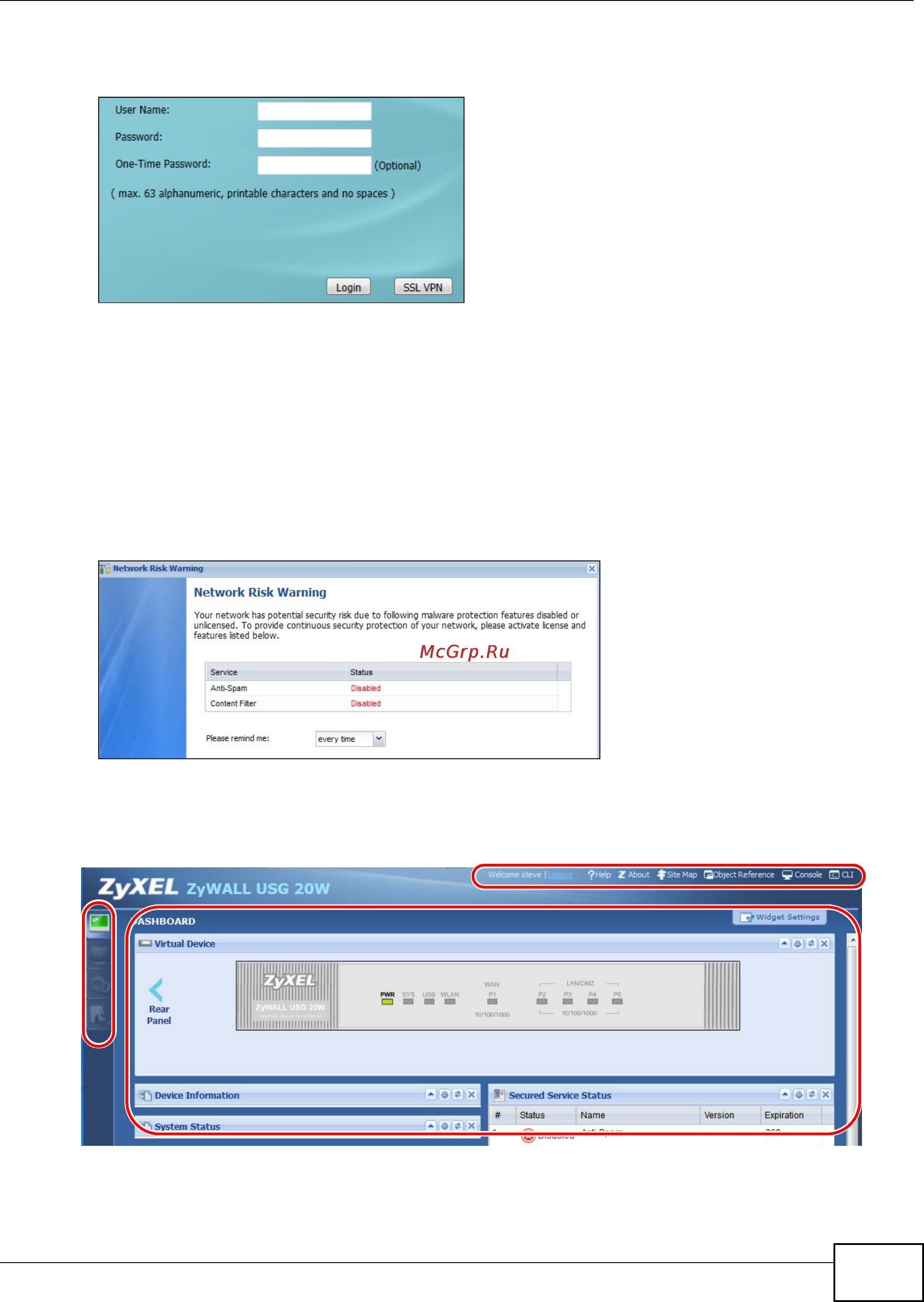

2 In your browser go to http://192.168.1.1. By default, the ZyWALL automatically routes this request
to its HTTPS server, and it is recommended to keep this setting. The Login screen appears.
3 Type the user name (default: “admin”) and password (default: “1234”).
If you have a OTP (One-Time Password) token generate a number and enter it in the One-Time
Password field. The number is only good for one login. You must use the token to generate a new
number the next time you log in.
4 Click Login. If you logged in using the default user name and password, the Update Admin Info
screen appears. Otherwise, the dashboard appears.
5 The Network Risk Warning screen displays any unregistered or disabled security services. Select
how often to display the screen and click OK.
6 Follow the directions in the Update Admin Info screen. If you change the default password, the
Login screen appears after you click Apply. If you click Ignore, the Installation Setup Wizard
opens if the ZyWALL is using its default configuration; otherwise the dashboard appears.
A
C
B
