Chapter 5 Managing Traffic
ZyWALL USG 20-2000 User’s Guide
98

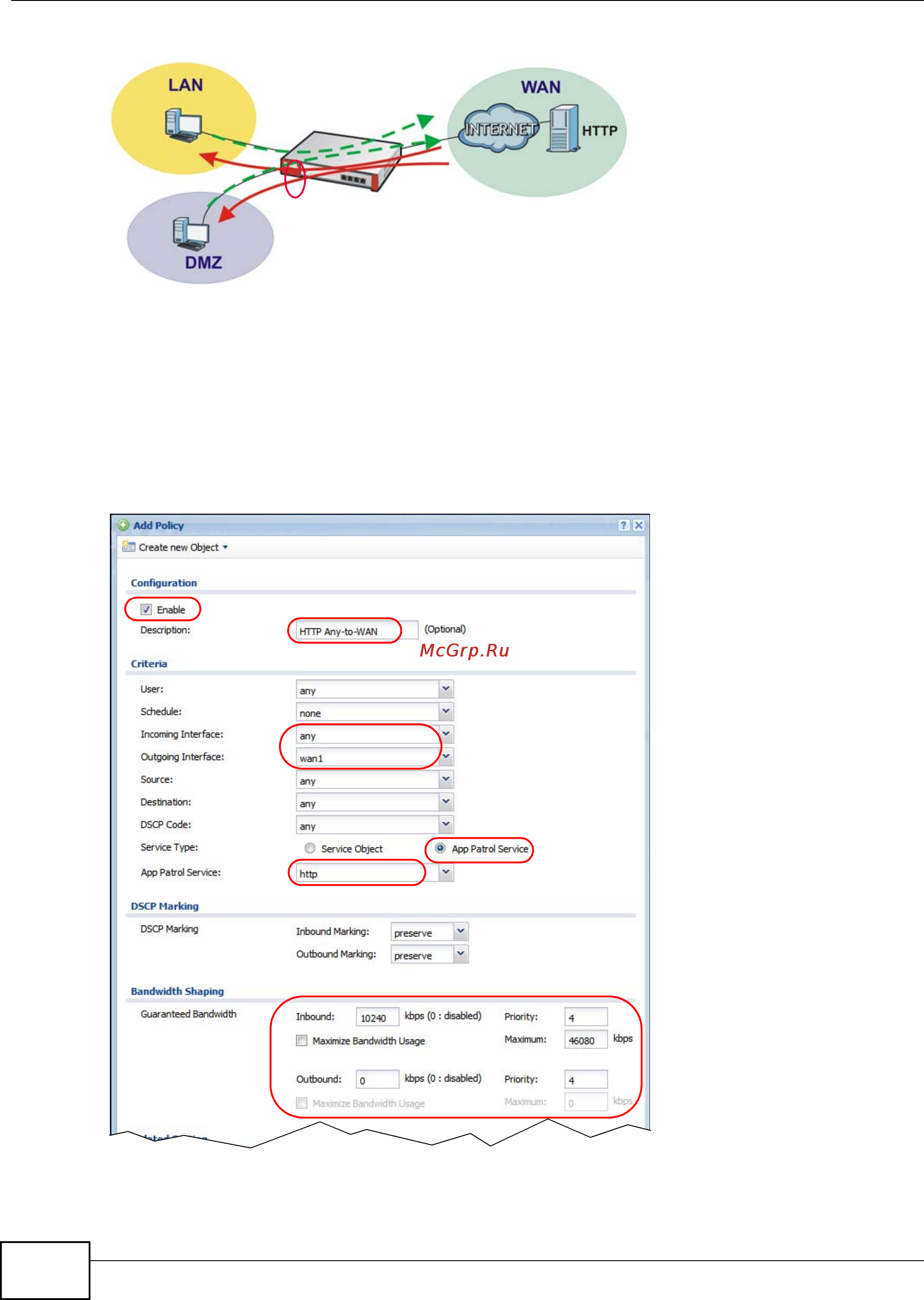

Figure 38 HTTP Any-to-WAN Bandwidth Management Example
1 In the Configuration > BWM screen, click Add.
2 In the Add Policy screen, select Enable and type HTTP Any-to-WAN as the policy’s name.
Leave the incoming interface to any and select wan1 as the outgoing interface.
Select App Patrol Service and http as the service type.
Set the guaranteed inbound bandwidth to 10240 (kbps) and set priority 4. Set the maximum to
46080 (kbps). Set the outbound priority to 4. Click OK.
Inbound: 10240 kbps guaranteed
Outbound:
BWM
46080 kbps maximum
Bandwidth not managed
