Ethernet Switch CLI Reference Guide
235
CHAPTER 57
Private VLAN Commands
This chapter explains how to use commands to configure private VLANs on the Switch.
57.1 Private VLAN Overview
Private VLAN allows you to do port isolation within a VLAN in a simple way. You specify
which port(s) in a VLAN is not isolated by adding it to the promiscuous port list. The Switch
automatically adds other ports in this VLAN to the isolated port list and block traffic between
the isolated ports. A promiscuous port can communicate with any port in the same VLAN.
While an isolated port can communicate with the promiscuous port(s) only.

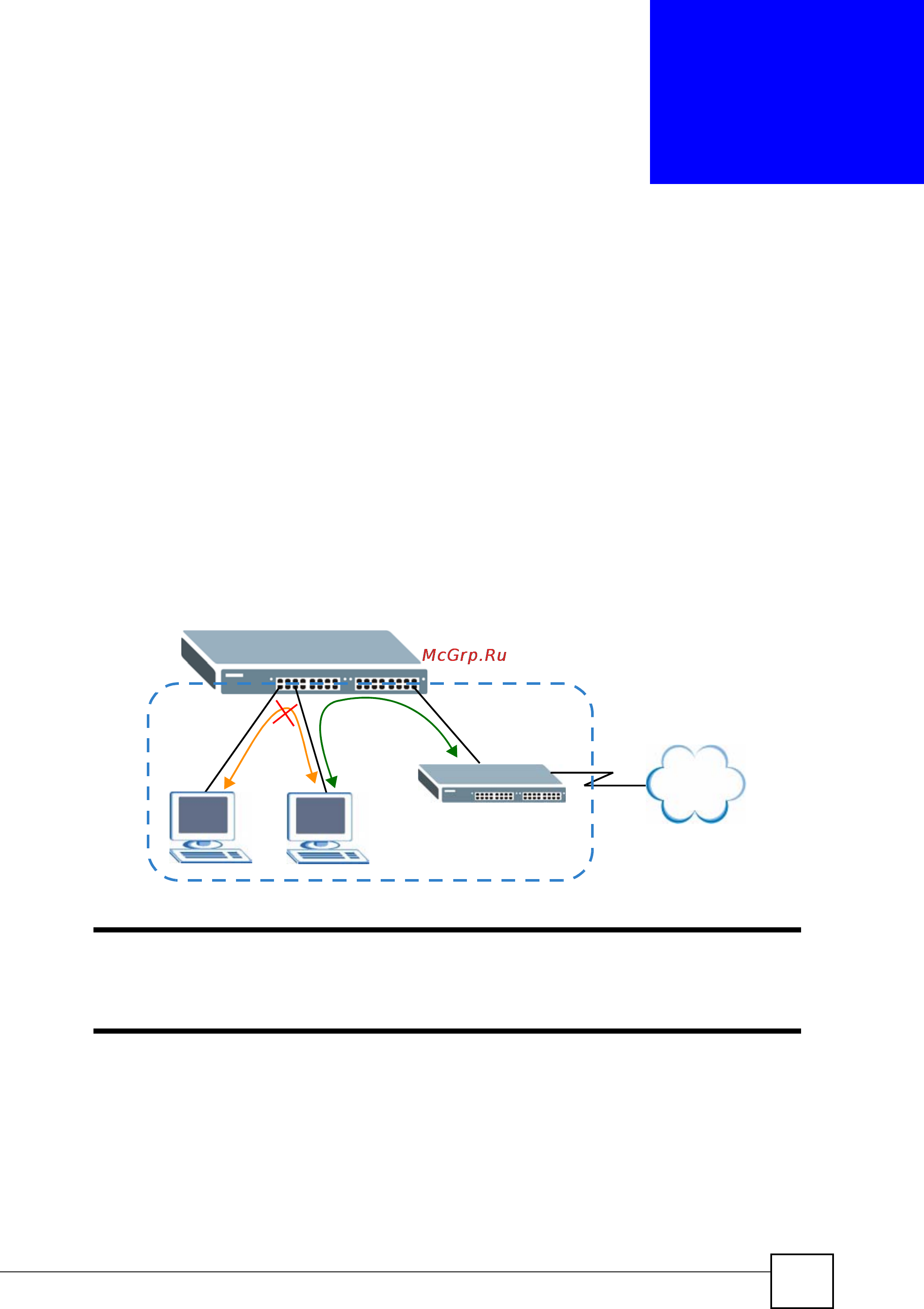

Figure 9 Private VLAN Example
If you change the VLAN settings, make sure you keep at least one port in the
promiscuous port list for a VLAN with private VLAN enabled. Otherwise, this
VLAN is blocked from the whole network.
Isolated ports: 2 ~ 6
Promiscuous port: 10
VLAN 123
2
6
10
