MSI z87 mpower max ac [45/116] Chapter 1

Chapter 1

1-31 Getting Started

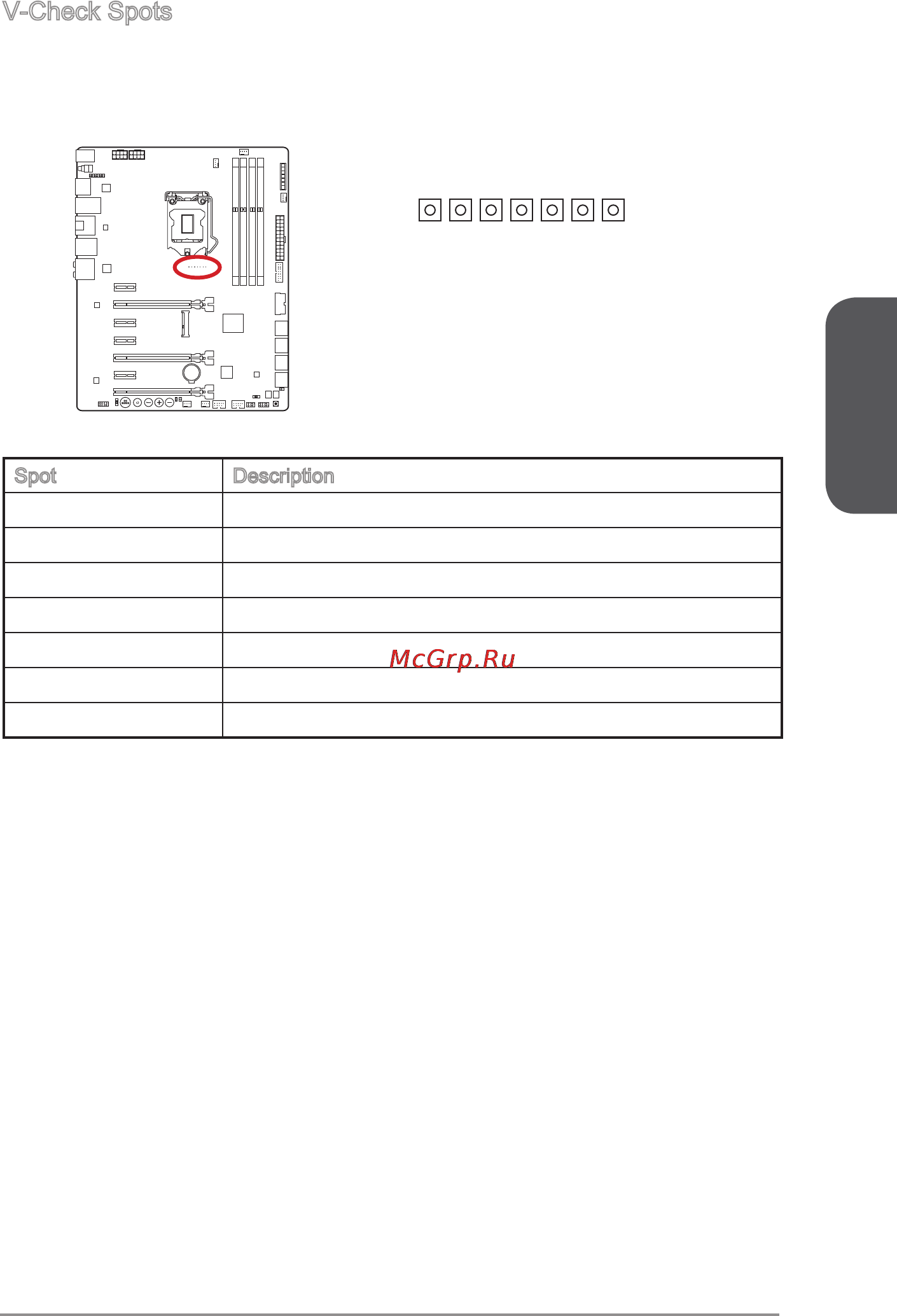

V-Check Spots

These voltage check spots are for you to measure CPU and PCH voltages. To check

the voltage, please attach the positive lead of the multimeter to these spots and the

negative lead to any ground spot.

CPU_VCOMP

CPU_CORE2

CPU_CORE1

PCH_VCCVRM

CPU_CORE3

PCH_CORE

CPU_VCCIO

Spot Description

CPU_VCOMP CPU Vcomp voltage

CPU_CORE2 CPU core2 voltage

CPU_CORE1 CPU core1 voltage

CPU_CORE3 CPU core3 voltage

PCH_VCCVRM VRM voltage for PCH VCC

PCH_CORE PCH core voltgae

CPU_VCCIO IO voltage for CPU VCC
