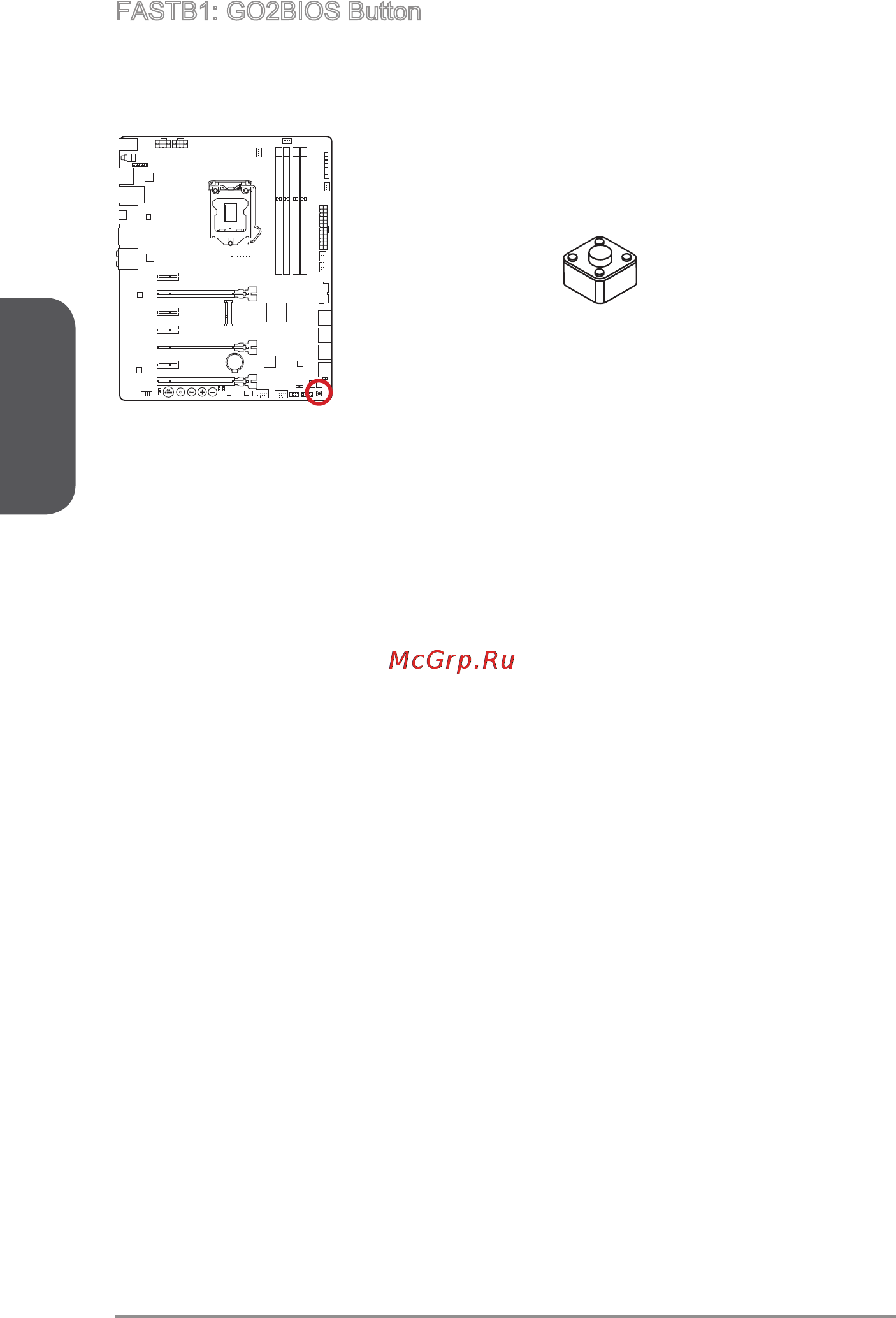

FASTB1: GO2BIOS Button

If you enable the "MSI Fast Boot" feature in BIOS, the keyboard will be unavaiable

and entering BIOS Setup by pressing DEL will not function. Therefore, you can press

this button to enter BIOS Setup after reboot.
