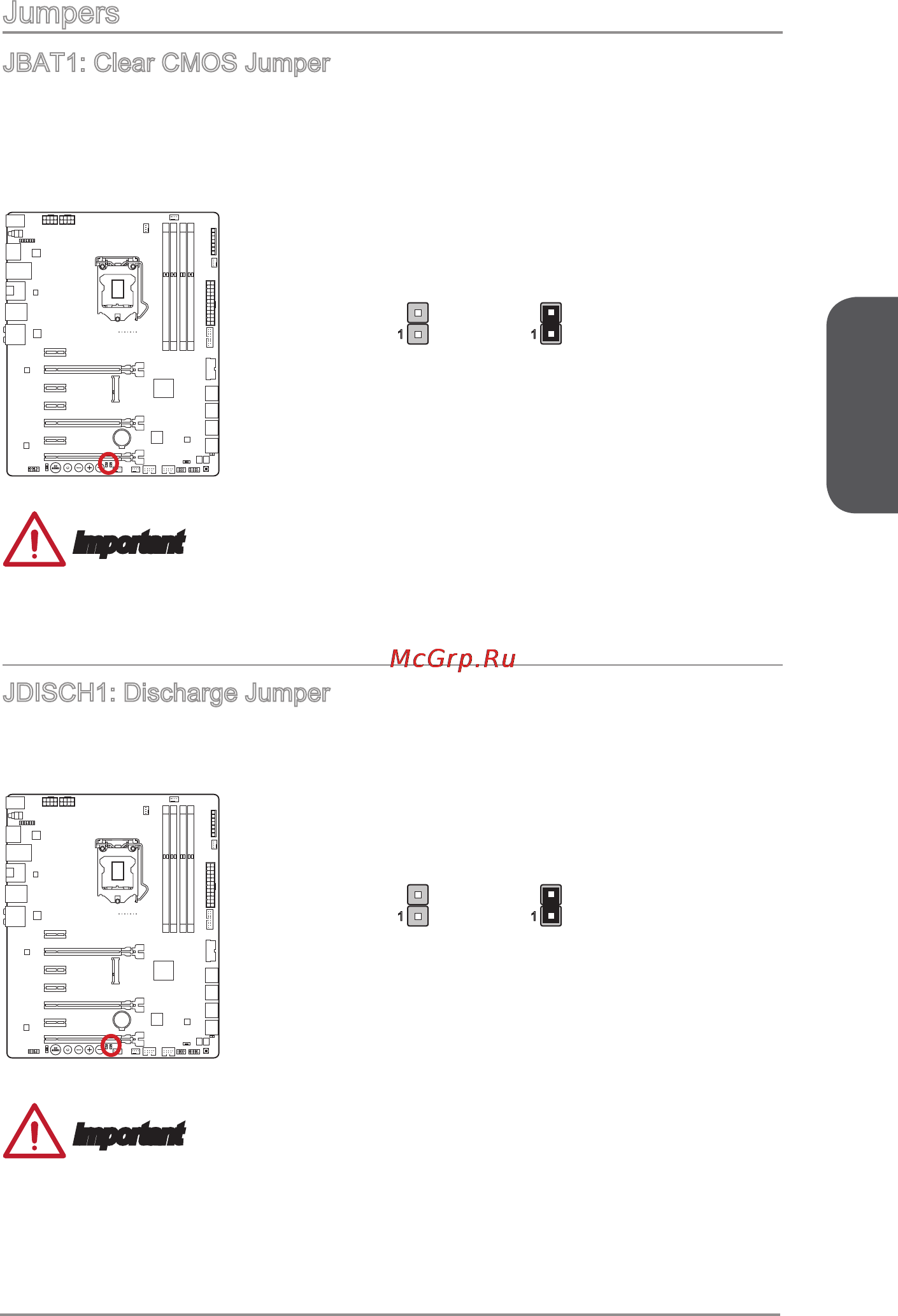

![MSI z87 mpower max ac [49/116] Chapter 1](/views2/1174322/page49/bg31.png)
Chapter 1
1-35 Getting Started
Jumpers
JBAT1: Clear CMOS Jumper
There is CMOS RAM onboard that is external powered from a battery located on the
motherboard to save system conguration data. With the CMOS RAM, the system can
automatically boot into the operating system (OS) every time it is turned on. If you
want to clear the system conguration, set the jumpers to clear the CMOS RAM.
Keep Data Clear Data
1 1
Important
You can clear the CMOS RAM by shorting this jumper while the system is o.
Afterwards, open the jumper . Do not clear the CMOS RAM while the system is on
because it will damage the motherboard.
JDISCH1: Discharge Jumper
This jumper allows you to discharge the motherboard by using the jumper instead of
removing the battery.
Normal Discharge
1 1
Important
You can discharge the motherboard by shorting this jumper while the system is o.
