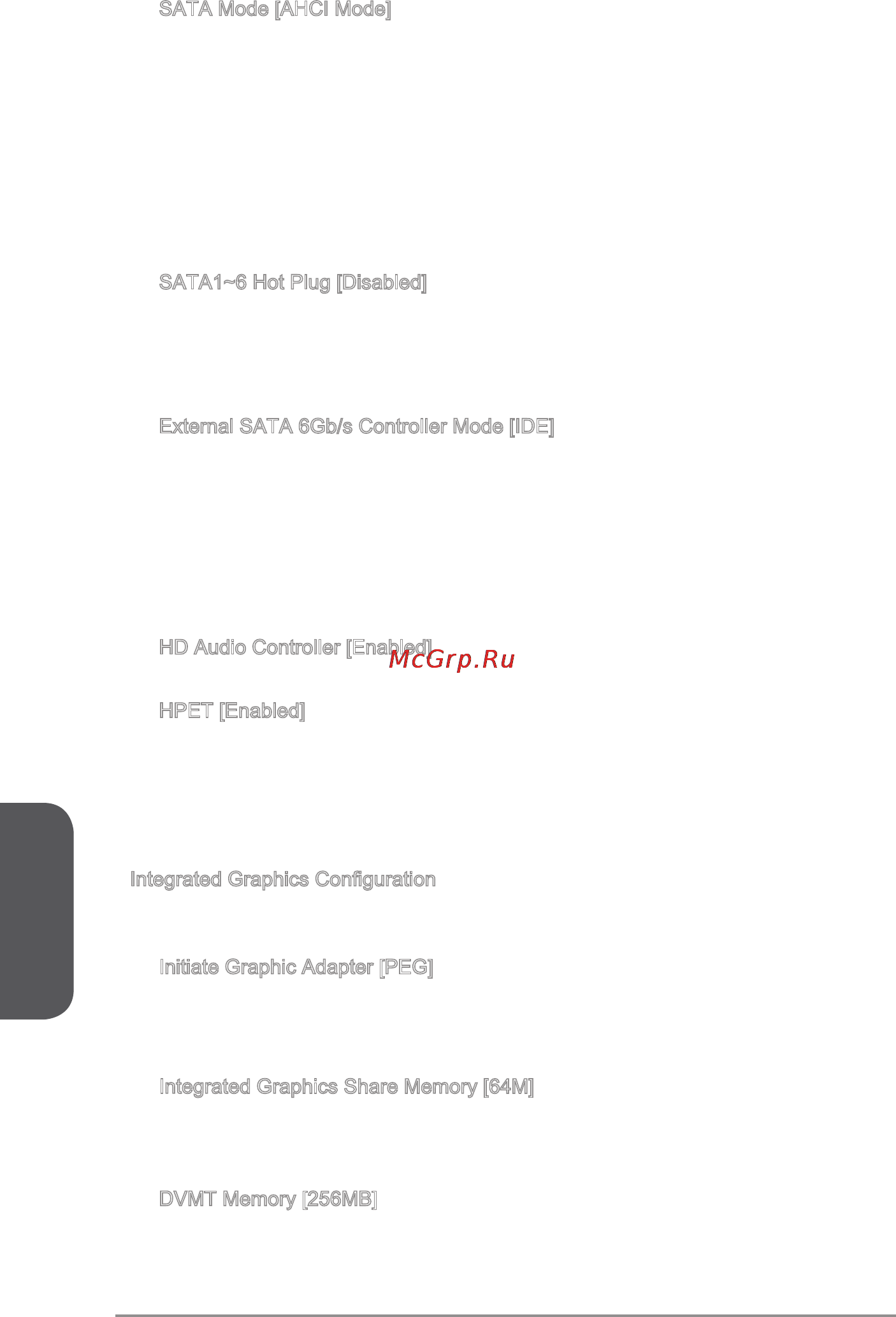

Chapter 3
3-8BIOS Setup
SATA Mode [AHCI Mode]
Sets the operation mode of the onboard SATA controller. The default mode is
AHCI.
[Disabled] Disables the SATA function.
[IDE Mode] Specify the IDE mode for SATA storage devices.
[AHCI Mode] Specify the AHCI mode for SATA storage devices. AHCI (Advanced
Host Controller Interface) oers some advanced features to enhance
the speed and performance of SATA storage device, such as Native
Command Queuing (NCQ) and hot-plugging.
[RAID Mode] Enables RAID function for SATA storage devices.
SATA1~6 Hot Plug [Disabled]
Allows user to enable or disable the SATA hot plug support. This item will appear
when the “SATA Mode” set to [AHCI]/ [RAID].
[Enabled] Enables hot plug support for the SATA ports.
[Disabled] Disables hot plug support for the SATA ports.
External SATA 6Gb/s Controller Mode [IDE]
Sets the operation mode of the external SATA controller.
[Disabled] Disables the SATA function.
[IDE Mode] Specify the IDE mode for SATA storage devices.
[AHCI Mode] Specify the AHCI mode for SATA storage devices. AHCI (Advanced
Host Controller Interface) oers some advanced features to enhance
the speed and performance of SATA storage device, such as Native
Command Queuing (NCQ) and hot-plugging.
HD Audio Controller [Enabled]
Enables or disables the onboard High Denition Audio controller.
HPET [Enabled]
The HPET (High Precision Event Timers) is a component which is part of the
chipset. Enables it will provide you with the means to get to it via the various ACPI
methods.
[Enabled] Enables High Precision Event Timers.
[Disabled] Disables High Precision Event Timers.
Integrated Graphics Conguration
Adjusts integrated graphics settings for optimum system. Press <Enter> to enter the
sub-menu.
Initiate Graphic Adapter [PEG]
Selects a graphics device as the primary boot device.
[IGD] Integrated Graphics Display.
[PEG] PCI-Express Graphics Device.
Integrated Graphics Share Memory [64M]
Selects a xed amount of system memory allocated to the onboard graphics. This
item denes the exact memory size shared to the onboard graphics. [Options: 32M,
64M, 128M, 256M]
DVMT Memory [256MB]
DVMT memory can dynamically allocate system memory for running graphics-
intensive applications, such as 2D/3D games. [Options: 128MB, 256MB, Maximum]
▶
▶
▶
▶
▶
▶
▶
▶
▶
