3. Power over Ethernet Overview
What is PoE?
The PoE is an abbreviation of Power over Ethernet; the PoE technology means
a system to pass electrical power safely, along with data on Ethernet UTP cable.
The IEEE standard for PoE technology requires Category 5 cable or higher for high
power PoE levels, but can operate with category 3 cable for low power levels.
Power is supplied in common mode over two or more of the differential pairs of
wires found in the Ethernet cables and comes from a power supply within a PoE-
enabled networking device such as an Ethernet switch or can be injected into a
cable run with a mid-span power supply.
The original IEEE 802.3af-2003 PoE standard provides up to 15.4 W of DC power
(minimum 44 V DC and 350mA) to each device. Only 12.95 W is assured to be
available at the powered device as some power is dissipated in the cable.
The updated IEEE 802.3at-2009 PoE standard also known as PoE+ or PoE plus
provides up to 25.5 W of power. The 2009 standard prohibits a powered device
from using all four pairs for power.
The 802.3af / 802.3at dene two types of source equipment: Mid-Span and End-
Span.
Mid-Span
Mid-Span device is placed between legacy switch and the powered device. Mid-
Span is tap the unused wire pairs 4/5 and 7/8 to carry power; the other four is for
data transmit.
End-Span
End-Span device is directly connecting with powered device. End-Span could also
tap the wire 1/2 and 3/6.
PoE System Architecture
The specication of PoE typically requires two devices: the Powered Source
Equipment (PSE) and the Powered Device (PD). The PSE is either an End-
Span or a Mid-Span, while the PD is a PoE-enabled terminal, such as IP Phones,
Wireless LAN, etc. Power can be delivered over data pairs or spare pairs of
standard CAT-5 cabling.
Powered Source Equipment (PSE)
Power sourcing equipment (PSE) is a device such as a switch that provides
(sources) power on the Ethernet cable. The maximum allowed continuous output
power per cable in IEEE 802.3af is 15.40 W. A later specication, IEEE 802.3at,
offers 25.50 W. When the device is a switch, it is commonly called an End-span
(although IEEE 802.3af refers to it as endpoint). Otherwise, if it's an intermediary
device between a non PoE capable switch and a PoE device; it's called a Mid-span.
An external PoE injector is a Mid-span device.
Powered device
A powered device (PD) is a device powered by a PSE and thus consumes energy.
Examples include wireless access points, IP Phones, and IP cameras. Many
powered devices have an auxiliary power connector for an optional, external,
power supply. Depending on the PD design, some, none, or all power can be
supplied from the auxiliary port, with the auxiliary port sometimes acting as
backup power in case of PoE supplied power failure.
How Power is Transferred Through the Cable
A standard CAT5 Ethernet cable has four twisted pairs, but only two of these are
used for 10BASE-T and 100BASE-TX. The specication allows two options for using
these cables for power, shown in Figure 3-1 and Figure 3-2:
The spare pairs are used. Figure 3-1 shows the pair on pins 4 and 5 connected
together and forming the positive supply, and the pair on pins 7 and 8 connected
and forming the negative supply. (In fact, a late change to the spec allows either
polarity to be used).
POWER SOURCING
EQUIPMENT (PSE)
POWERED DEVICE
(PD)
SPARE PAIR
SPARE PAIR
SIGNAL PAIR
SIGNAL PAIR
Converter
DC / DC
RX
TX
TX
RX
48V
4
5
1
2
3
6
7
8
4
5
1
2
3
6
7
8
+
-
Converter

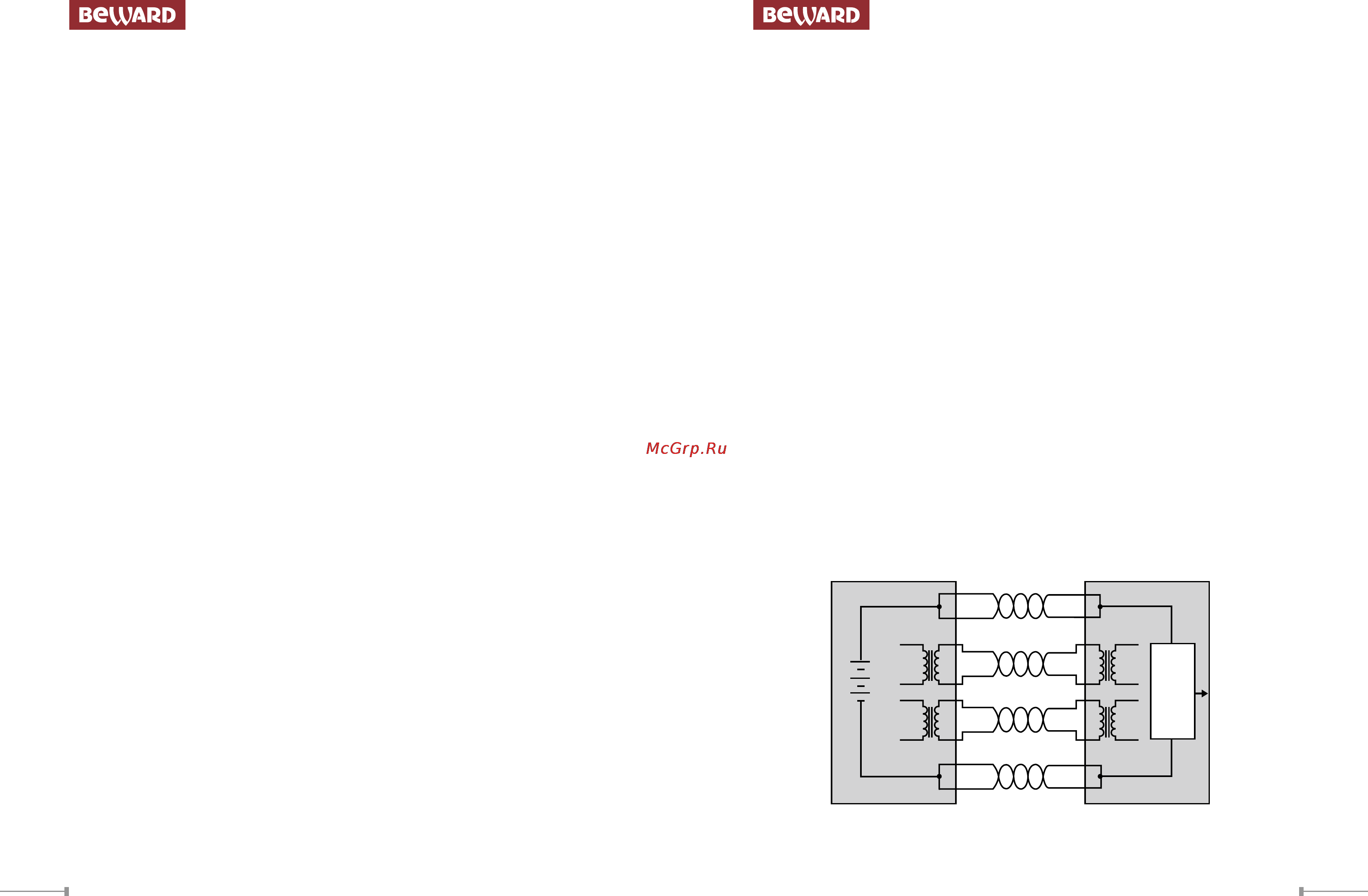

Figure 3-1: Power Supplied over the Spare Pins
