Port Type Cable Type Connector
10Base-T Cat 3, 4, 5, 2-pair RJ-45
100Base-TX Cat.5 UTP, 2-pair RJ-45
1000Base-T Cat.5/5e/6 UTP, 4-pair RJ-45
Any Ethernet devices like hubs/PCs can connect to the ST-810HP PoE Ethernet
Switch by using straight-through wires. The nine RJ-45 ports are auto-MDI/MDI-X,
which can be used on straight-through or crossover cable.

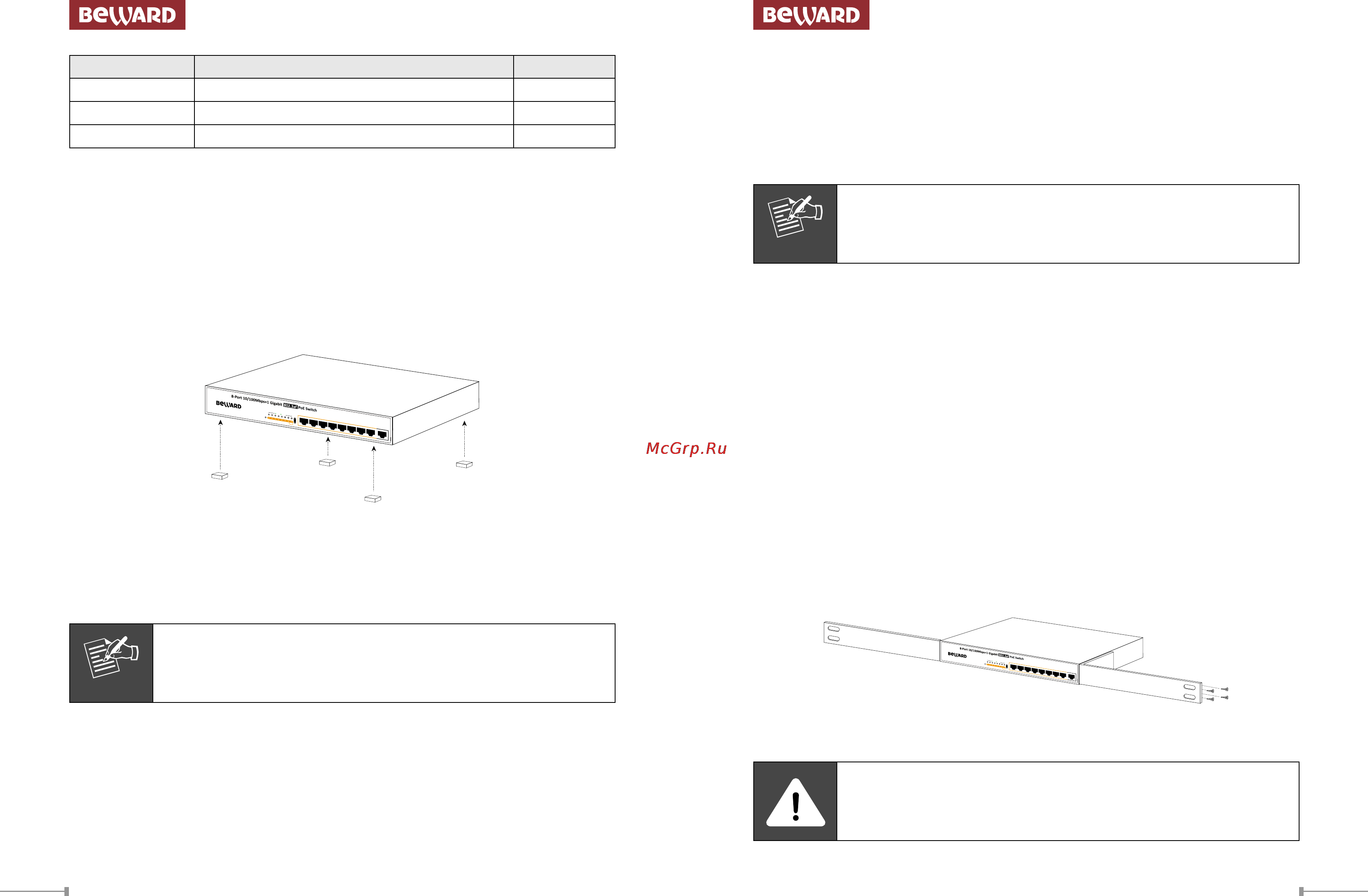

2.3 Desktop Installation
To install the PoE Ethernet Switch on desktop, simply follow the following steps:
Step 1: Attach the rubber feet to the recessed areas on the bottom of the PoE
Ethernet Switch, as shown in Figure 2-5.
PoE
1
PWR
2 3 4 5 6 7
Speed
10/100
LNK/
ACT
Gigabit
8 9
ACTLNK
8 97654321
Figure 2-5: Place the PoE Ethernet Switch on the Desktop
Step 2: Place the PoE Ethernet Switch on desktop near an AC power source.
Step 3: Keep enough ventilation space between the PoE Ethernet Switch and the
surrounding objects.
Note
When choosing a location, please keep in mind the environmental
restrictions discussed in Chapter 1, Section 4 under Specifications.
Step 4: Connect your PoE Ethernet Switch to 802.3af / 802.3at complied Powered
Devices (PD) and other network devices.
A. Connect one end of a standard network cable to the 10/100RJ-45
ports or 10/100/1000 port on the Front of the PoE Ethernet Switch.
B. Connect the other end of the cable to the network devices such as
printer servers, workstations, router, etc.
Note
Connection to the PoE Ethernet Switch requires UTP Category 5
network cabling with RJ-45 tips. For more information, please see
the Cabling Specifications in Appendix A.
Step 5: Supply power to the PoE Ethernet Switch.
A. Connect one end of the power cable to the PoE Ethernet Switch.
B. Connect the power plug of the power cable to a standard wall outlet.
When the PoE Ethernet Switch receives power, the Power LED should remain solid
Green.
2.4 Rack Mounting
To install the PoE Ethernet Switch in a 19-inch standard rack, follow the
instructions described below.
Step 1: Place your PoE Ethernet Switch on a hard at surface, with the front
panel positioned towards your front side.
Step 2: Attach a rack-mount bracket to each side of the PoE Ethernet Switch with
supplied screws attached to the package. Figure 2-6 shows how to attach
brackets to one side of the PoE Ethernet Switch.
PoE
1
PWR
2 3 4 5 6 7
Speed
10/100
LNK/
ACT
Gigabit
8 9
ACTLNK
8 97654321
Figure 2-6: Attaching the Brackets to the PoE Ethernet Switch
You must use the screws supplied with the mounting brackets.
Damage caused to the parts by using incorrect screws would invali-
date the warranty.
