BEWARD ST-810HP [9/14] Power over ethernet powered device
![BEWARD ST-810HP [9/14] Power over ethernet powered device](/views2/1188086/page9/bg9.png)
16 17
2.5.2 IPOfceDepartment/WorkgroupPoESwitch
With the business ofce expansion, the additional telephones required could be
installed in less cost via the implementation of PoE IP Telephony system than that
of the traditional circuit wiring telephony system. The PoE Ethernet Switch helps
enterprises to create an integrated data, voice, and powered network. The IEEE
802.3af compliant IP Phones can be installed without the need of an additional
power cable because the power can be provided via the standard Ethernet cable
from the connected PoE Ethernet Switch.
The Wireless AP group, PoE IP Phones and Analog Telephony Adapter work
perfectly with the PoE Ethernet Switch which injects power through the Ethernet
cables. With the PoE Ethernet Switch, IP Telephony deployment becomes more
reliable and cost effective, which helps enterprises save tremendous cost when
upgrading from the traditional telephony system to IP Telephony communications
infrastructure.
PoE
PoE
PoE
PoE
DC
802.3at Splitter
PoE VoIP
Phone
Phone
Laptop
N
N
PoE IP Camera
PoE VoIP ATA
PoE IP
Camera
Core
Switch
PoE Wireless AP
PC Group
PoE
DC
Power Line (DC)
100Base-TX UTP
PoE
100Base-TX UTP with PoE
1000Base-T UTP
Telephone wire

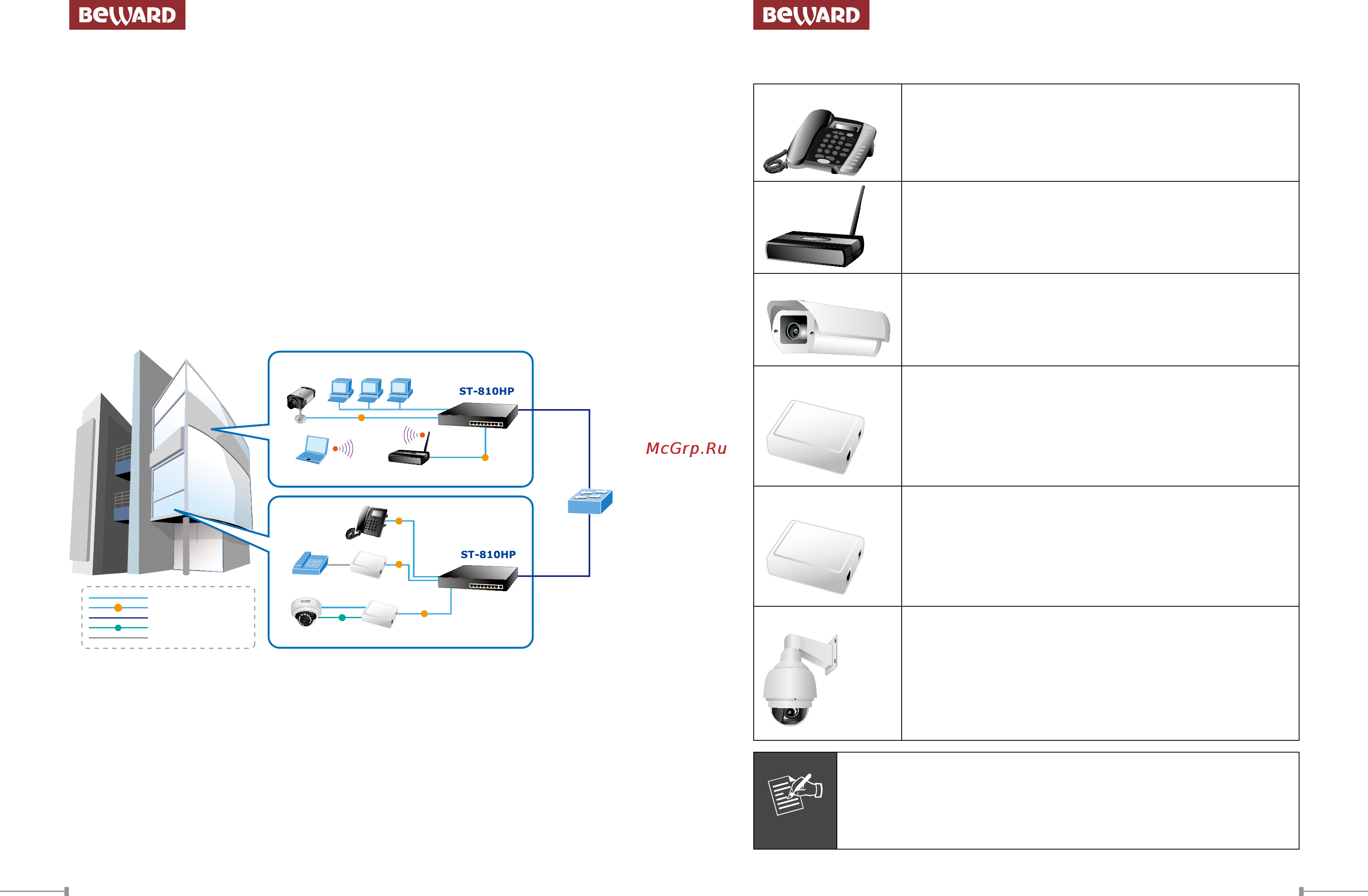

Figure 2-9: IP Ofce Department / Workgroup PoE Switch Connection
2.6 Power over Ethernet Powered Device
3~5 watts
Voice over IP phones
Enterprise can install POE VoIP Phone, ATA and other
Ethernet/non-Ethernet end-devices to the central where
UPS is installed for un-interrupt power system and power
control system.
6~12 watts
Wireless LAN Access Points
Museum, Sightseeing, Airport, Hotel, Campus, Factory
and Warehouse can install the Access Point anywhere
with no hesitation.
10~12 watts
IP Surveillance
Enterprise, Museum, Campus, Hospital, and Bank can
install IP Camera without limits of installation location. It
needs no electricians to install AC sockets.
3~12 watts
PoE Splitter
PoE Splitter splits the PoE 48V DC over the Ethernet
cable into 5/12V DC power output. It frees the device
deployment from restrictions due to power outlet
locations, which eliminate the costs for additional AC
wiring and reduces the installation time.
3~12 watts
High Power PoE Splitter (ST-810HP only)
High PoE Splitter split the PoE 56V DC over the Ethernet
cable into 24/12V DC power output. It frees the device
deployment from restrictions due to power outlet
locations, which eliminate the costs for additional AC
wiring and reduces the installation time.
30 watts
High Power Speed Dome (ST-810HP only)
This state-of-the-art design is considerable to t in
various network environments like trafc centers,
shopping malls, railway stations, warehouses, airports,
and production facilities for the most demanding outdoor
surveillance applications- no need electrician to install AC
sockets.
Note
Since the ST-810HP per PoE port supports 48V / 56V DC PoE
power output, please check and assure the Powered Device’s (PD)
acceptable DC power range is from 48V / 56V DC. Otherwise, it will
damage the Powered Device (PD).
