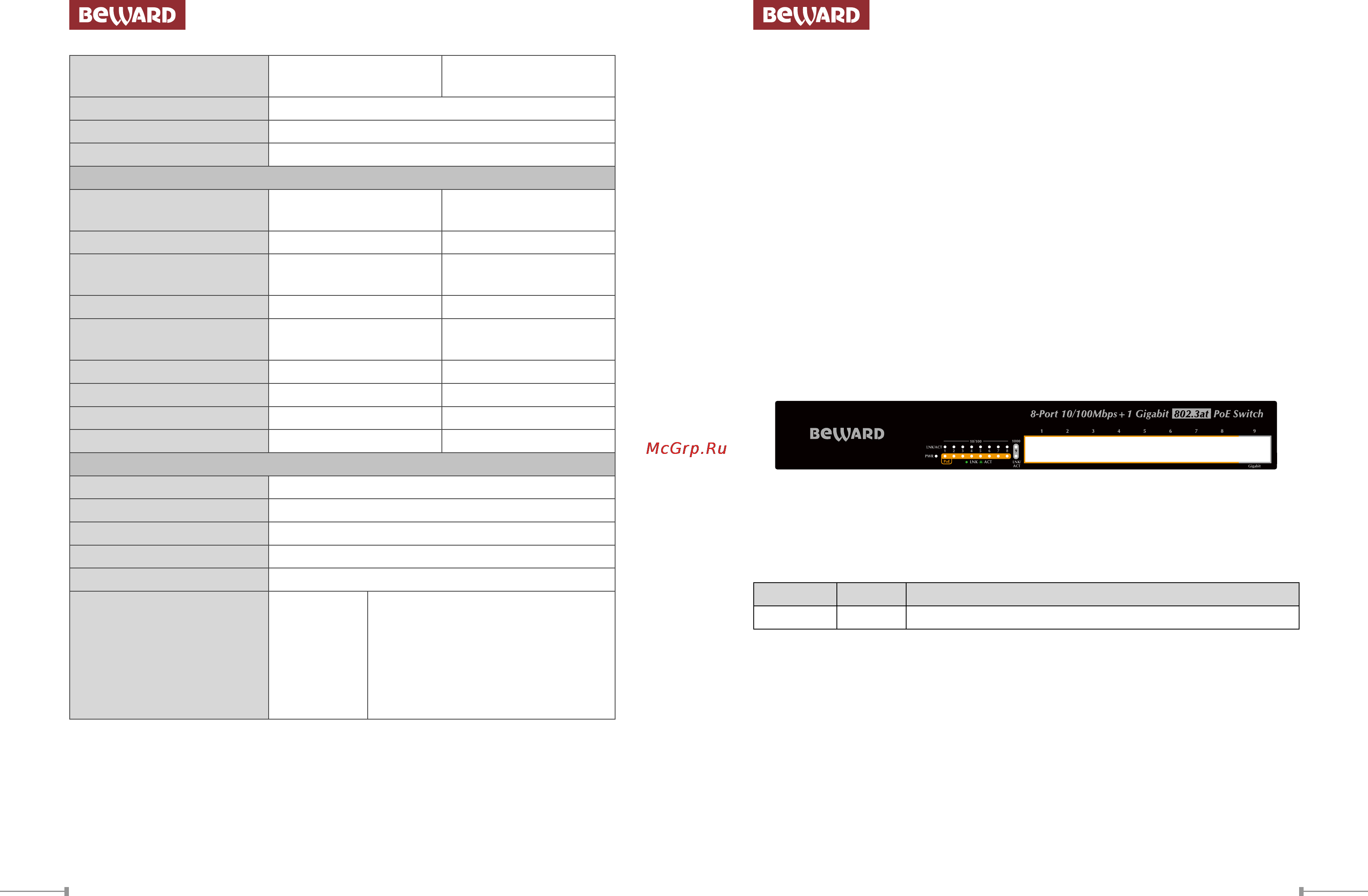

![BEWARD ST-810HP [5/14] Hardware description](/views2/1188086/page5/bg5.png)
8 9
Power Requirements
AC 100~240V, 50/60Hz,
2A max.
AC 100~240V, 50/60Hz,
2.5A max.
Power Consumption 130 watts / 443BTU
Dimensions (W x D x H) 280 x 180 x 43mm, 1U height
Weight 1.7kg
Power over Ethernet
PoE Standard
IEEE 802.3af Power over
Ethernet / PSE
IEEE 802.3at Power over
Ethernet / PSE
PoE Power Supply Type End-Span End-Span
PoE Power Output
Per Port 48V DC,
350mA. Max. 15.4 watts
Per Port 56V DC,
600mA. Max. 30 watts
Power Pin Assignment 1/2(+), 3/6(-) 1/2(+), 3/6(-)
PoE Power Budget
120 watts (at room
temperature)*
120 watts (at room
temperature)*
Max. Number of Class 1 PD 8 8
Max. Number of Class 2 PD 8 8
Max. Number of Class 3 PD 8 8
Max. Number of Class 4 PD - 3
Standard Conformance
EMI Safety FCC Class A, CE
Operating Environment 0 ~ 50 degrees C
Storage Environment -10 ~ 70 degrees C
Operating Humidity 5 ~ 95%, Relative Humidity, non-condensing
Storage Humidity 5 ~ 95%, Relative Humidity, non-condensing
Standard Compliance
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
IEEE 802.3af
IEEE 802.3at
Ethernet
Fast Ethernet
Gigabit Ethernet
Flow Control
Power over Ethernet
High Power over Ethernet
(ST-810HP only)
* Remarks: POE Power budget may be reduced if the operating temperature rises.
2. Hardware Description
This product provides three different running speeds – 10Mbps and 100Mbps at
port 1 to port 8, 10/100/1000Mbps at port 9 and automatically distinguishes the
speed of incoming connection.
This section describes the hardware features of the ST-810HP. For easier
management and control of the switch, familiarize yourself with its display
indicators, and ports. Front panel illustrations in this chapter display the unit LED
indicators. Before connecting any network device to the ST-810HP, please read this
chapter carefully.
2.1 Front Panel
The Front Panel of the ST-810HP PoE Ethernet Switch consists of 8x Auto-Sensing
10/100Mbps Ethernet RJ-45 Ports and 1x Auto-Sensing 10/100/1000Mbps Ethernet
RJ-45 Port. The LED Indicators are also located on the front panel of the PoE
Ethernet Switch.
Figure 2-2: ST-810HP Switch Front Panel
2.1.1 LED Indicators
System
LED Color Function
PWR Green Light: Indicates the switch has power.
