14 15
Step 3: Secure the brackets tightly.
Step 4: Follow the same steps to attach the second bracket to the opposite side.
Step 5: After the brackets are attached to the PoE Ethernet Switch, use suitable
screws to securely attach the brackets to the rack, as shown in Figure
2-7.
PoE
1
PWR
2 3 4 5 6 7
Speed
10/100
LNK/
ACT
Gigabit
8 9
ACTLNK
8 97654321

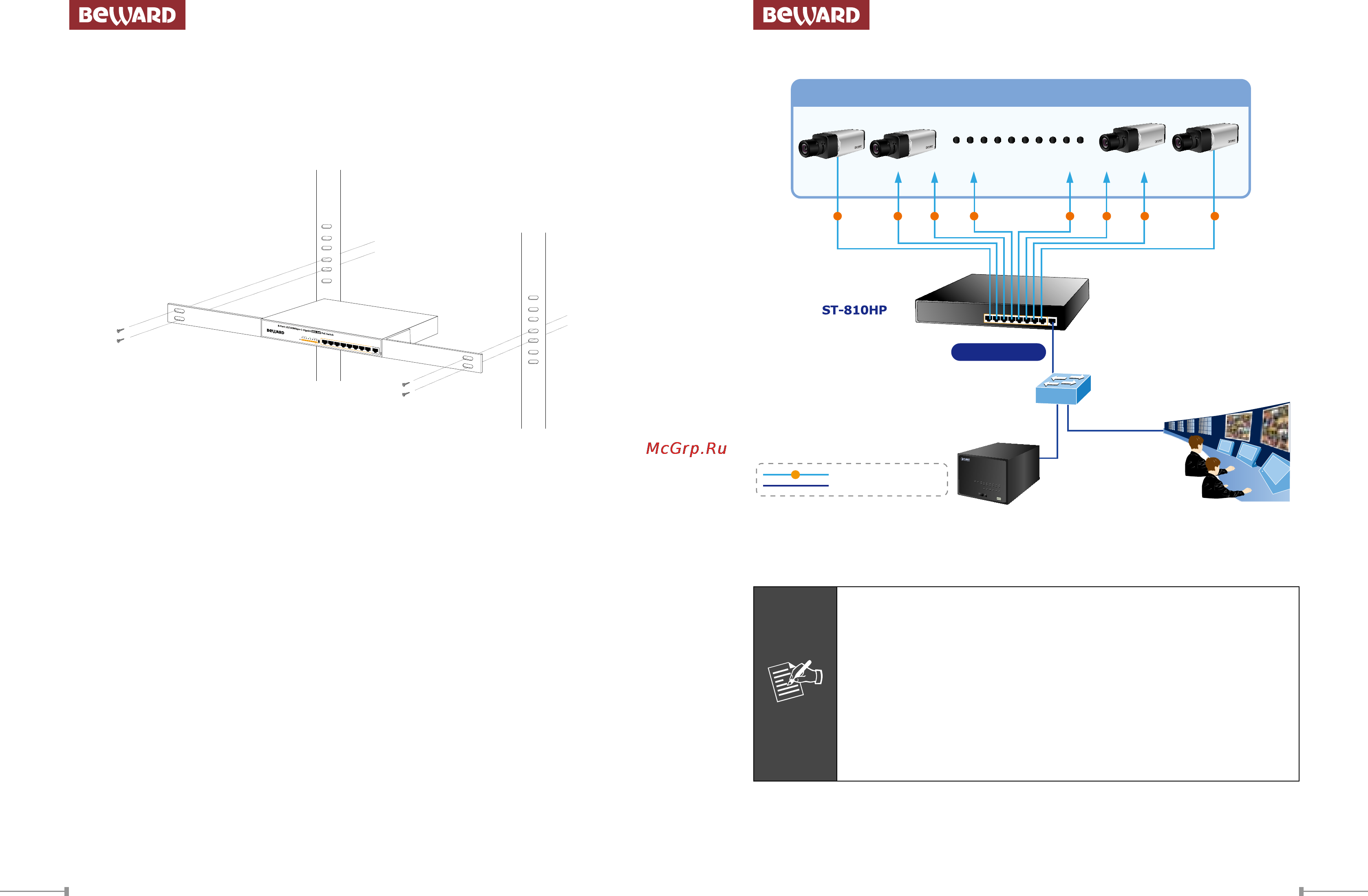

Figure 2-7: Mounting the PoE Ethernet Switch in a Rack
Step 6: Proceeds with Step 4 and Step 5 of session 2.3 Desktop Installation
to connect the network cabling and supply power to your PoE Ethernet
Switch.
2.5 Product Application
2.5.1 802.3af PoE IP Surveillance in Public Transportation
Providing up to eight 802.3af / 802.3at PoE, in-line power interfaces and 1 Gigabit
TP interface, the PoE Ethernet Switch can easily build a power centrally controlled
IP Camera system for the enterprises. It can work with 8-Channel NVR and
surveillance software to perform comprehensive security monitoring. For instance,
one PoE Ethernet Switch can combine with one 8-Channel NVR; that is, each of
its PoE port can link to a specic 802.3af PoE IP camera for the administrators to
centrally and efciently manage the surveillance system in one site. The 1 Gigabit
TP interface in the PoE Ethernet Switch also provides Gigabit TP connection for
uplink to public server groups.
8 PoE IP Cameras
PoE PoE PoE PoE PoE PoE PoE PoE
Perfect Combination 8-Port PoE Switch + 8-Ch NVR
Gigabit Switch
PoE
100Base-TX UTP with PoE
1000Base-T UTP
8 Channel NVR
Monitoring Center
Gigabit Uplink
Figure 2-8: 802.3af IP Surveillance with NVR Connection
Note
Cable distance for switch
The cable distance between the PoE Ethernet Switch and other
network equipment should not exceed 100 meters for UTP/STP
cable.
Make sure the wiring is correct
It can use Category 3/4/5 cable in 10Mbps operation. To reliably
operate your network at 100Mbps or 1000Mbps, you must use an
Unshielded Twisted-Pair (UTP) Category 5/5e/6 cable, or better
Data Grade cabling. While a Category 3 or 4 cable may initially
seem to work, it will soon cause data loss.
