SC743 Chassis Manual
C-4
C-4 Front Connectors and Jumpers

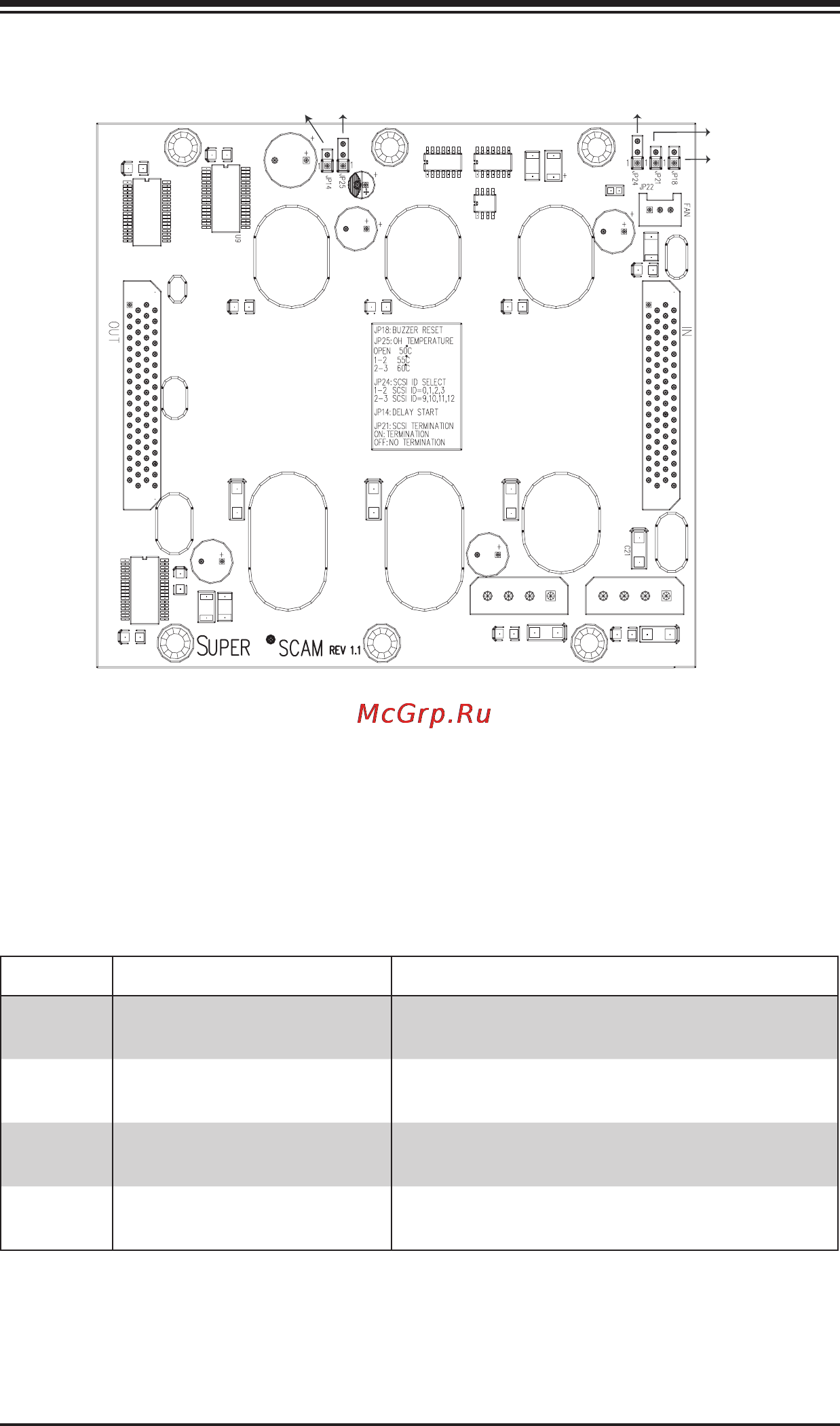

Figure C-1. Mobile Rack Backplane (Front)
Jumper Settings
Jumper settings for the CSE-M34S (SCSI)
JP18
JP21
JP24
JP14
JP25
Jumper Description Setting
JP14 Delay start Closed: Enable
Open Disable (default)
JP18 Bumper Reset Closed: Enable
Open Disable (default)
JP21 SCSI Termination Closed: Enable
Open Disable (default)
JP24 SCSI ID Selection 1-2: SCSI IDs: 0, 1, 2, 3, 4, (default)
2-3: SCSI IDs: 9,10,11,12,13
