SC743 Chassis Manual

D-20

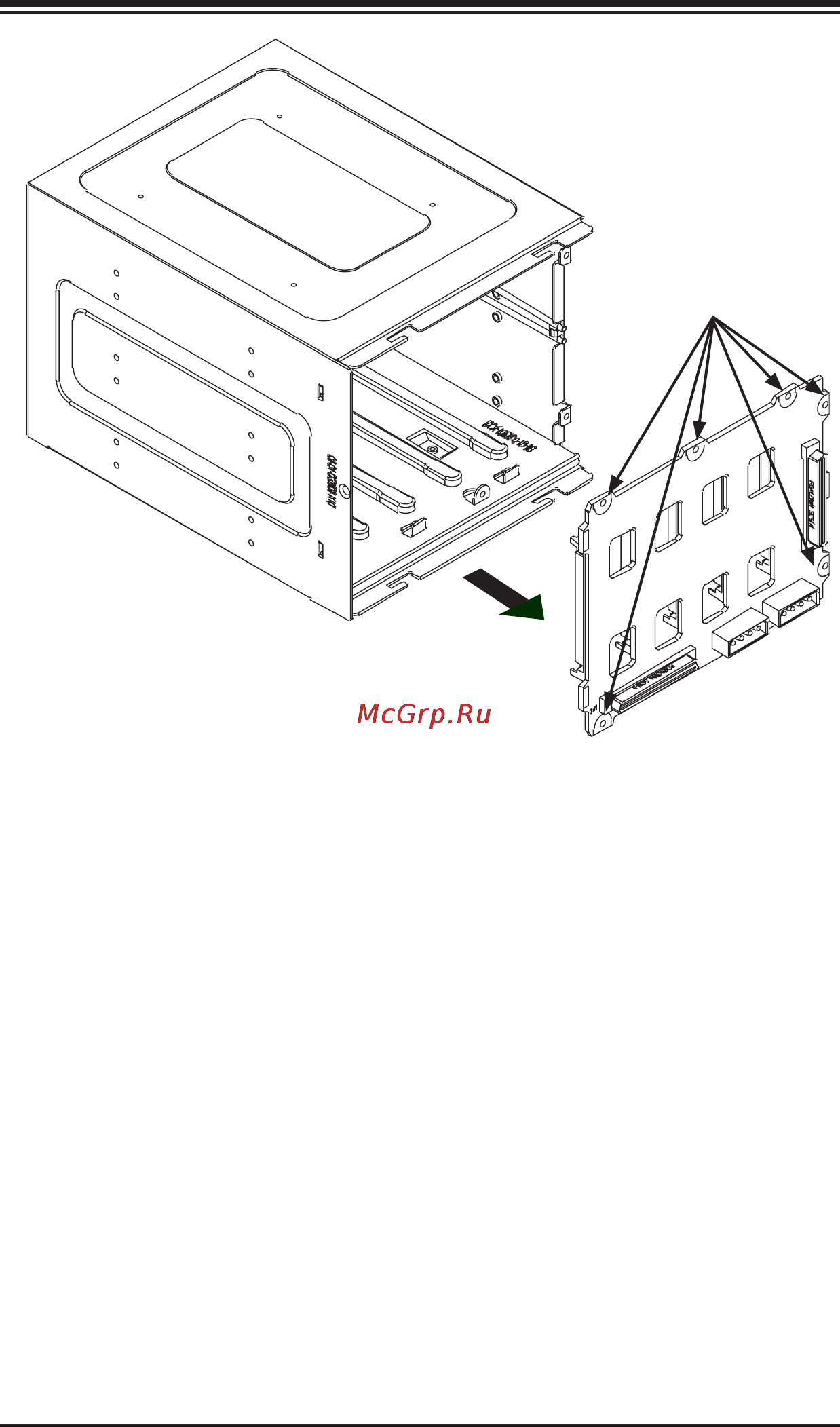

Figure D-14: Removing Mobile Rack Backplane (Optional)

Additional Optional Installation Information

If necessary, before reassembling the mobile rack, the backplane may be removed.

To remove the mobile rack backplane, remove the six screws securing the back-

plane, and carefully pull the backplane from the rear of the mobile rack.

Backplane Screw

Locations
