Supermicro CSE-743TQ-865 [81/104] Connecting cables to the mobile rack

D-17

Appendix D: M35TQ Mobile Rack Specications

Connecting Cables to the Mobile Rack

Before connecting cables the mobile rack, the exhaust fan must be removed. In

some circumstances, the backplane may need to be removed.

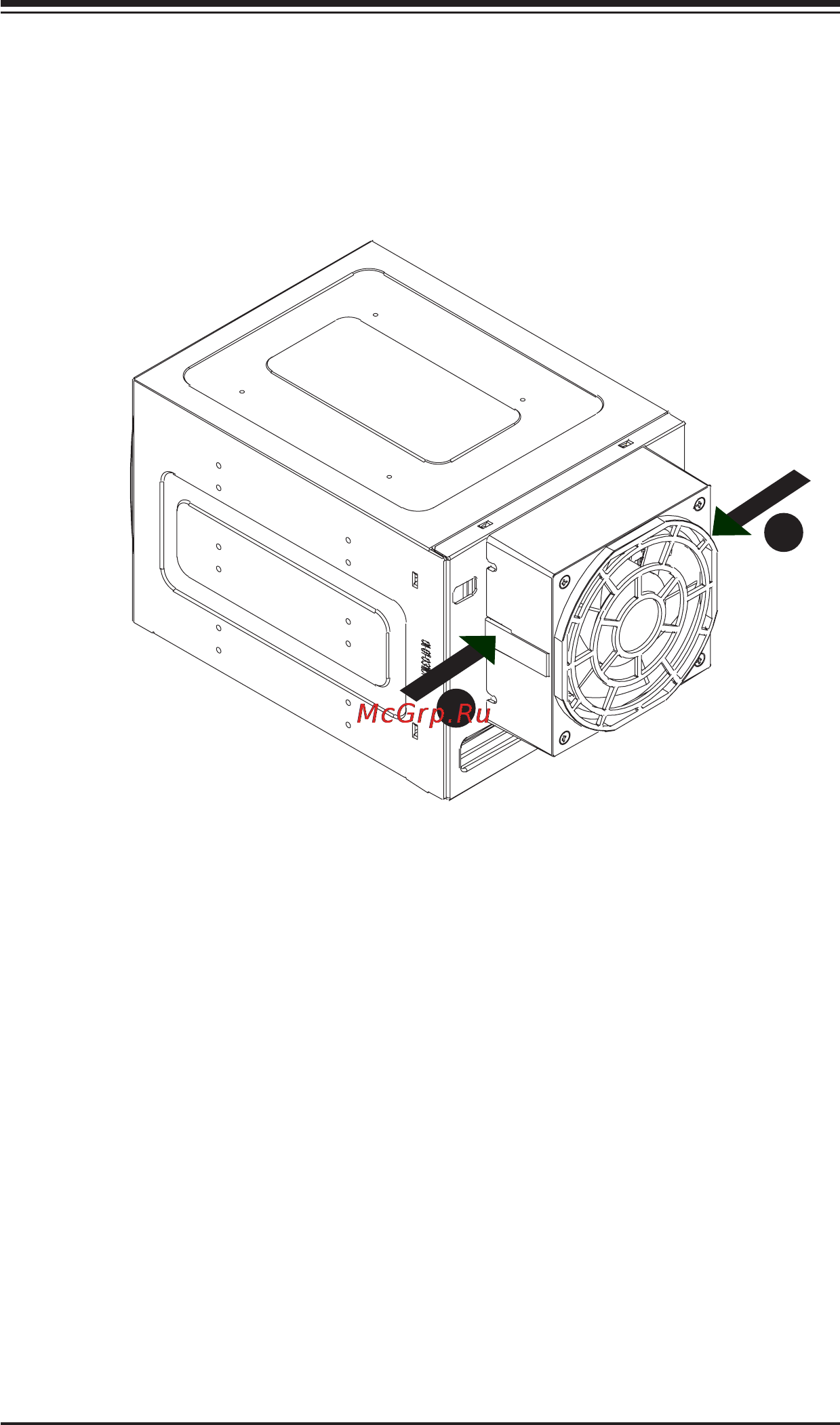

Figure D-11: Removing Mobile Rack Fan

Removing the Exhaust Fan and Connecting SAS/SATA Cables

Simultaneously press inward on the tabs on each side of the fan housing.1.
