4-42
X10DRL-i Motherboard User’s Manual

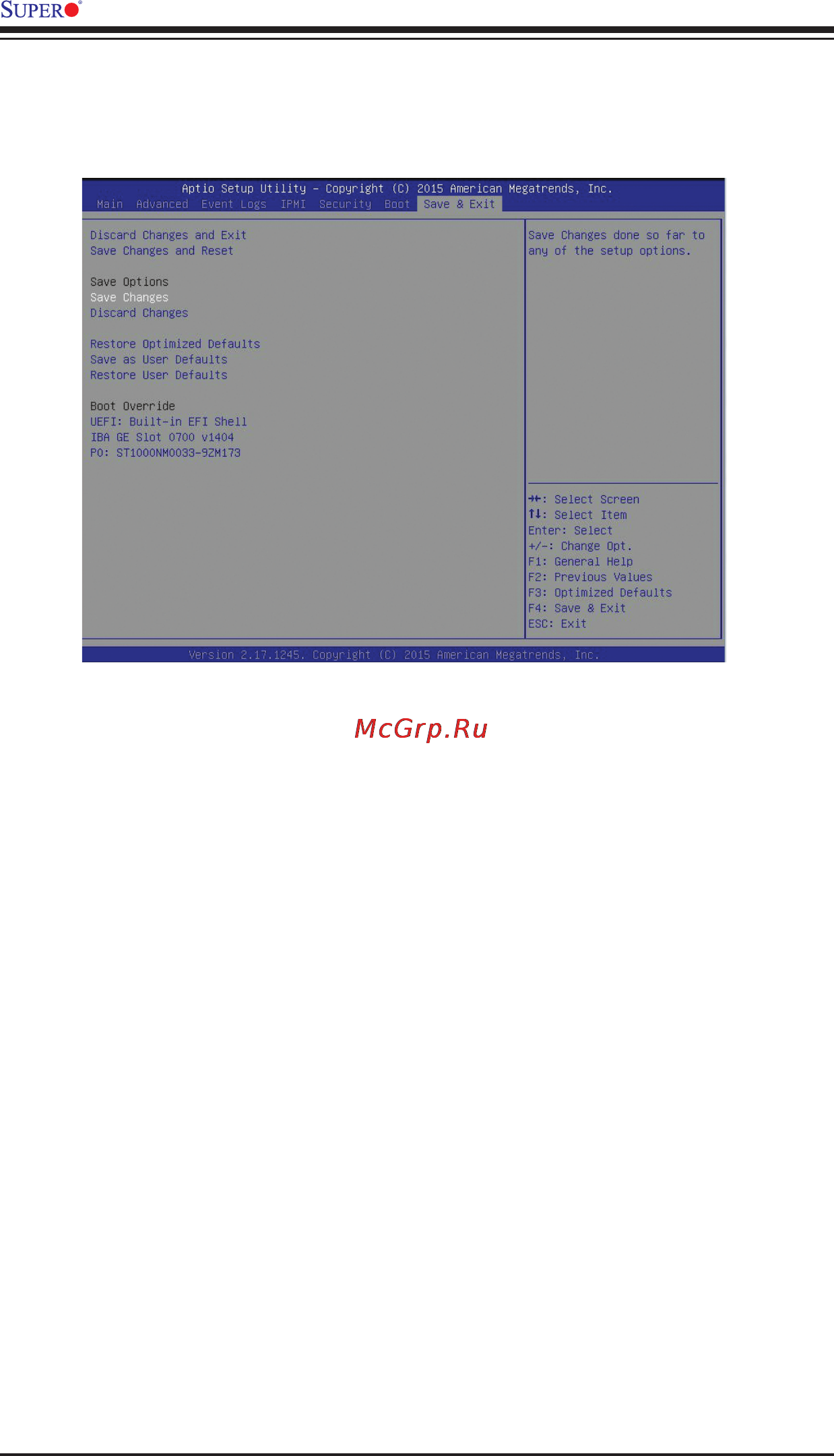

4-8 Save & Exit
Select the Save & Exit tab from the BIOS setup screen to congure the settings
below.
Discard Changes and Exit
Select this option to quit the BIOS setup without making any permanent changes
to the system conguration, and reboot the computer. Select Discard Changes and
Exit from the Exit menu and press <Enter>.
Save Changes and Reset
When you have completed the system conguration changes, select this option to
leave the BIOS setup utility and reboot the computer for the new system congura-
tion parameters to take effect. Select Save Changes and Exit from the Exit menu
and press <Enter>.
Save Options
Save Changes
When you have completed the system conguration changes, select this option to
save all changes made. This will not reset (reboot) the system.
Discard Changes
Select this option and press <Enter> to discard all the changes and return to the
AMI BIOS Utility Program.
