Installation
334984C 11
Locate and Mount the PR70f
1. Locate a bench top or open floor area to mechani-
cally mount the PR70f. Ensure that the location has
access to compressed air and AC power and is well
ventilated.
2. Place the machine at the designated location. Allow
the machine to rest on the rubber feet provided.
3. Turn the shield locking screws clockwise on both
sides to remove the PR70f protective shield.
4. Attach the PR70fframe to the selected location by
installing fasteners (not provided with the unit)
through the four mounting holes. Refer to Figure 5
below.
Make Connections
1. Connect a compressed air line to the air inlet at the
back of the machine. Refer to Figure 1 on page 7 for
the location of the air inlet.
2. Using the power cord provided, connect AC power
(100-240V, 50/60 HZ, single phase) to the machine.
Flush the System
The PR70f is tested at the factory with mineral oil. Flush
the machine before first use.
NOTE: Do not load material into the tanks until the sys-
tem has been flushed.

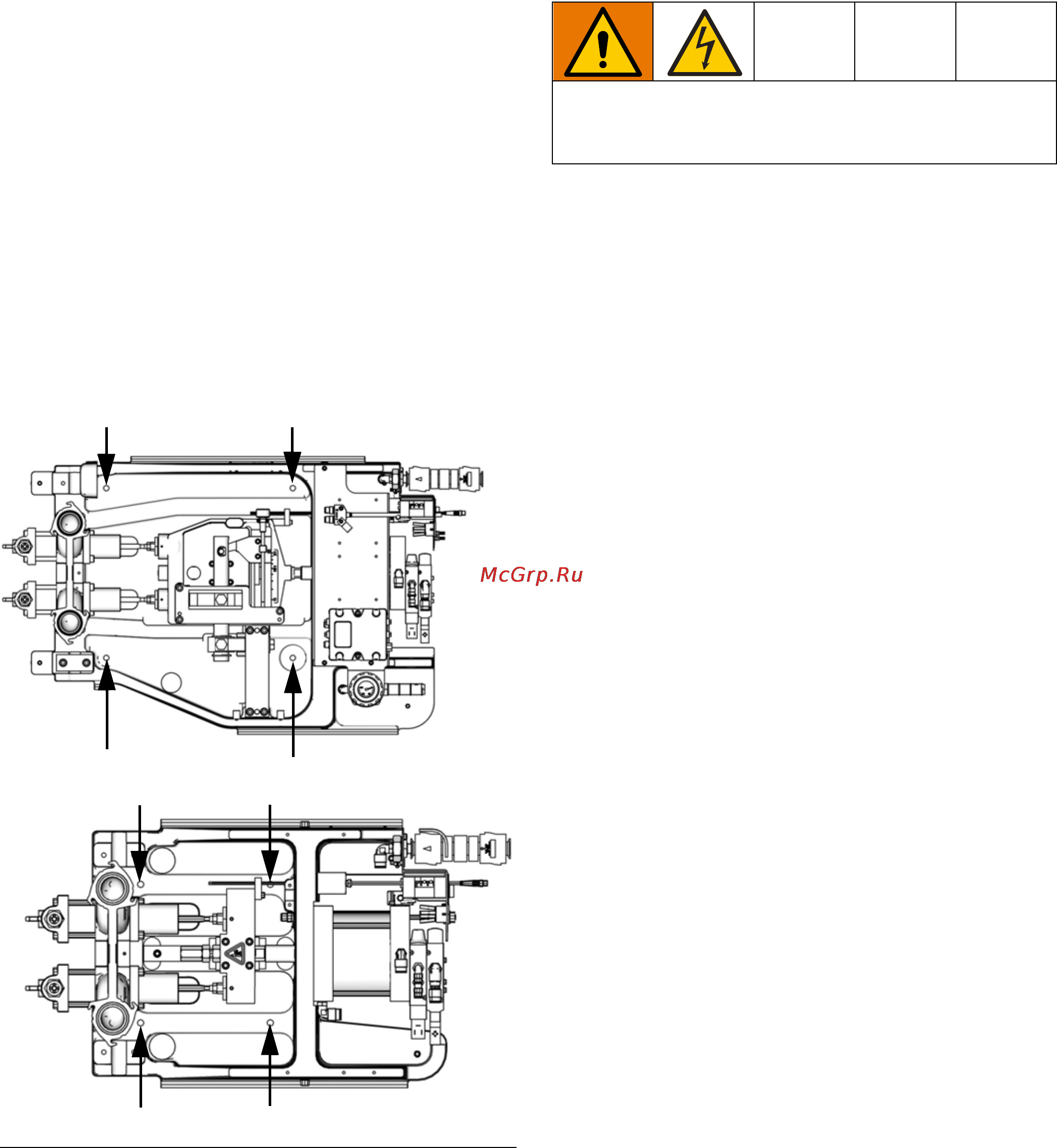

FIG. 5: Mounting Holes
Variable Ratio
Fixed Ratio
ti12712a
ti12713a
All electrical wiring must be done by a qualified elec-
trician and comply with all local codes and regula-
tions.
