Edit Functions Setup
NOTE: A shot recipe is a combination of a shot amount
and a shot rate for a specific shot selected.
The Edit setup screens provide settings for the shot rec-
ipes and a sequence of shot recipe details. Edit screens
1 and 2 are used to define the 50 possible shot recipes
and screens 3-6 are used to define sequences A
through G.
Shot Definition
At the Home screen, press to access Setup mode.
Use the directional keypad to navigate to Edit screen 1
or 2.
1. Enter the screen by pressing the key.
2. Use the directional keypad to navigate to the shot
amount or shot rate you want to edit.
3. Enter a new shot amount and/or shot rate in the
appropriate column using the numeric keypad.
4. Press
to accept each change.
NOTE: If the shot amount entered is too small or the
shot rate entered is too fast, the ADM emits three beeps
and the smallest or fastest (respectively) values allowed
are displayed to accept or change.
5. Repeat steps 2-4 for any additional shot numbers
that need to be edited.
6. Press to exit the screen when finished.
Sequence Definition and Mode Description
There is an option in Sequence mode to allow the PR70f
to automatically perform all of the shots in a sequence
with a preset delay between shots. This process is
called auto-sequencing.
The pause duration between shots for auto-sequencing
is configurable at Edit screens 3-6.
1. Use the directional keypad to navigate to Edit
screen 3-6 depending on which sequence you want
to edit.
2. Enter the screen by pressing the key.
3. Use the directional keypad to navigate to the corre-
sponding Auto check box for the sequence you are
going to edit.
4. Select it by pressing .
5. Use the directional keypad to move to the shot num-
ber of the sequence position (row) you want to edit.
6. Select it by pressing , then select a predefined
shot number (with a non-zero amount) using the up
and down arrow keys ( , ).
NOTE: Only valid shot recipes defined in Edit screen 1
and 2 with a shot amount and shot rate can be selected.
7. Once the correct shot number has been found,
press to accept the change.
8. To add this shot to the auto-sequencing, move to
the pause duration column for that shot and enter a
duration (in seconds) using the numeric keypad.
9. Press to accept the change.

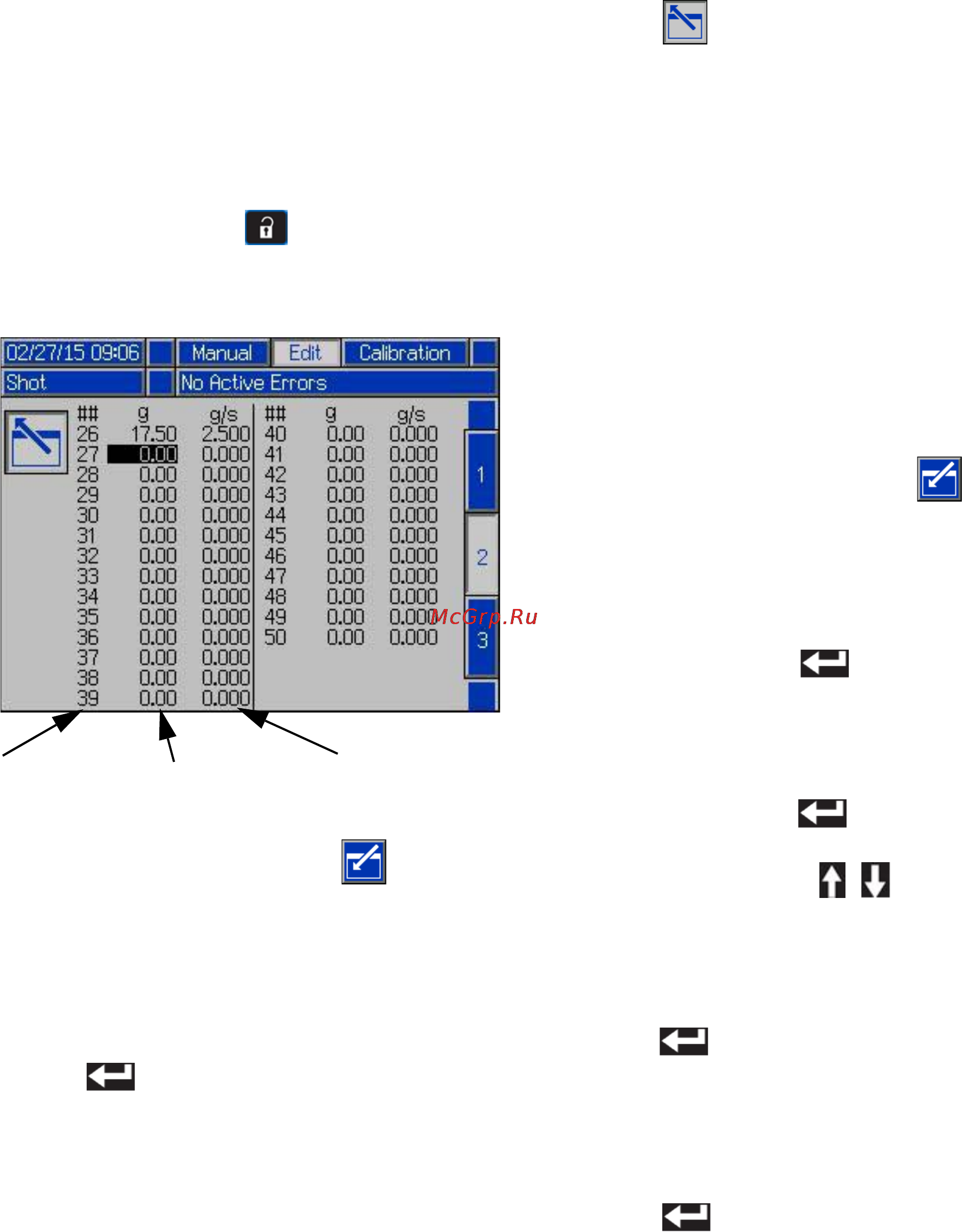

Shot Number
Shot Rate
Shot Amount
