Graco PR70f [12/84] Startup

Startup

12 334984C

Startup

1. Locate the power switch at the rear of the machine

and turn the power on. Refer to Figure 1 on page 7.

The display module will automatically turn on and

begin to load.

2. With the air line connected to the machine, slide up

the system air pressure relief switch (see Figure 1).

It is the yellow tab on the air inlet at the rear of the

machine. The hole in the tab should not be showing.

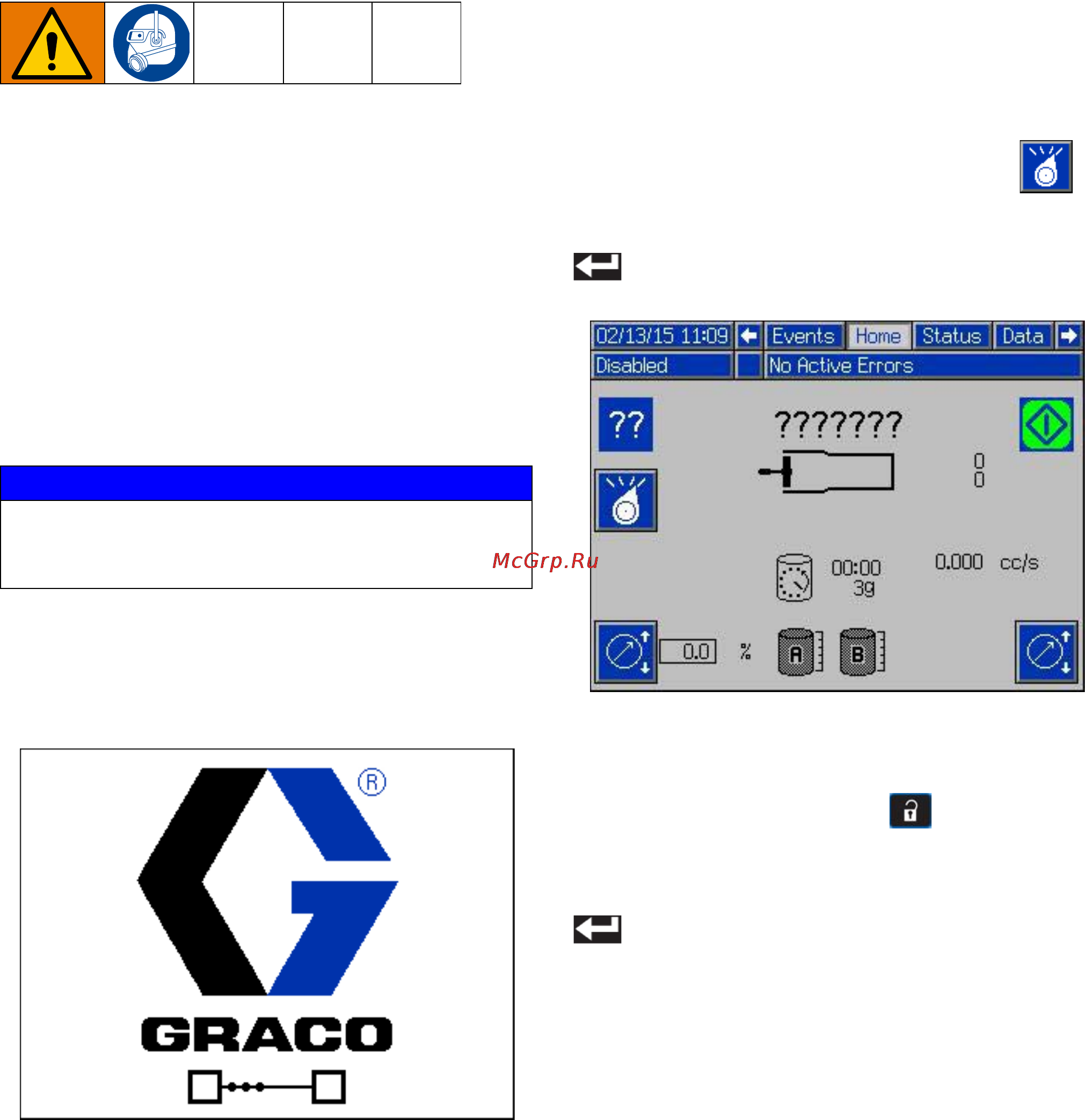

Using the Advanced Display

Module

When the main electrical power is turned on, the Graco

splash screen will be displayed on the ADM until com-

munication and initialization is complete.

The ADM will operate in any mode other than Disabled

(shown below). Press the Mode Select soft key to

change to another operating mode. Once you have

selected the desired mode, press the ADM’s Enter key

to accept it.

There are two types of screens on the ADM: Run and

Setup screens. The ADM starts in the Run screens. To

access the Setup screens, press . If the password

feature is enabled, you need to enter the password

when prompted to access the Setup screens. Use the

numeric keypad to enter the password, then press

Refer to the Figure 6 on page 13 for an illustration of the

available screens.

NOTICE

To prevent damage to soft key buttons, do not press

the buttons with sharp objects such as pens, plastic

cards, or fingernails.
