Specifications
312497A 17
Specifications
MJ Series

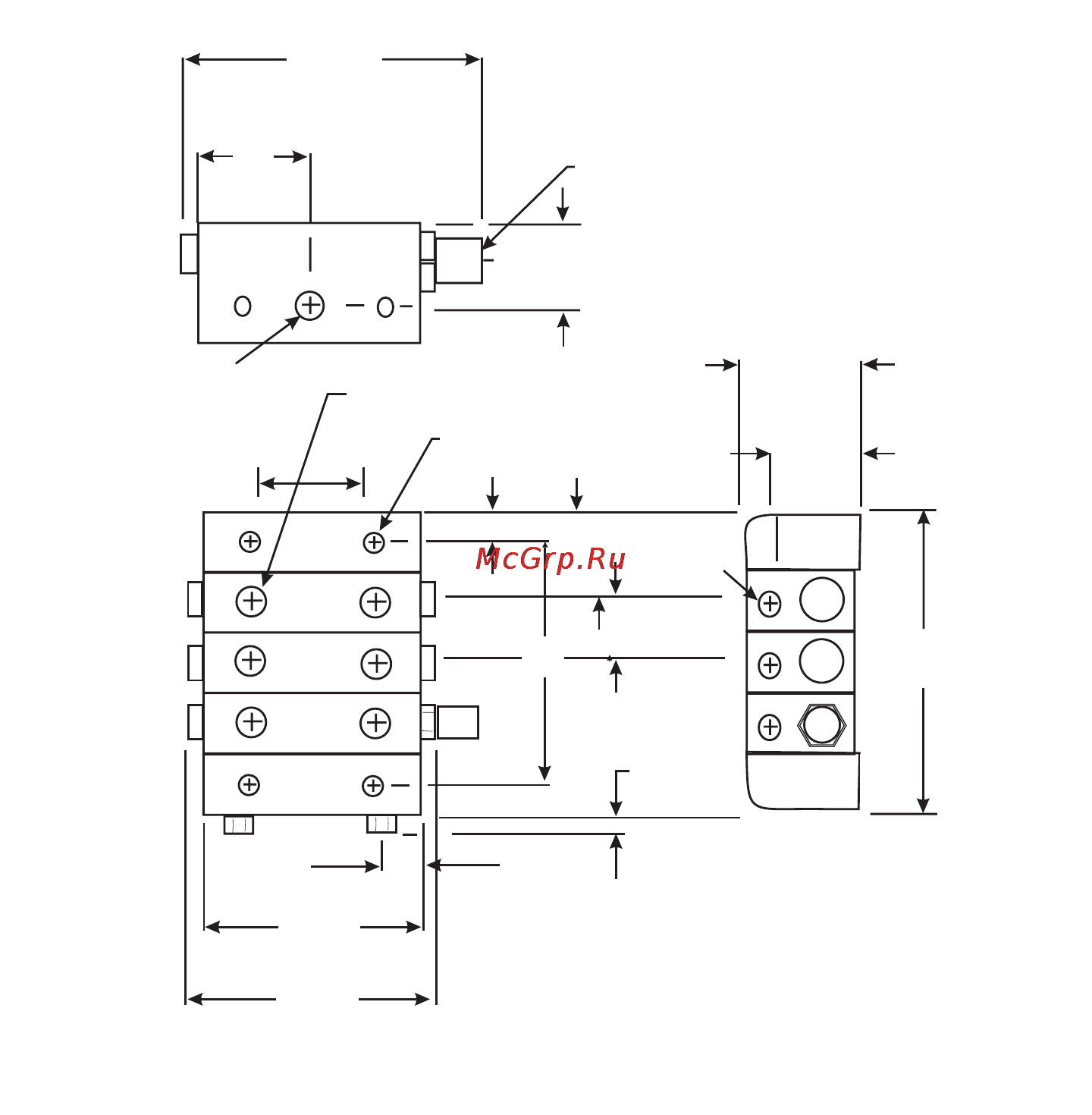

Dimensions
Technical Data
3.23
(82.2)
1.06
(26.9)
.750
(19.0)
CYCLE INDICATOR PIN (OPTIONAL)
LUBE INLET
INDICATOR OUTLET
.750
(19.0)
1.37
(34.9)
1.09
(27.7)
4 MTG. HOLES
.270 (6.8)
.858
(21.79)
LUBE
OUTLET
B
.250
(6.3)
.582 TYPICAL
(14.7)
2.54
(64.5)
2.12
(53.9)
.687
(17.4)
A
ti11474
Material Plated or Stainless Steel
Pressure (max) 2,000 psi (138 bar)
Lubricant Oil or grease up to NLGI Grade 1
Maximum Operating Temperature 200°F (93°C)
Maximum Cycle Rate With Cycle Pin 60 CPM
Net Weight (approx.)
3 section divider valve assembly 1-lb. 15 oz (0.88 kg)
4 section divider valve assembly 2 lbs. 5 oz (1.04 kg)
5 section divider valve assembly 2 lbs. 11 oz (1.21 kg)
6 section divider valve assembly 3 lbs. 1 oz (1.38 kg)
7 section divider valve assembly 3 lbs. 7 oz (1.55 kg)
8 section divider valve assembly 3 lbs. 13 oz (1.72 kg)
Torque Ratings
Tie Rod Nut 12 ft. lbs
Enclosure Plug 11-13 ft. lbs
Outlet Port Plugs 6-7 ft. lbs.
