3. Filling Master Divider Valve

Refer to FIG. 5. when performing this procedure. 1. Verify that all port plugs or performance indicators have

been removed from all indicator ports in the master

divider valve.

2. Verify that the system pump is properly connected to the

inlet port of the master divider valve.

3. Cycle the system pump sufficiently to fill the main feeder

line between the pump and the master divider valve and

the lubricant is observed being discharged from all of the

indicator ports on the front of the master divider valve with

no evidence of included air.

4. Reinstall the master divider valve port plugs or

performance indicators into their respective positions.

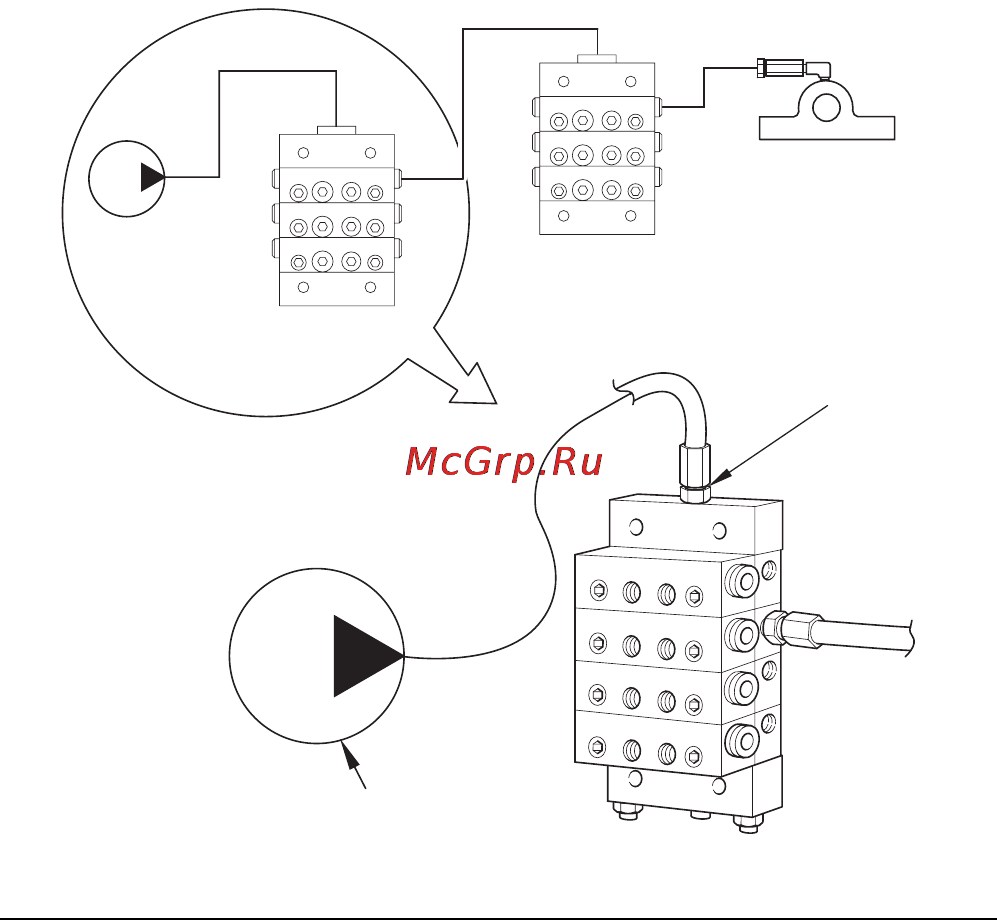

FIG. 5

TI11000

MASTER

BLEED

SECONDARY

LUBE POINT

HERE

CYCLE PUMP
