Repair
312497A 7
Section 2: Purging Air from Master to Secondary Divider Valve Lube Lines
Steps 1- 9, refer to FIG. 7.
1. Install the lines from the master divider valve to the sec-
ondary divider valve, but do not completely tighten the
connection at the secondary divider valve’s inlet.
2. Remove the performance indicator port plug or the
performance indicator from the working valve section on
the master divider valve assembly corresponding to the
outlet port and the line connected to the secondary valve.
3. Attach a hand pump filled with clean, filtered lubricant on
the master divider valve that was opened in Step 2.
4. Operate the hand pump until air-free lubricant is observed
flowing freely from the secondary valve’s lube inlet
connector.
5. Tighten the fitting at the secondary valve’s inlet while
lubricant is still flowing.
6. Remove all of the indicators or indicator port plugs from
the secondary divider valve’s working sections.
7. Operate the hand pump again until air-free lubricant is
observed flowing out of all the secondary divider valve’s
indicator ports.
8. Reinstall all of the performance indicators or port plugs in
the secondary divider valve while lubricant is still flowing
from the ports.
9. Remove the hand pump and reinstall the performance
indicator or indicator plug removed in Step 2 into the
master divider working valve’s open port.
The system is now ready for operation.

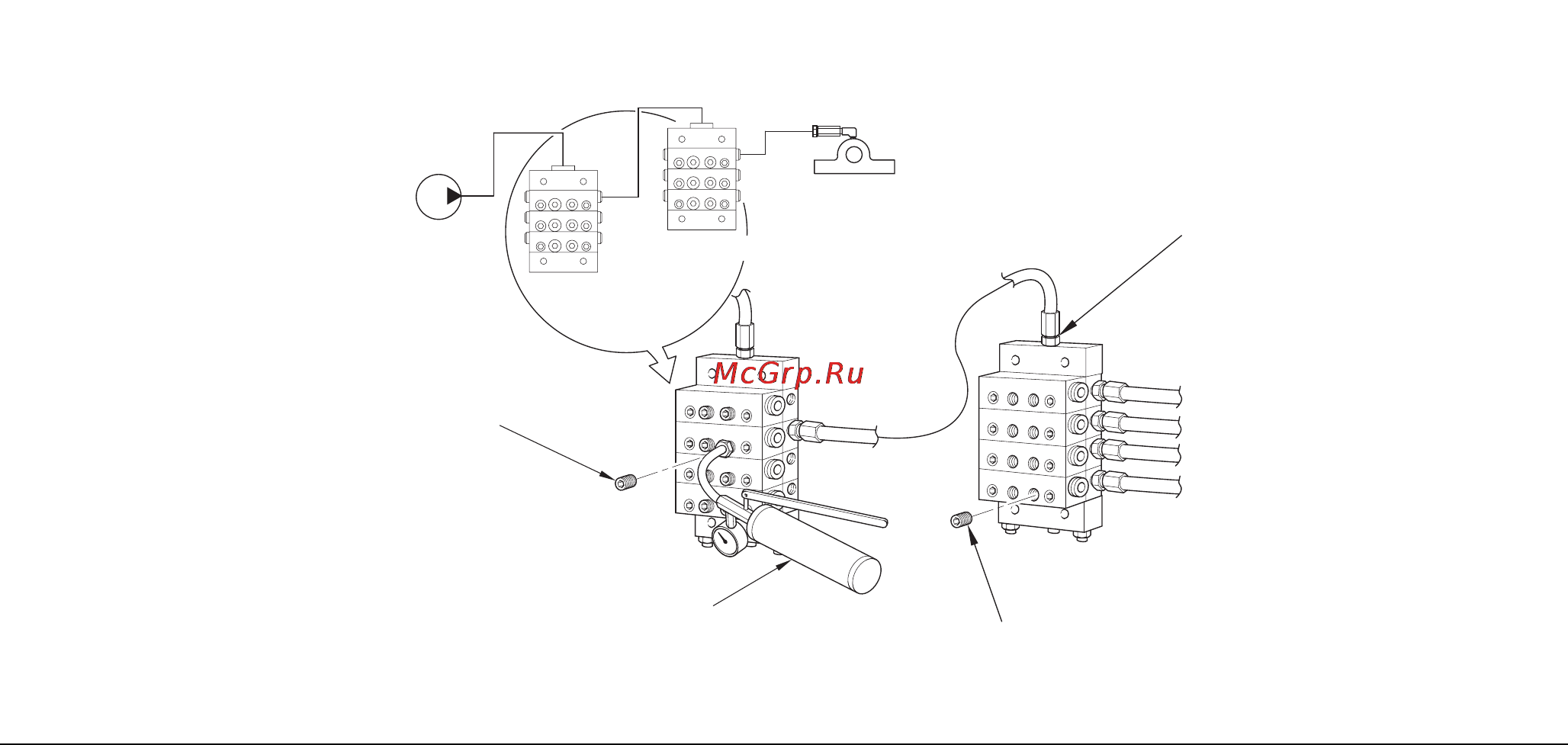

FIG. 7
TI11113
MASTER
HAND PUMP
REMOVE INDICATOR
OR PORT PLUG
SECONDARY
LUBE POINT
BLEED HERE
FIRST
AFTER BLEEDING INLET,
REMOVE ALL INDICATORS
OR PORT PLUGS AND BLEED
ALL PORTS
