Repair
8 312497A
Section 3: Purging Air from Pump to Master Divider Valve Lines
Steps 1-3, refer to FIG. 8.
1. Install the line from the system pump to the master divider
valve, but do not completely tighten the connection at the
master valve’s lube inlet.
2. Cycle the system pump until air-free lubricant is observed
flowing from the line at the master divider valve’s lube
inlet.
3. Tighten the fitting at the lube inlet port while lubricant is
still flowing.
The system is now ready for operation.

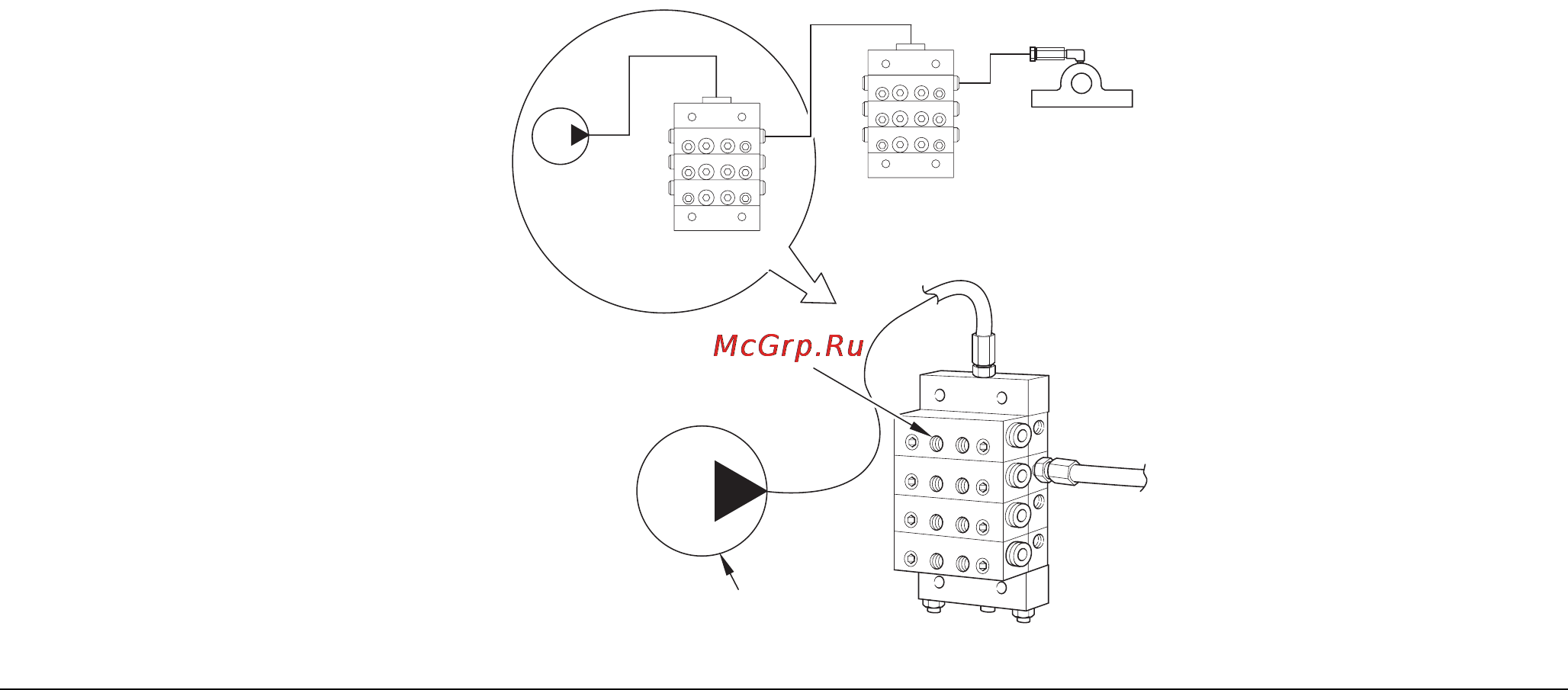

FIG. 8
TI11114
BLEED THROUGH
SECONDARY
MASTER
ALL PORTS
SYSTEM PUMP
LUBE POINT
