7 Edit Page

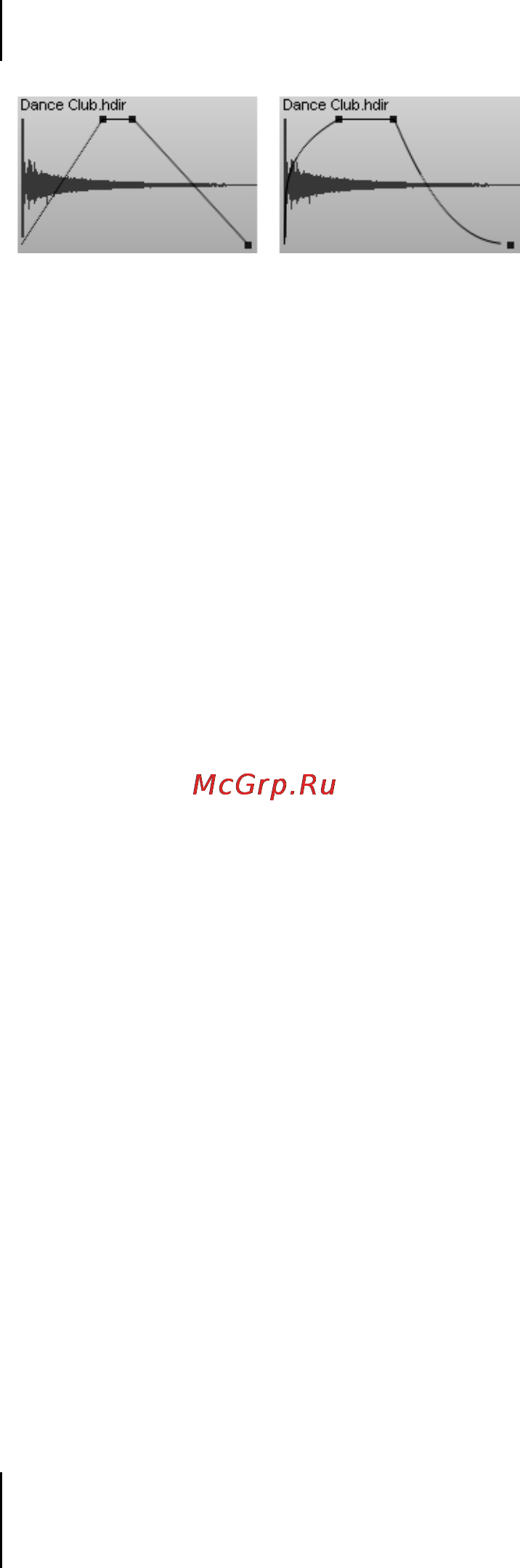

[W2_Slopes

Boundless variety: You can sculpt Attack and Decay slopes to shape reverb

curves to taste.

Delay

The Delay menu tab affords you access to the integrated Surround Delay.

Located pre reverb in the signal chain, it can generate additional reﬂec-

tions, echoes and complex rhythmic patterns.

The display shows the delay routing, as well as the basic parameters Paral-

lel/Serial, Pattern, BPM, Tempo and Sync. The Sync, Pattern and Tempo pa-

rameters are indicated only if they are in fact required; the remaining pa-

rameters are always accessible. The Parallel/Serial button lets you select be-

tween two delay algorithms:

❖ Parallel: The ﬁve delays have ﬁxed assignments to the L, C, R, Ls and Rs

channels. This allocation corresponds to the input signal fed to the de-

lay as well as the positioning in the Surround panorama. The ﬁve delays

work independently and each is equipped with a discrete feedback cir-

cuit.

Example: A signal patched into the front left of the panel is delayed and

sent back to the front left and into the reverb, with feedback if desired. To

ensure that the signal of a mono source with a ﬁxed assignment—for ex-

ample, a vocal track assigned to the center channel—is not routed to

merely a single delay, you can distribute the signal to the other delays via

Divergence. The parallel delay is the best choice for generating single reﬂec-

tions on the ﬁve Surround channels.

❖ Serial: The ﬁve delays are conﬁgured in series, that is, the ﬁrst delay’s

output routes the signal to the second delay’s input, and so forth. The

chain’s sequence is determined using a Pattern. The delays are assigned

to the L, C, R, Ls and Rs channels, via which signals are sent and re-
