M-Audio WizooVerb W5 [60/158] Side chain input
![M-Audio WizooVerb W5 [60/158] Side chain input](/views2/1019671/page60/bg3c.png)
60
7 Edit Page

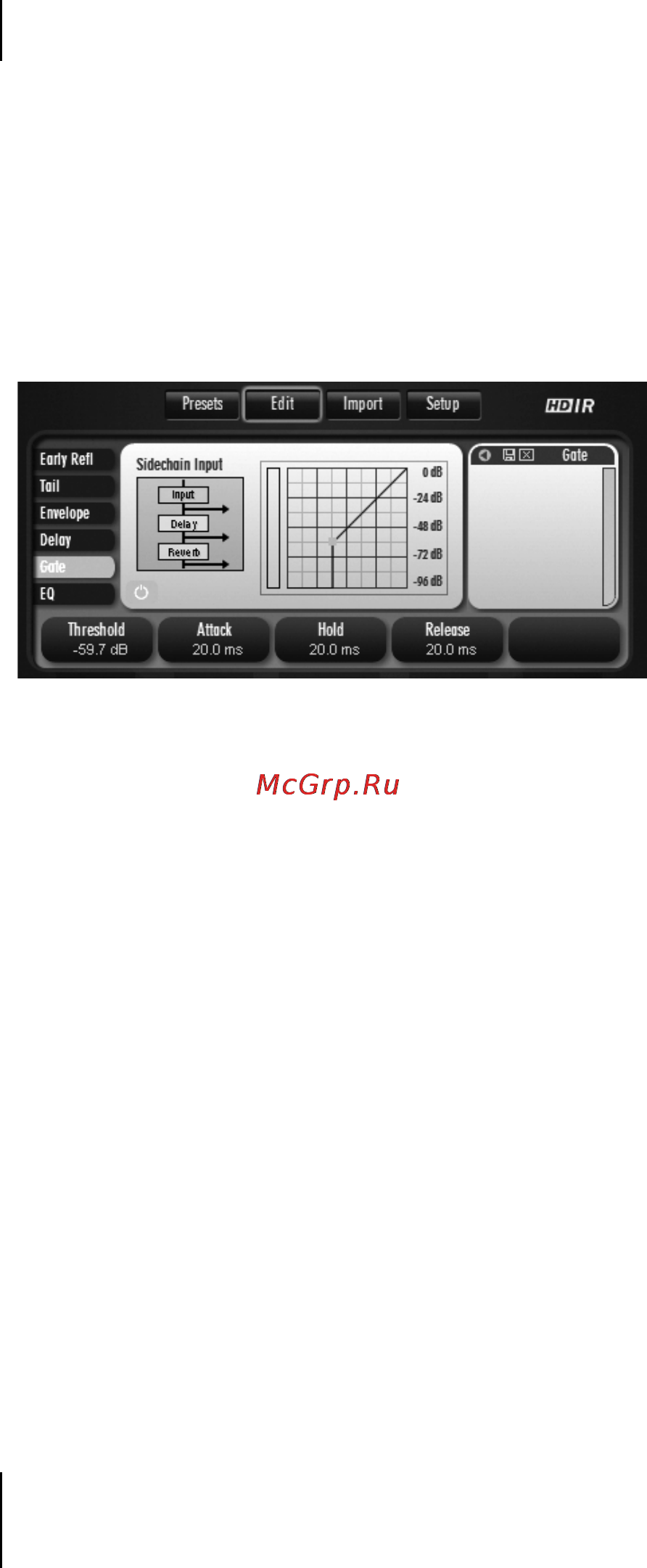

You can see displayed on the panel the selector for the side chain input, a
VU meter that gives you a read-out of the side chain signal, and a graphical
view for adjusting the threshold.
At the right edge of the display you can see a macro list that lets load pre-
programmed gate configurations and store your own settings.
In order to quit the Gate panel, simply click another menu tab.
You can also set the threshold directly via the gate display node.
Side Chain Input
Select the desired side chain signal directly in the display. Mouse-click an
entry; the green background indicates that it is selected. Your choices com-
prise input, delay and reverb signals.
Threshold
Here is where you set the threshold values at which the gate opens and
closes.
Attack
Use attack to determine the amount of time it takes for the gate to open
once the signal exceeds the threshold level.
wizooverbW5 en und de.book Page 60 Monday, May 30, 2005 10:59 PM
