V2403 Series Linux Software System Recovery
5-10

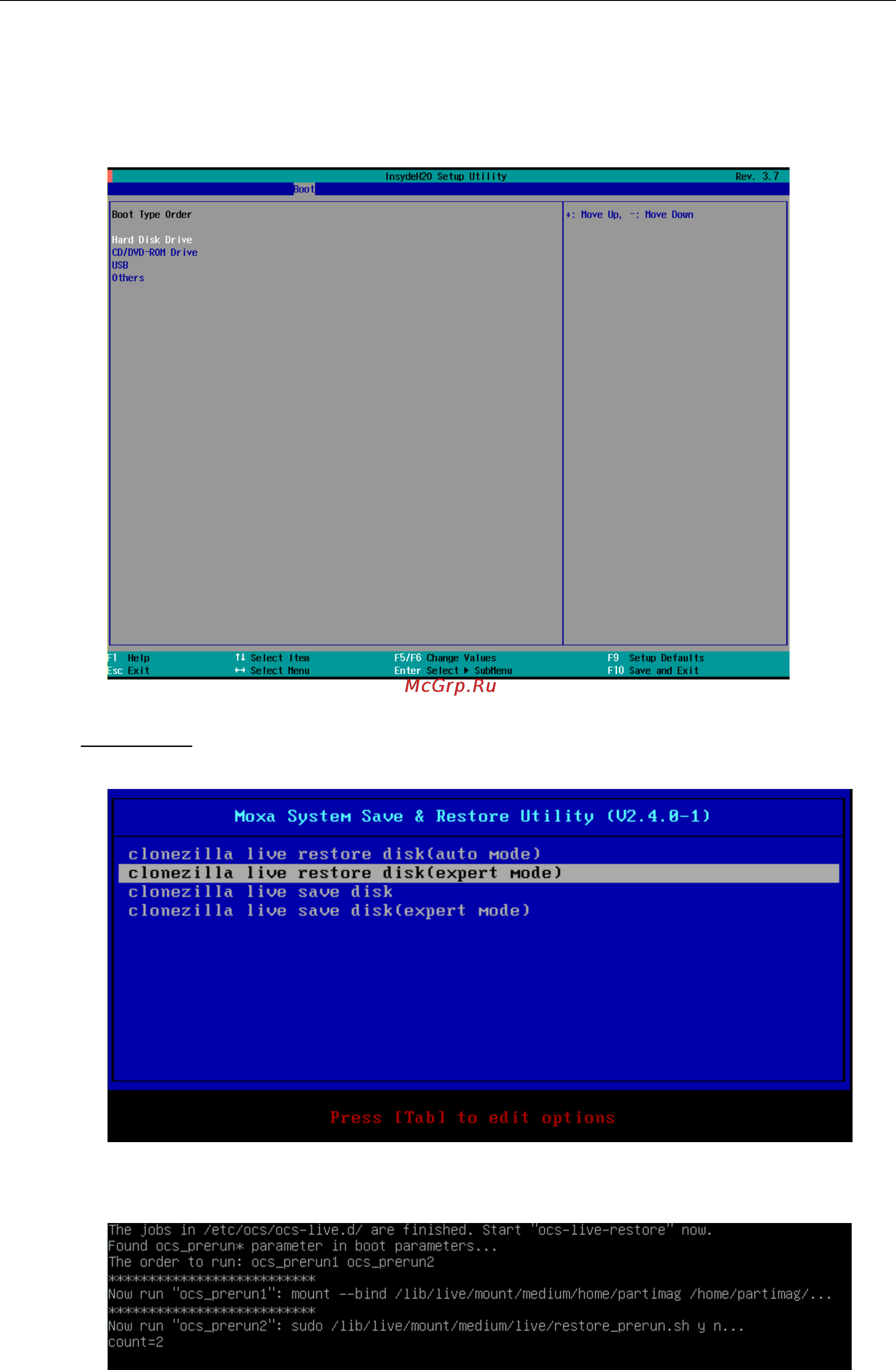

Step 4: Change the BIOS Settings to Boot from the Original Disk
Now you will need to change the boot priority so that it can boot from the original disk. As the system reboots,
press F2 to enter the BIOS setup menu.
1. Select Hard Disk Drive and then press + to move to the first boot device position, and then press Enter.
Make sure the hard disk has first boot priority.
2. Press F10 and then press Enter to save and exit BIOS settings.
Expert mode:
1. Select clonezilla live restore disk(expert mode).
2. Wait for the USB drive boot process to finish.
A number of storage areas will be shown for you to confirm; press Enter to continue the restore process.
