V2403 Series Linux Software System Recovery
5-11

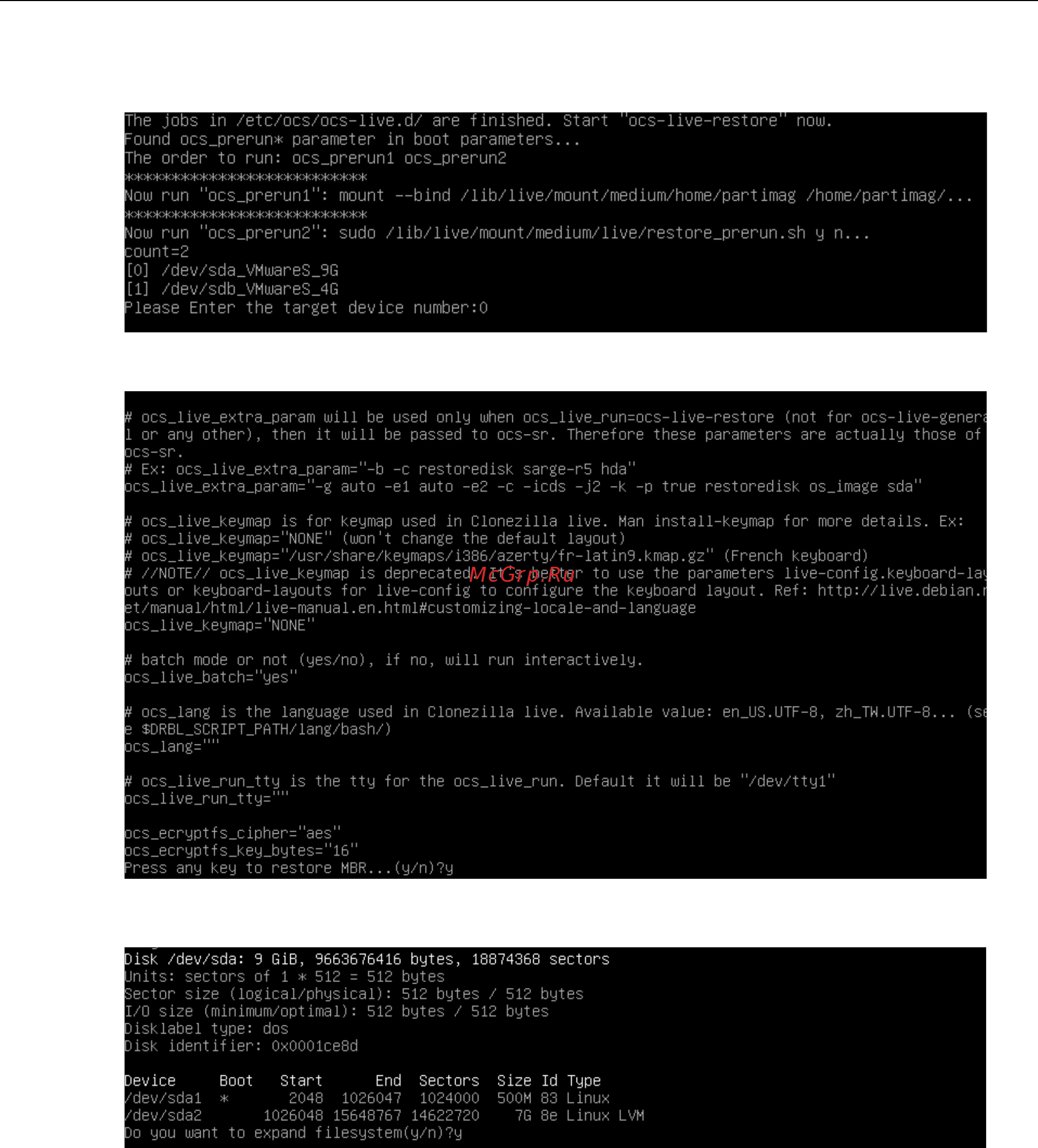

3. Choose which storage area you want to restore.
If your device only has one storage area, this step will be skipped.
4. If you want to restore MBR(Master Boot Record), press y to continue the restore process.
5. If you want to expand the file system (modify the partition table), press y to continue the restore process.
