DA-681 Series Embedded Computer Hardware Installation
2-2
Placement Options
Desktop
Place your DA-681 on a clean, flat, well-ventilated desktop. For better ventilation, leave some space between
the DA-681 and other equipment. Do not place equipment or objects on top of the DA-681, as this might
damage the computer’s internal components.

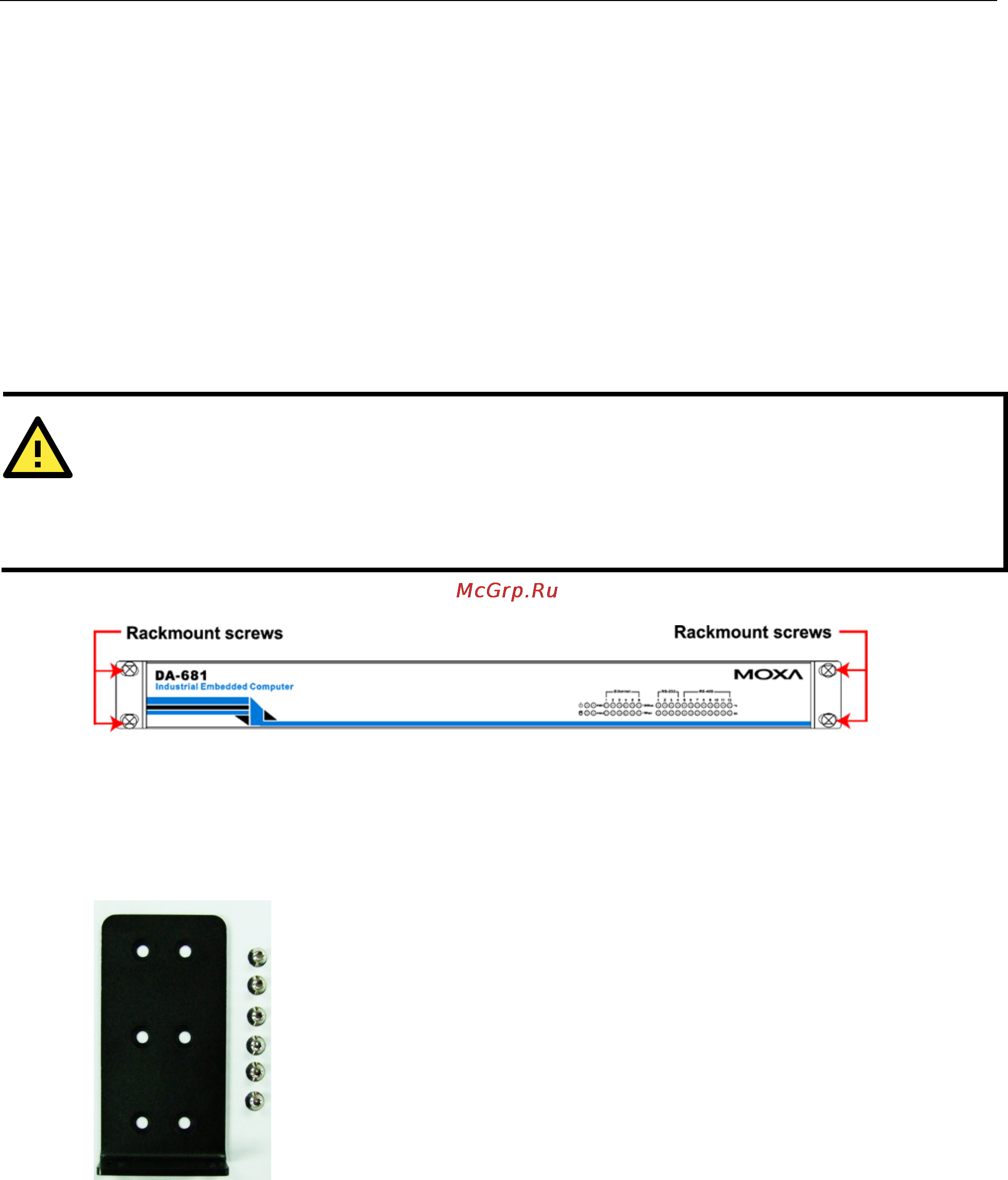

Rack mounting
The DA-681 has rackmount supports for installing the embedded computer on a standard rack.
ATTENTIONS
For maximum safety, a
t least two persons should work together to lift, place, and attach the embedded
computer to
the rack.
Before you lift or move the embedded computer, make sure that the embedded computer
is turned off
and the
power to the
rack system is turned off.
Four rackmount screws are required to attach the DA-681 to a standard rack.
Follow these steps to install the DA-681 on a rack.
Step 1: Installing the rackmount supports.
Take the rackmount supports out of the packages. There are two rackmount ears and 12 screws. Each ear
requires 6 screws to attach to the rack.
