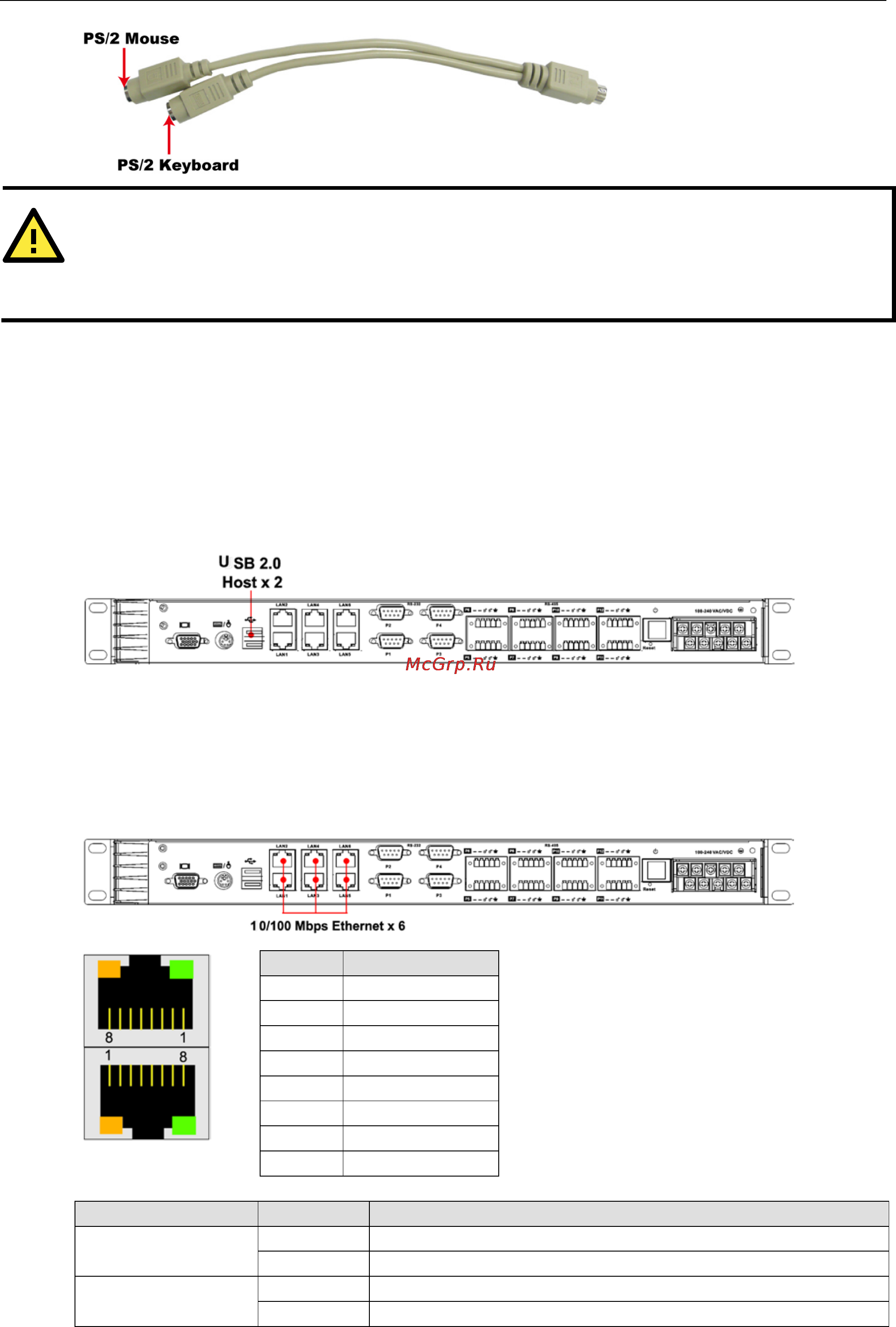

DA-681 Series Embedded Computer Hardware Installation
2-12
ATTENTION
Please note that without the Y
-type cable, the PS/2 connector on the DA-681 can only work with a PS/2
keyboard. A PS/2 mouse will not function when directly connected to the PS/2 connector on the DA
-681
embedded computer.
Connecting USB Devices
The DA-681 embedded computer has two USB 2.0 ports on the rear panel. All of the ports are UHCI, Rev 2.0
compliant and support Plug & Play and hot swapping. These ports can be used to connect USB devices, such as
a keyboard, mouse, USB flash disk, and USB CD-ROM. In addition, both USB ports support system boot up,
which can be activated by modifying the BIOS settings. The chapter “BIOS Setup” describes the configuration
process in detail.
LAN Ports
The DA-681 has 6 10/100 Mbps LAN ports. When the cable is properly connected, the LEDs on the RJ45
connectors will glow to indicate a proper connection.
Pin No. Signal Definition
1 TX+
2 TX-
3 RX+
4 ---
5 ---
6 RX-
7 ---
8 ---
LED Color Description
Ethernet Port
100 Mbps
Green 100 Mbps of Ethernet Port is active
Off No activity
Ethernet Port
10 Mbps
Yellow 10 Mbps of Ethernet Port is active
Off No activity
The default IP addresses and netmasks of the Gigabit LAN ports are as follows:
