DA-681 Series Embedded Computer Introduction
1-5

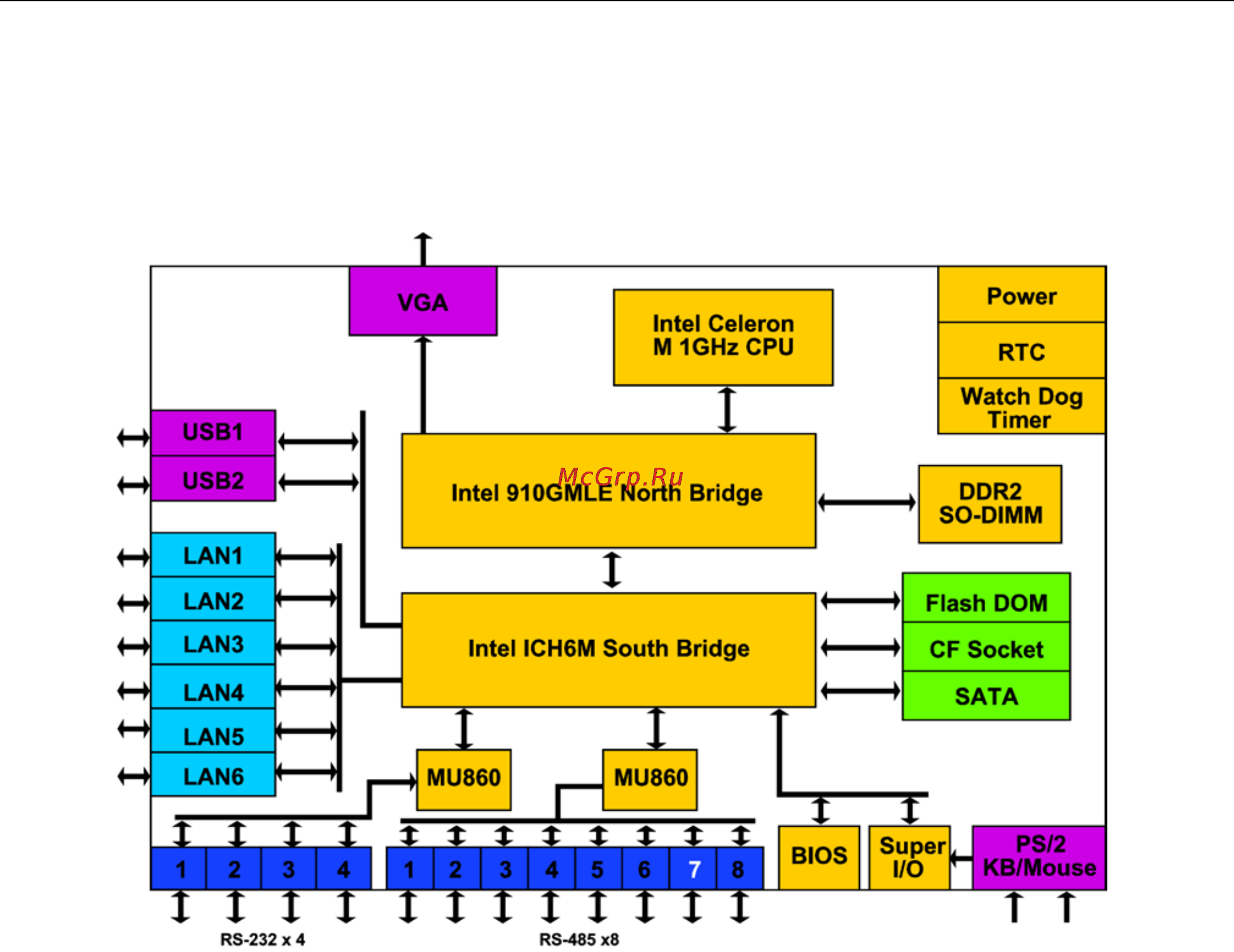

Hardware Block Diagram
DA-681 Basic System
Hardware Specifications
Computer
CPU:
Intel Celeron M 1 GHz processor
OS (pre
-installed): WinCE 6.0, Windows XP Embedded SP3, Linux 2.6
System Chipset:
Intel 910GMLE + ICH6M chipset
BIOS:
4 mega-bit Flash BIOS, PCI Plug & Play, ACPI function support
FSB:
400 MHz
System Memory:
1 x 200-pin DDR2 SODIMM socket supporting DDR2 400; up to 1 GB max. (512 MB built-
in)
Expansion Bus:
PCI/104 onboard
USB:
USB 2.0 compliant hosts x 2, Type A connector, supports system boot up
Storage
Built
-in: 1 GB (2 GB for DA-681-XPE) industrial DOM onboard to store OS via IDE interface
Storage Expansion:
CompactFlash socket
HDD Support:
SATA connector for HDD expansion
Other Peripherals
KB/MS:
1 PS/2 interface, supports standard PS/2 keyboard and PS/2 mouse
Display
Graphics Controller:
Integrated graphics with built-in Intel 910GME, and built-in Intel extreme Graphics 2
technology
Display Memory:
Dynamic video memory (shares up to 32 MB of system memory)
Display Interface:
CRT Interface for VGA output (DB15 female connector)
Resolution:
CRT display mode with pixel resolution up to 2048 x 1536 at 75 Hz
