DA-681 Series Embedded Computer BIOS Setup
3-13
Power

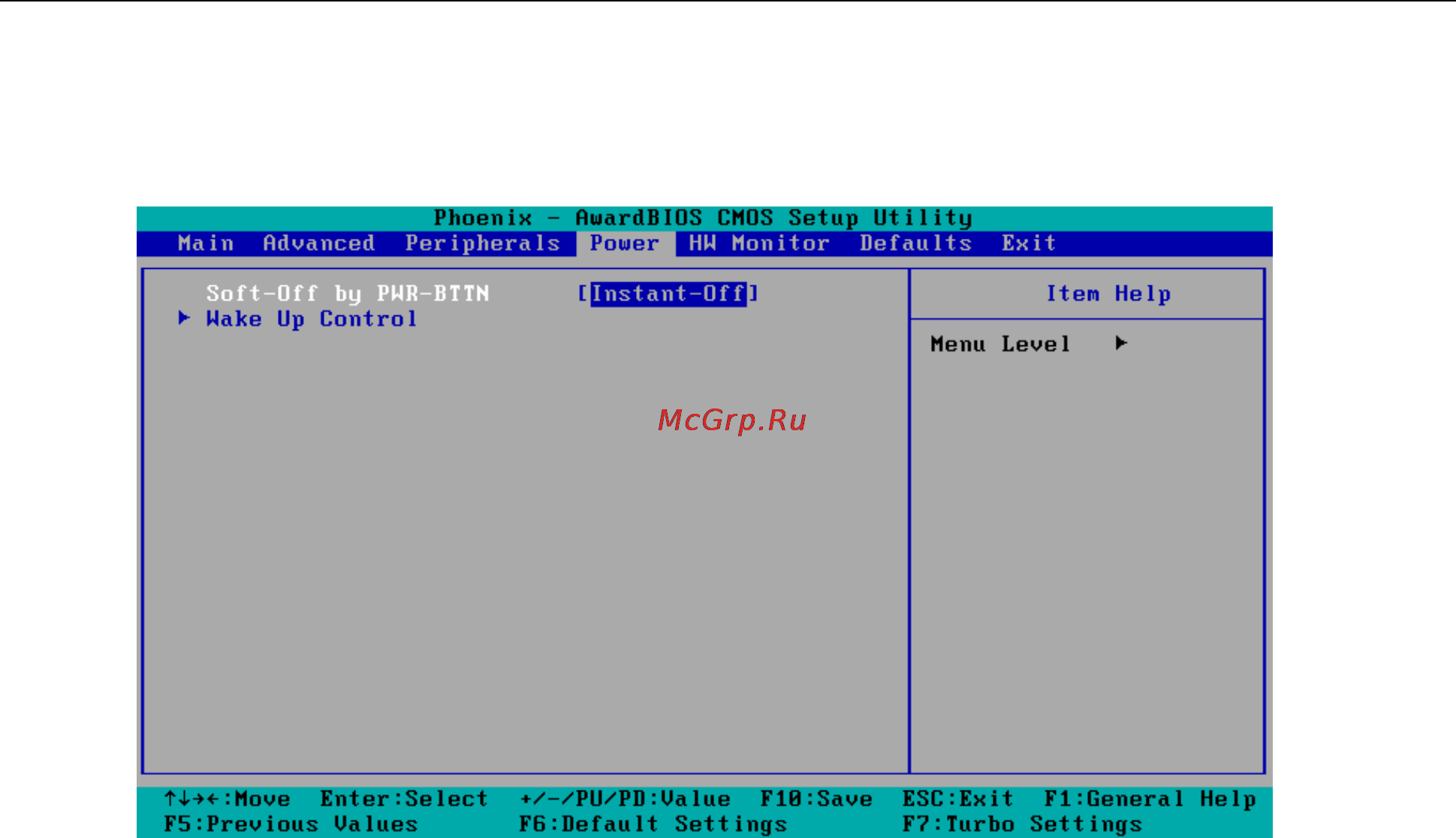

The Power Setup Menu allows you to configure your system power-up/ power-down options.
Soft-Off by PWR-BTTN
Select the “Instant-Off” option if you would like the system to power down immediately after pushing the power
button. Selecting the “Delay 4 Sec” option will require pushing the power button continuously for at least 4
seconds before the system powers down.
Options: Delay 4 Sec, Instant-Off (default).
Wake Up Control
Press “Enter” to select Wake Up Control items.
Lan Wake up
This feature is used to wake up the system by a LAN device from a remote host.
Please note that this function only works for LAN Port 5 and Port 6.
Options: Disabled (default), PCI
RTC Wake Up
When “Enabled,” you can set the date and time at which the RTC (real-time clock) alarm awakens the system
from Suspend mode.
Options: Disabled (default), Enabled.
Date (of Month) Alarm
Set the “date” for the “RTC Wake Up” function when “RTC Wake Up” is set to “Enabled.”
