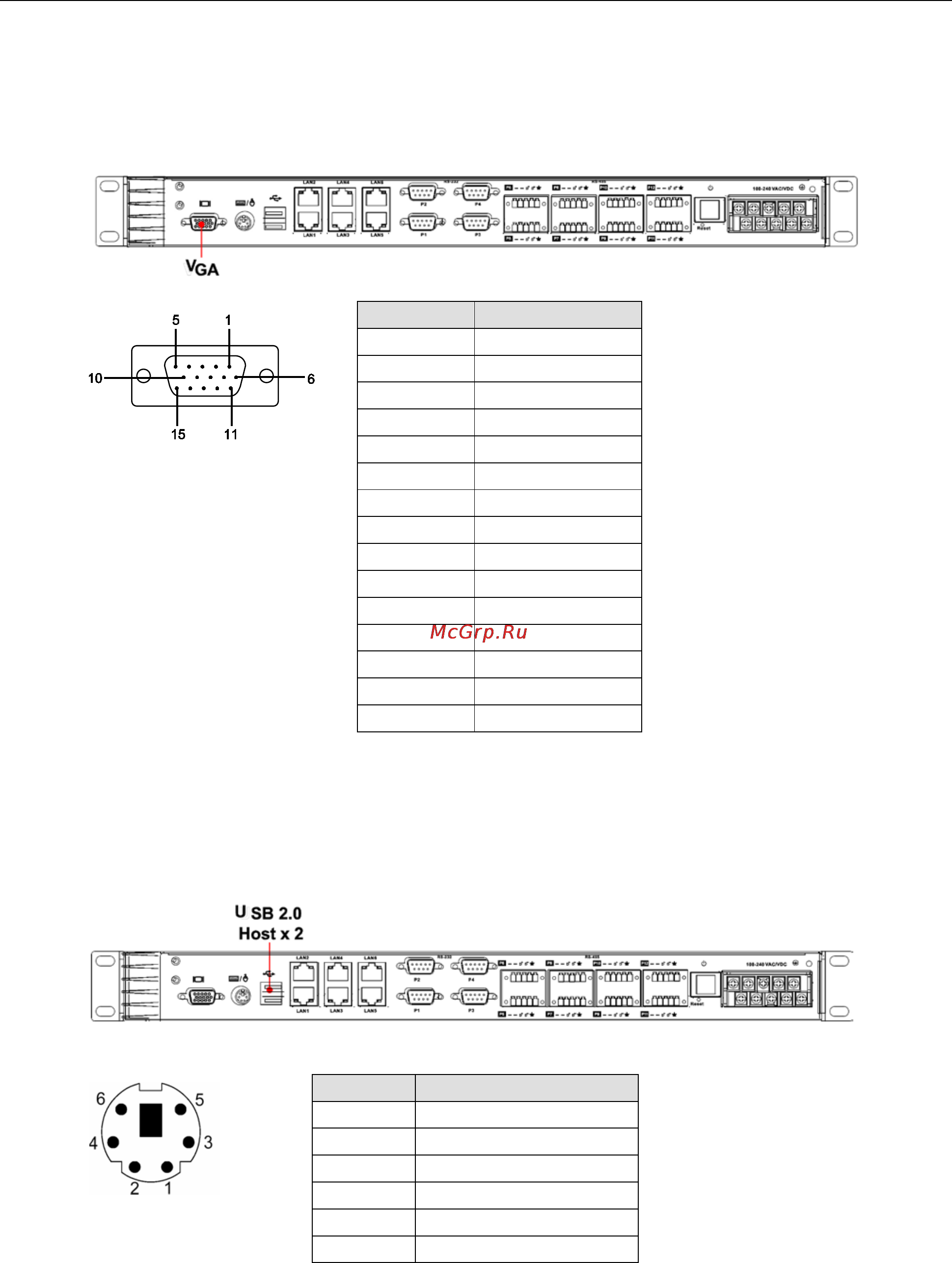

Connecting to a Display

Your DA-681 embedded computer comes with a D-Sub 15-pin female connector to connect to the VGA monitor.

Be sure to remove the power before you connect or disconnect the monitor cable.

Pin No. Signal Definition

1 RED

2 GREEN

3 BLUE

4 ---

5 GND

6 CRT_DETECT#

7 GND

8 GND

9 +5V

10 GND

11 ---

12 DDC_DATA

13 HSYNC

14 VSYNC

15 ---

Connecting a PS/2 Keyboard and Mouse

Your DA-681 embedded computer comes with a PS/2 mini-DIN connector to connect to a PS/2 keyboard and

PS/2 mouse by using a Y-type cable. This 6-pin mini-DIN connector has the pin assignments shown below.

Pin No. Signal Definition

1 PS/2 Keyboard Data

2 PS/2 Mouse Data

3 GND

4 VCC

5 PS/2 Keyboard Clock

6 PS/2 Mouse Clock

Use the Y-type cable to convert the mini-DIN connector into two 6-pin mini-DIN connectors to connect both a

PS/2 keyboard and PS/2 mouse at the same time. (The Y-type cable is not included in the accessory package.

It should be purchased separately. You may also use the USB ports to connect your USB-based keyboard and

mouse.)
