DA-681 Series Embedded Computer Hardware Installation
2-3

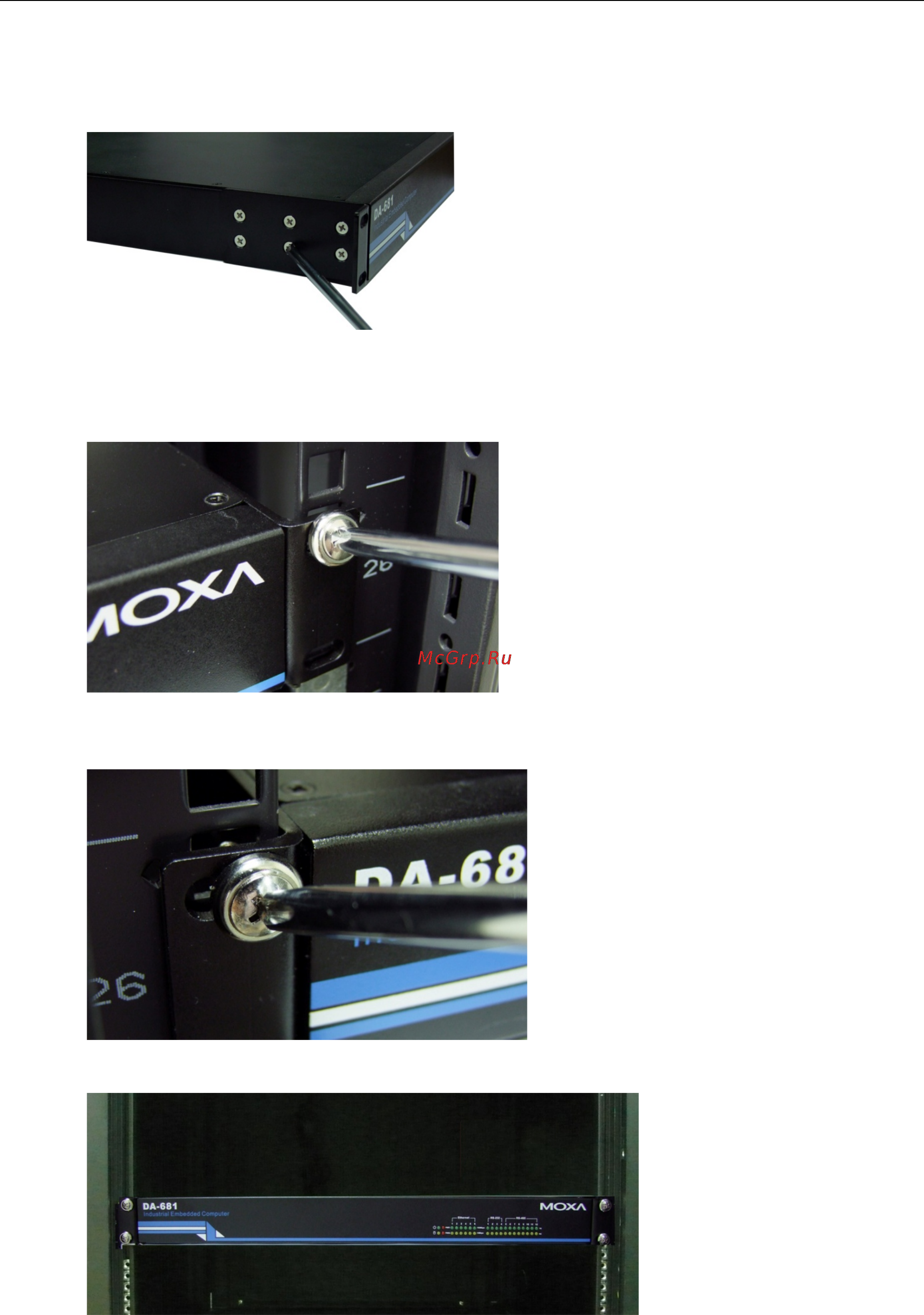

Step 2: Installing the rackmount ears to the DA-681.
Use 6 screws to attach one rackmount ear to one side of the DA-681. Repeat this procedure for the ear on the
other side of the DA-681.
Step 3: Installing the DA-681 to a rack.
Gently slide the DA-681 onto the rack, and then use screws provided by the rack supplier to fix the rackmount
support to the rail.
Note that four screws are required to attach the DA-681 to the rack. Use two screws on the left side
and two screws on the right side.
As a final check, make sure that the four screws are firmly attached to the rack.
