UC-8410A Series Linux Software Advanced Configuration of Peripherals

3-7

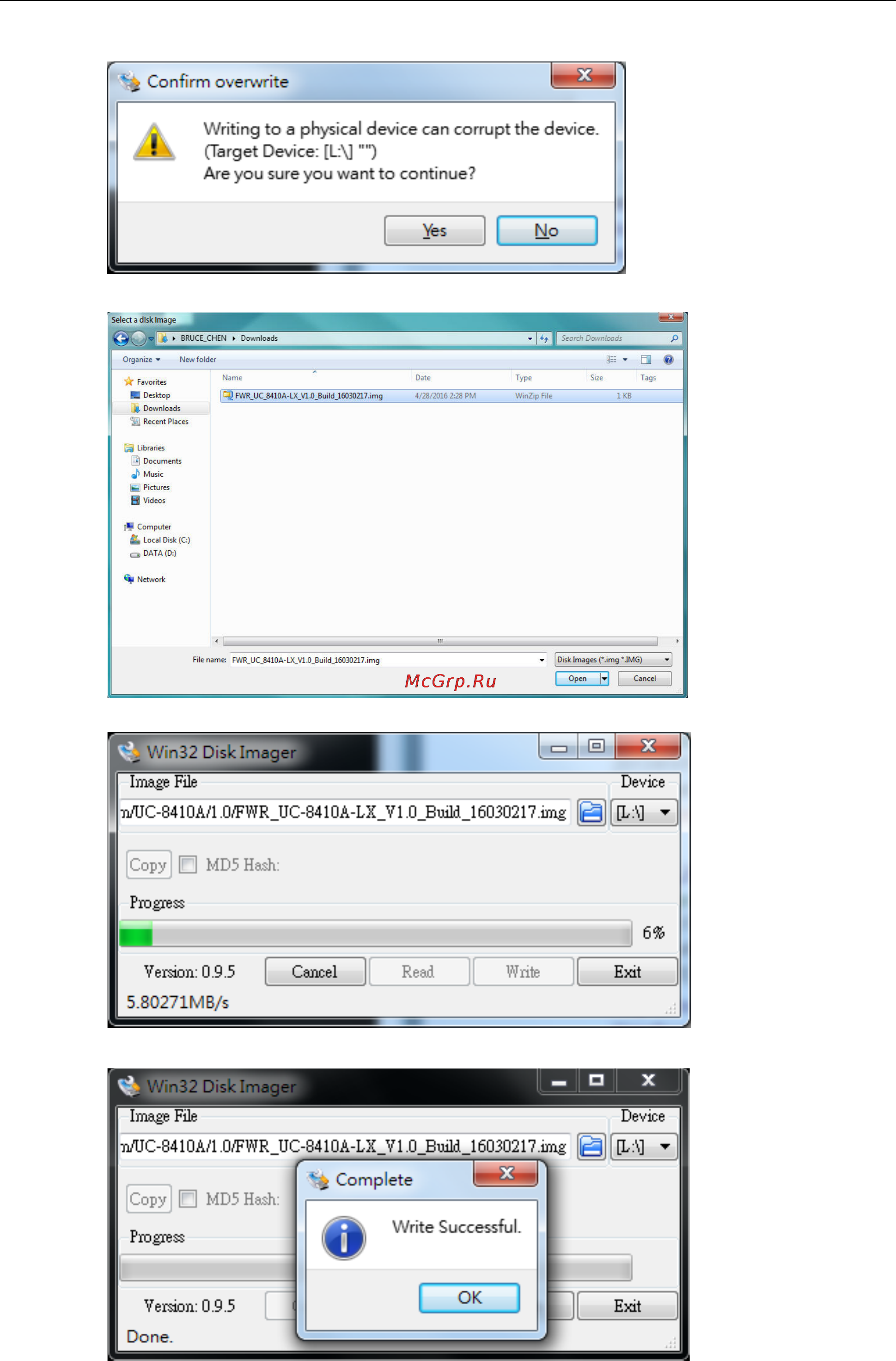

7. A warning message is displayed. Click Yes to continue.

8. Browse to and select the image file. Click Open to continue.

9. Click Write to start writing the image file.

10. When finished, click OK.
