Moxa UC-8410A-T-LX [77/86] Enable pin protection

UC-8410A Series Linux Software Programmer’s Guide

6-15

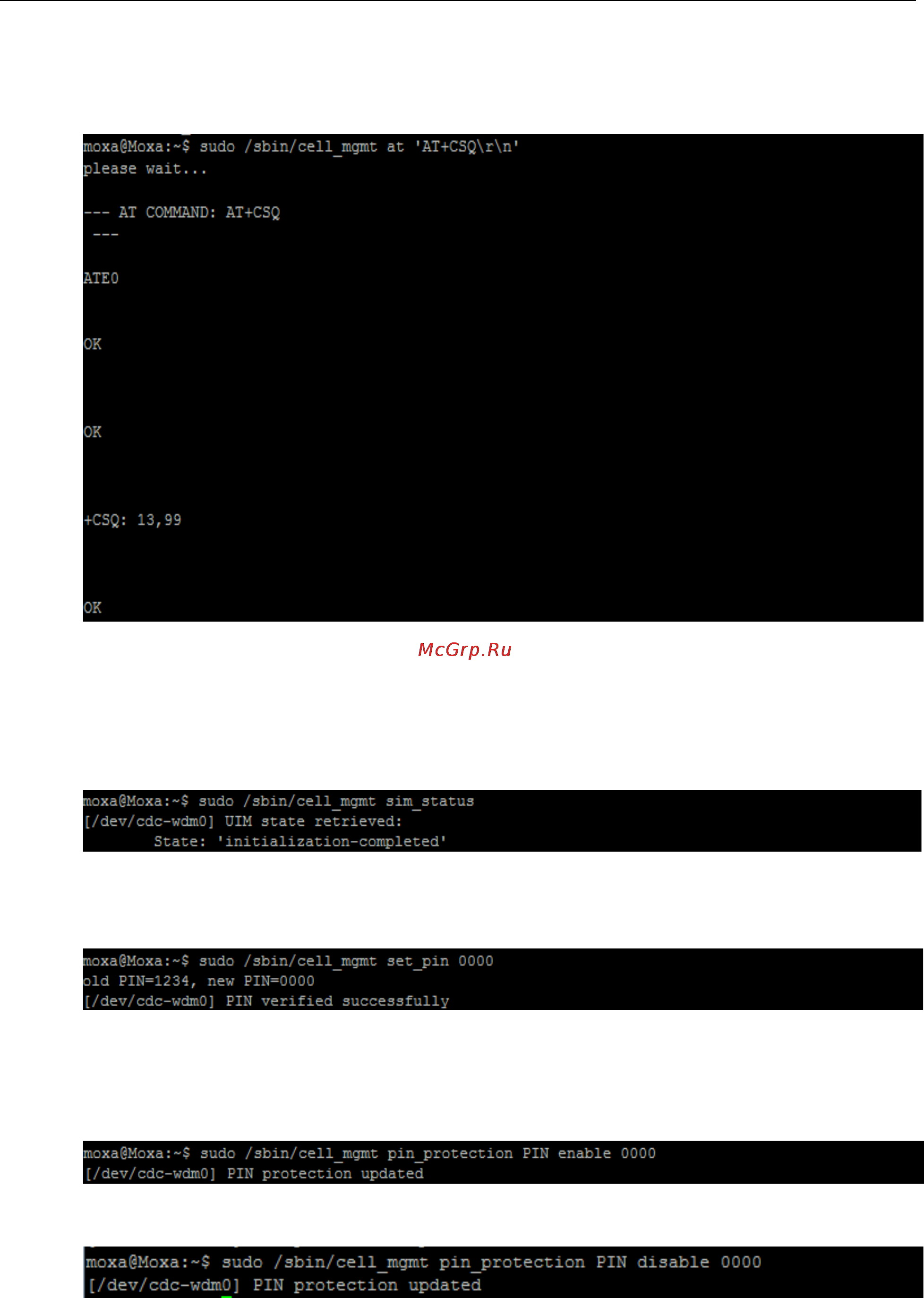

The cell_mgmt at Command]

Used to input an at command. For example, use the at command to run AT+CSQ as follows:

SIM Card

cell_mgmt sim_status

Provides information on the SIM card status.

cell_mgmt set_pin [PIN]

Sets the PIN code for the configuration file and verifies the same.

cell_mgmt pin_protection [PIN|PIN2] [enable|disable] [current_PIN]

Enables or disables PIN protection in the UIM.

enable PIN protection

disable PIN protection
