UC-8410A Series Linux Software Copying Images on an SD Card

C-2

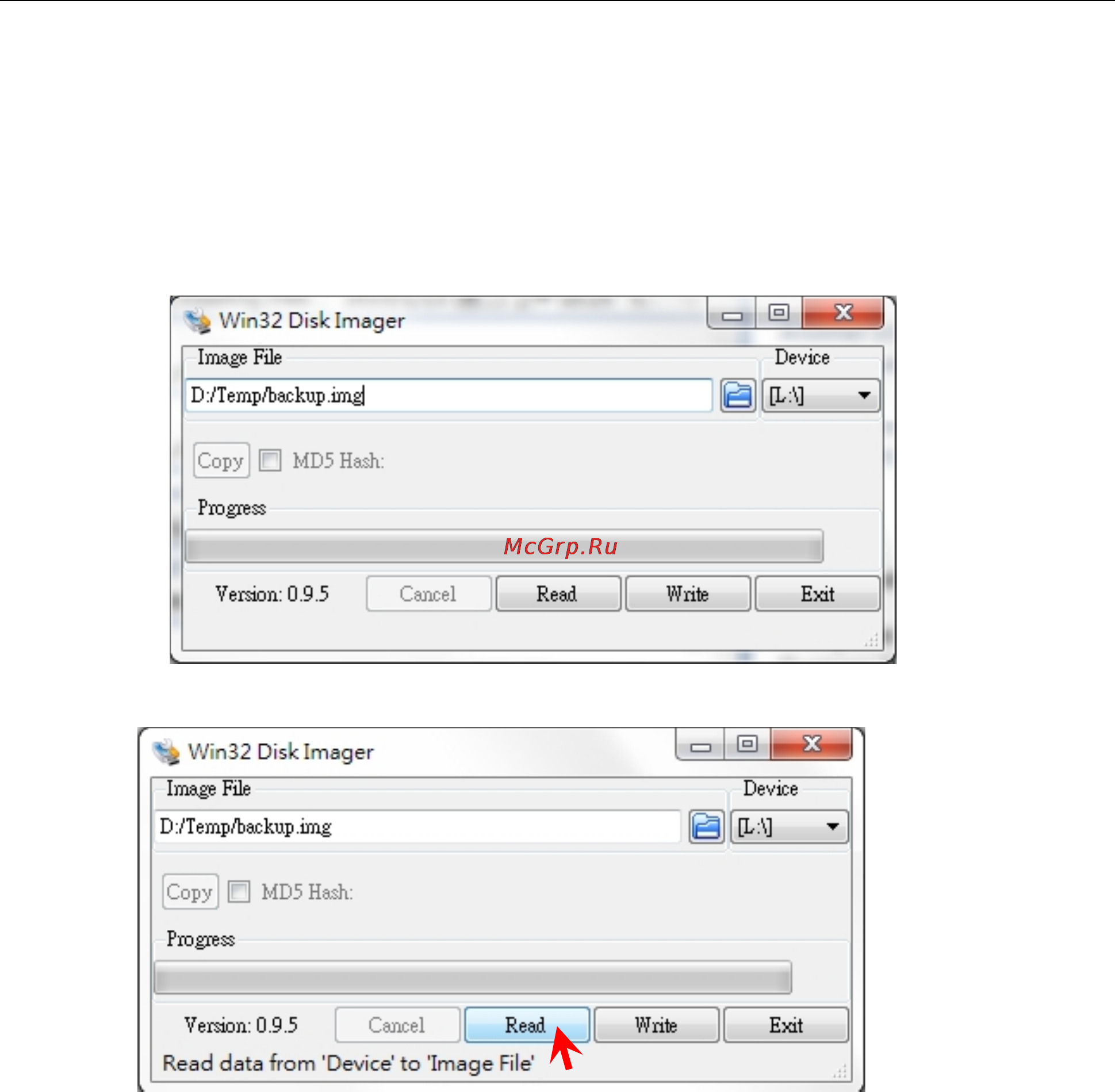

Using the Win32 Disk Imager

1. Remove the SD card from the UC-8410A and insert it into another computer.

2. Start Win32 Disk imager and complete the following steps:

a. From the Device drop-down list, select the drive letter for the SD card (for example, L:\).

b. In the Image File field, enter the location for the image file. Alternatively, you can click the folder icon

to locate the image file (for example, D:\Temp\backup.imp).

3. Click Read.
