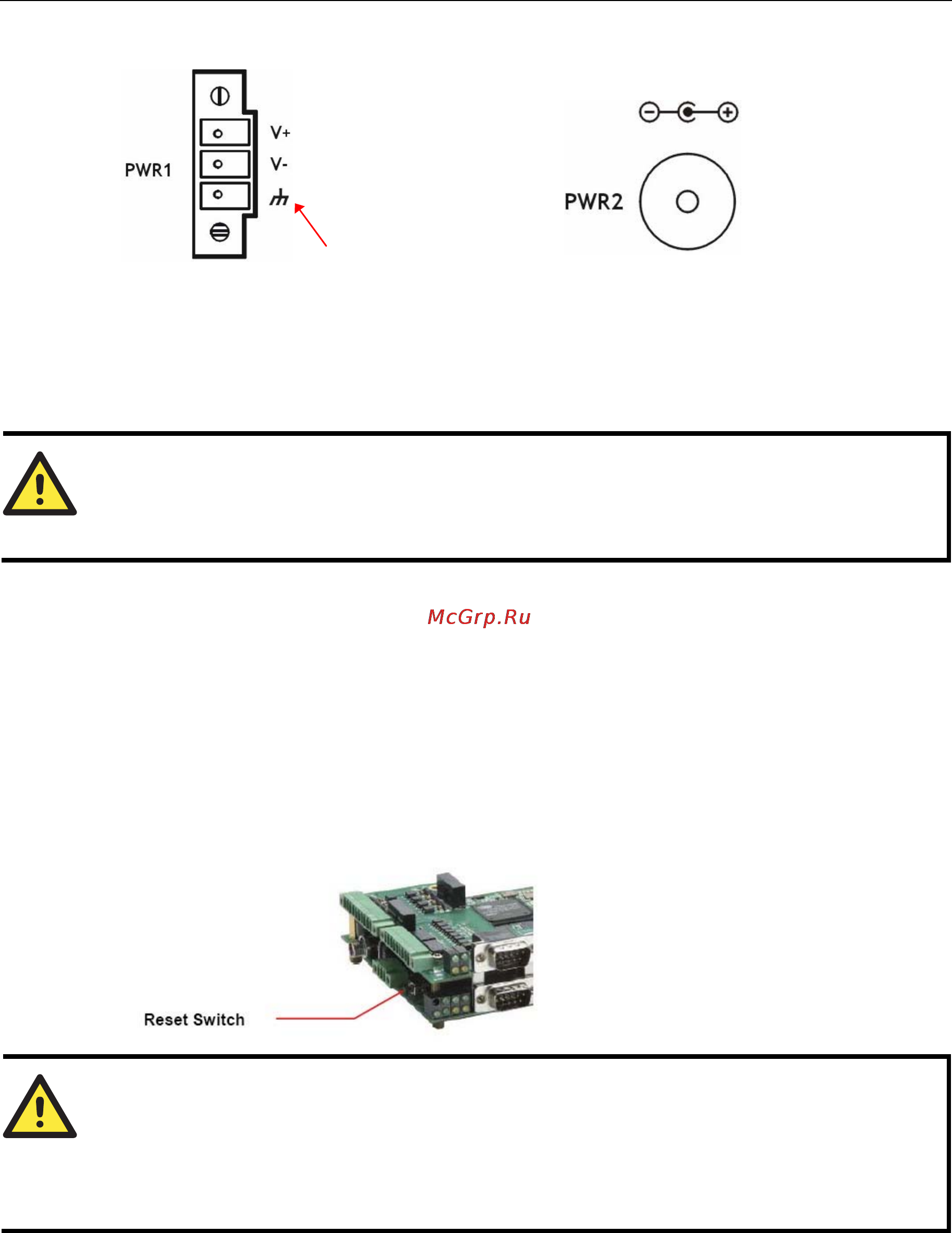

EM-2260 HW User’s Manual Hardware Installation
SG
The Shielded Ground (SG, sometimes called Protected Ground) helps to limit the effects of noise
due to electromagnetic interference (EMI). Run the ground connection from the ground screw to
the grounding surface prior to connecting devices.
ATTENTION
The power for this product is intended to be supplied by a Listed Power Supply Unit, and rated
to deliver 12 to 48V DC at a minimum of 1200mA for 12V DC, 260mA for 48V DC.
Resetting Your EM-2260 Computer
Cold-Start: Disconnect power and then connect the power again. The computer reboots itself
right away.
Warm-Start: In power-on state, push the Reset Switch near power terminal block and release it in
1 second. The computer reboots itself.
Reset to Factory Default: If the computer is not working properly, and you want to load factory
default settings. Press the Reset Switch for at least 5 seconds. After the factory default
configuration has been loaded, the system will reboot automatically.
WARNING
Reset to Default preserves user’s data. It will NOT format the user directory and erase the user’s
data, pressing the Reset to Default will only load the configuration file. If the computer cannot
start up, please use Console Port and go to the Boot Loader to format the file system. After the
formatting procedure is done, you should be able to restart it.
2-3
