EM-2260 HW User’s Manual Hardware Installation

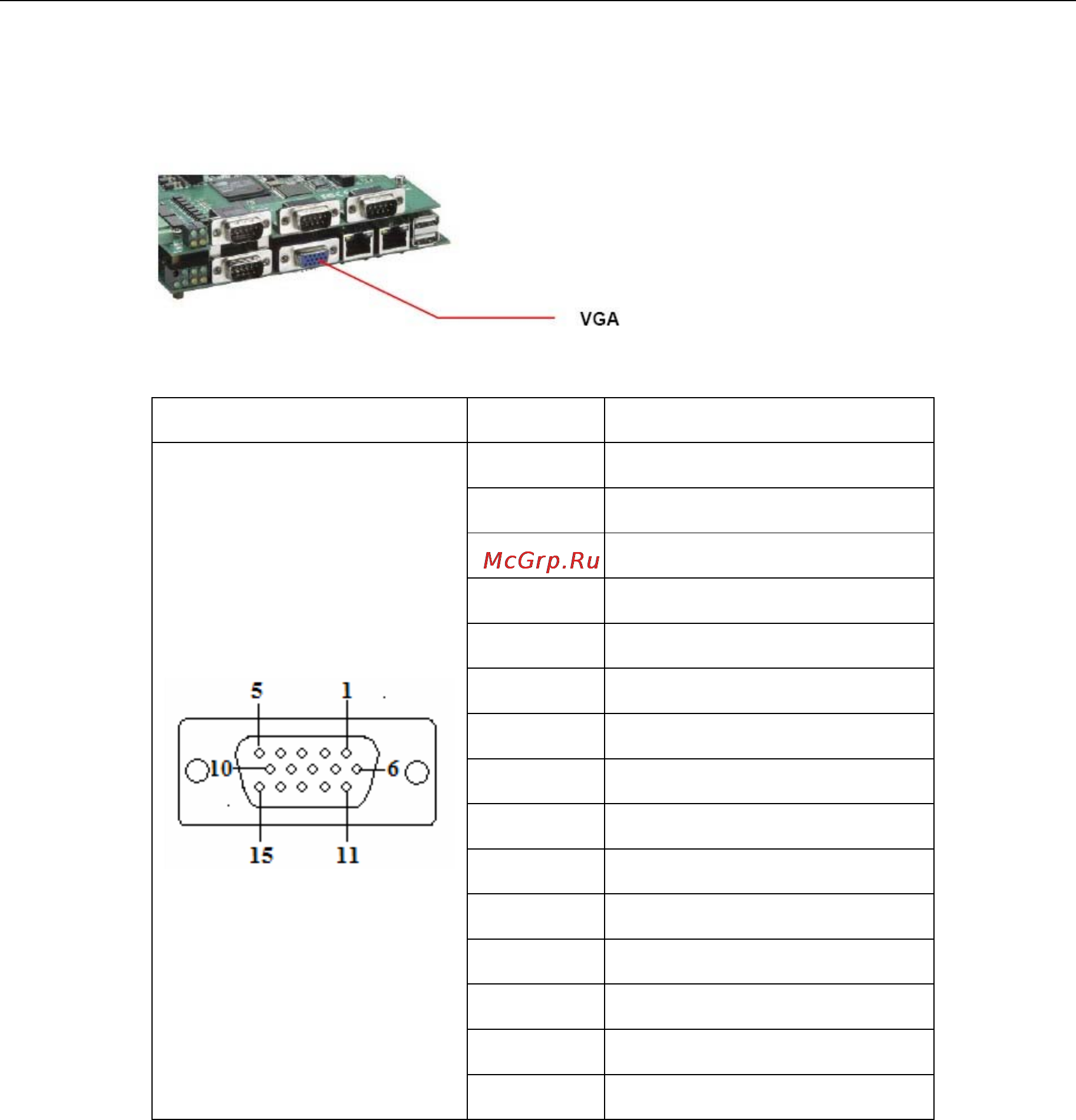

Connecting to a Display
EM-2260 Development Kit comes with a D-Sub 15-pin female connector to connect to VGA
monitor. Be sure to remove power before you connect or disconnect the monitor cable.
DB15 Female Connector Pin No. Signal Definition
1 Red
2 Green
3 Blue
4 ---
5 GND
6 GND
7 GND
8 GND
9 ---
10 GND
11 ---
12 ---
13 H-Sync
14 V-Sync
15 ---
