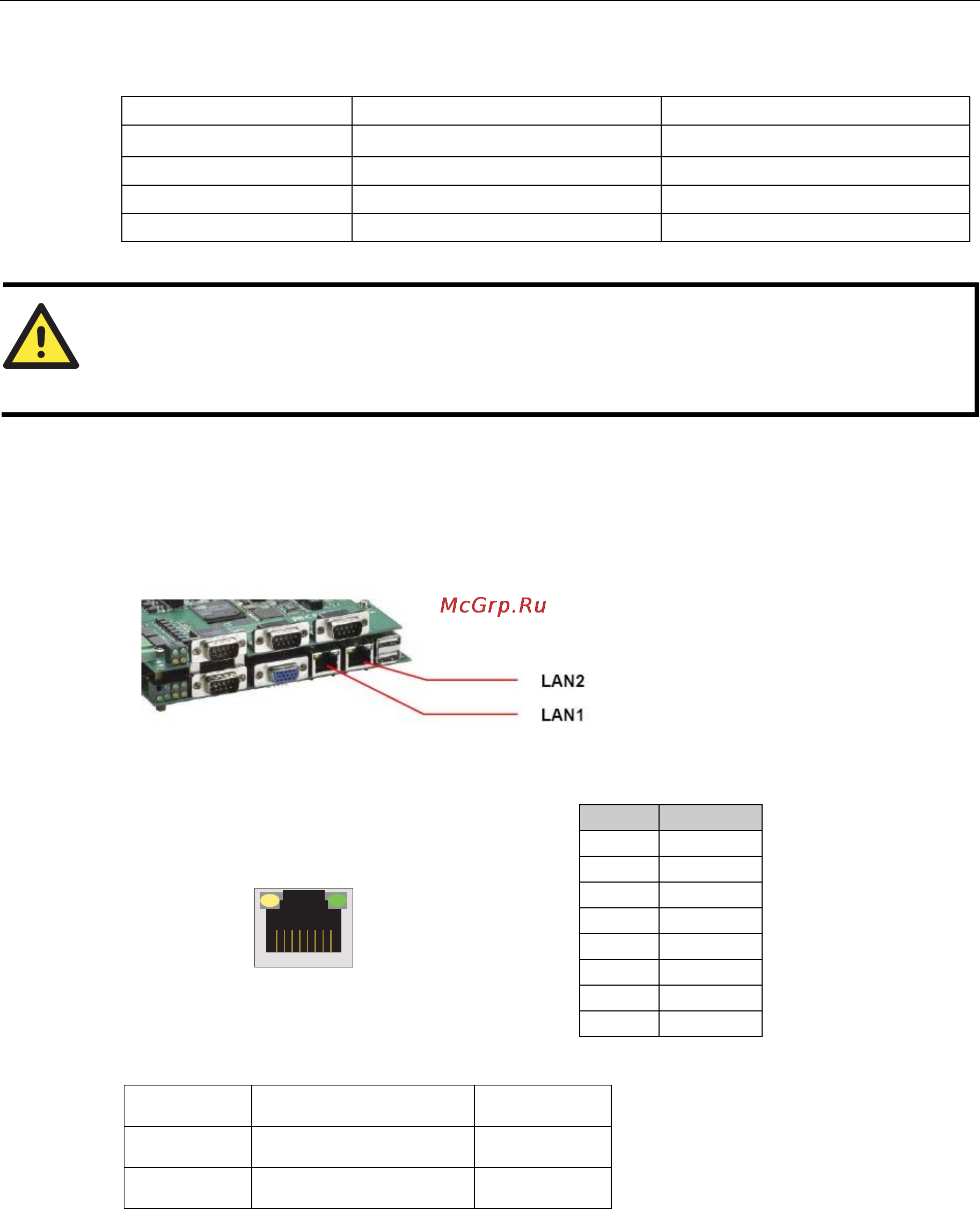

EM-2260 HW User’s Manual Hardware Installation
The following table describes the compatible CompactFlash storages list that we had tested
successfully.
Vendor Device Name Size
ScanDisk
Ultra II
1GB
Transcend Compact Flash 80X 512MB
Apacer Photo CIENO 2GB
Unigen Compact Flash card 128MB
ATTENTION
The EM-2260 does not support CompactFlash hot swap and PnP (Plug and Play) function. It is
necessary to remove power source first before inserting or removing the CompactFlash card.
LAN Ports
EM-2260 Development Kit Embedded Module offers 2 LAN ports supporting 10/100 Mbps. The
default IP addresses and netmasks of the network interfaces are as follows:
8-pin RJ 45 Pinouts
18
spbM 001
rotacidni
spbM 01
rotacidni
Pin Signal
1 ETx+
2 ETx-
3 ERx+
4 ---
5 ---
6 ERx-
7 ---
8 ---
Default IP Address Netmask
LAN 1 192.168.3.127 255.255.255.0
LAN 2 192.168.4.127 255.255.255.0
2-8
