EM-2260 HW User’s Manual Introduction
ATTENTION
The EM-2260 package includes the EM-2260 embedded module only. The EM-2260
Development Kit is available for evaluation purposes.

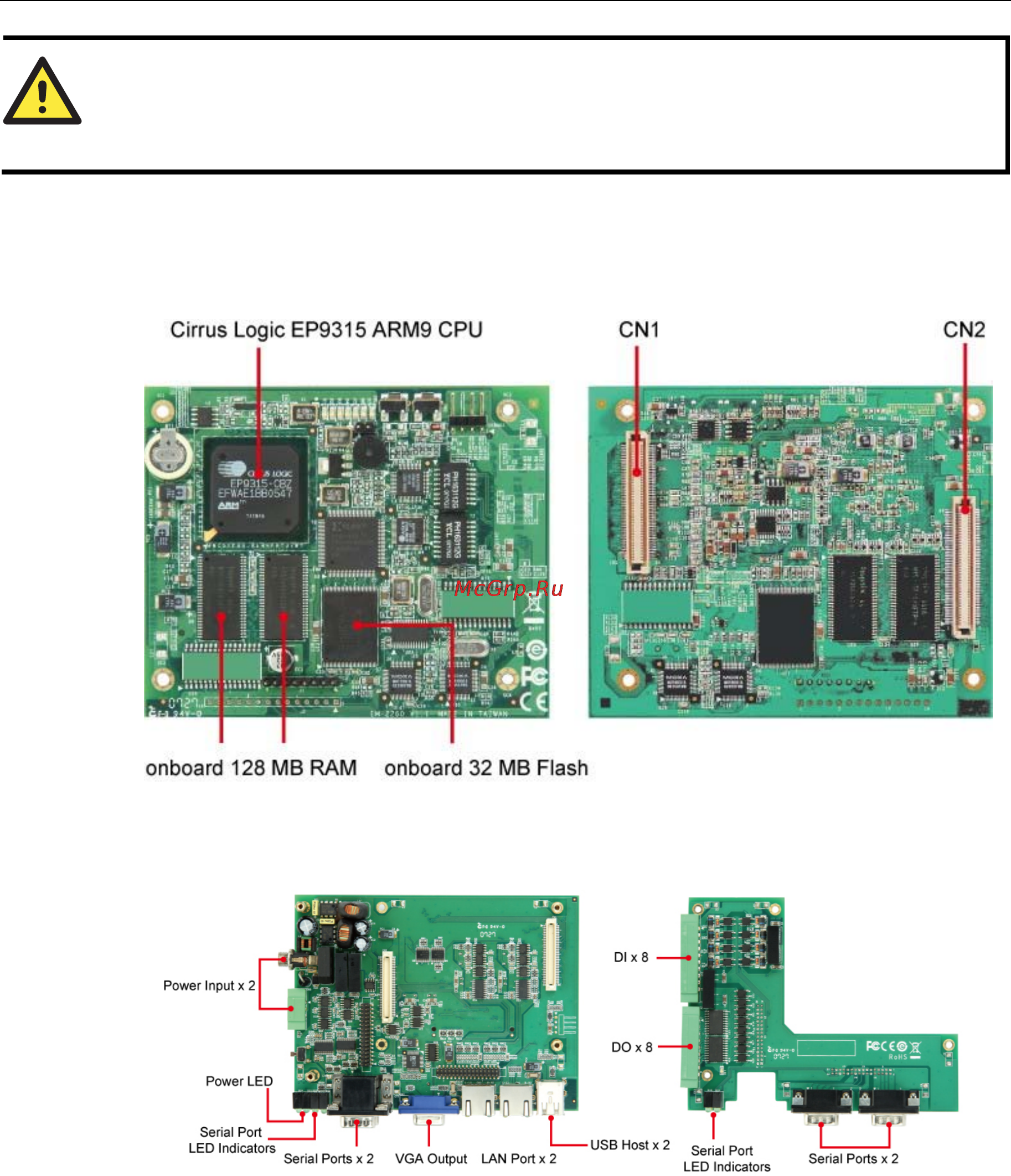

EM-2260 Embedded Module
Front View Rear View
EM-2260-DK Carrier Board and Peripheral Extension Board
EM-2260-DK Peripheral Extension Board
1-3
