EM-2260 HW User’s Manual Hardware Installation

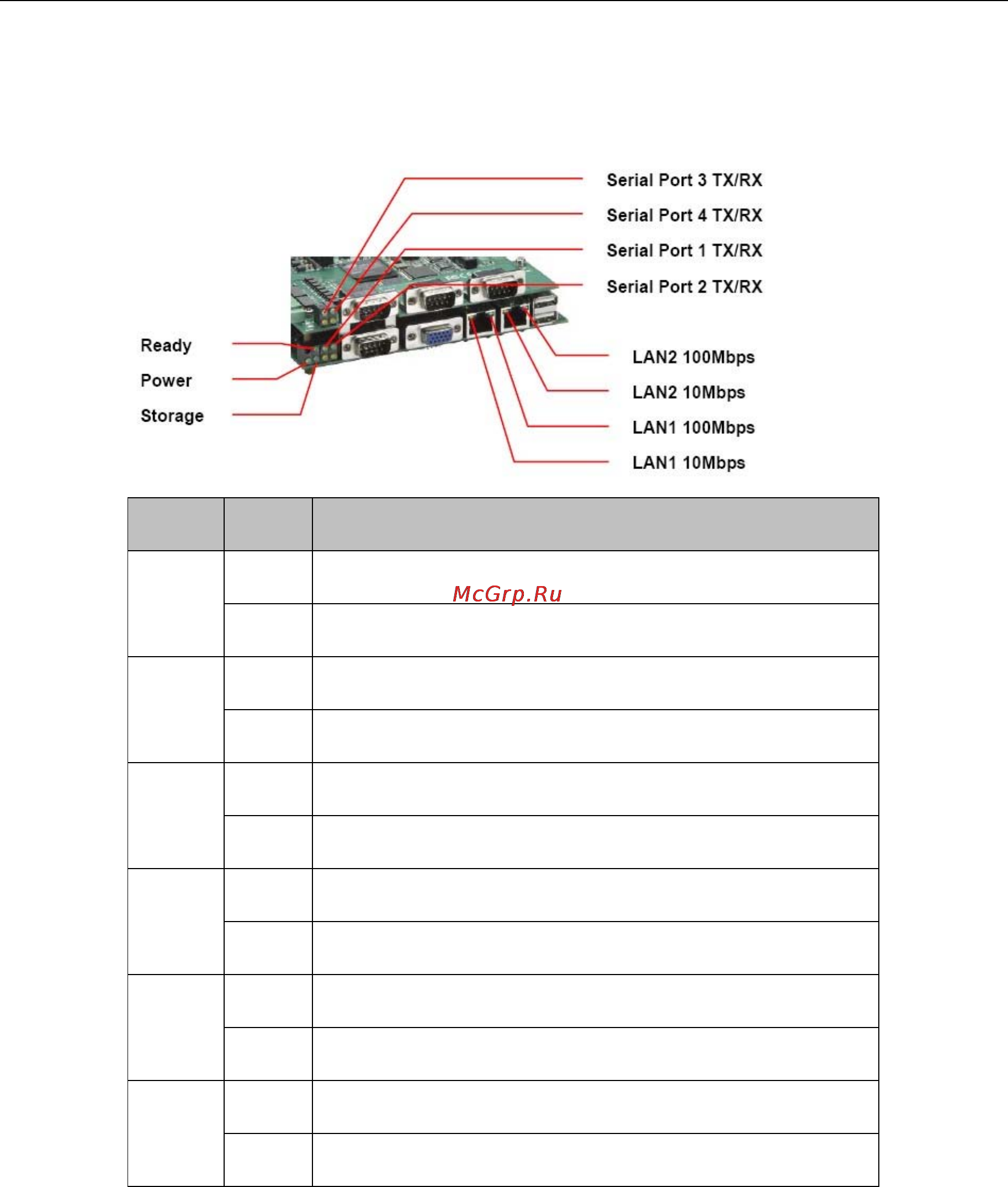

LED Indicators
EM-2260 Development Kit has 15 LED indicators on the front. Refer to the following table for
information about each LED.
LED Color Description
Green Power is ON.
Power
Off No power is being received, or power error exists.
Green OS is ready and functioning normally (after booting up).
Ready
Off OS is not ready.
Green Data is being written to or read from the storage unit.
Storage
Off Storage unit is idle.
Orange 10 Mbps Ethernet connection
LAN1,
LAN2
Green 100 Mbps Ethernet connection
Green Serial port is transmitting TX data to the serial device.
P1-P4
(TX)
Off Serial port is not transmitting TX data to the serial device.
Orange Serial port is receiving RX data from the serial device.
P1-P4
(RX)
Off Serial port is not receiving RX data to the serial device.
2-4
