EM-2260 HW User’s Manual Introduction
Overview
The Moxa EM-2260 Embedded Module features Cirrus Logic ARM9 CPU, 128 MB RAM, 32
MB Flash Disk, dual 10/100 Mbps Ethernet, eight digital inputs and eight digital outputs, four high
speed serial ports, two USB 2.0 Hosts and an EIDE interface for external storage connection such
as CompactFlash card. In addition, with built-in VGA interface, EM-2260 is suitable for SCADA
system in industrial applications, that require VGA and HMI features.
The EM-2260 Embedded Module uses Cirrus Logic EP9315 ARM9, 32-bit, 200 MHz
RISC CPU.
This powerful computing engine supports several useful communication functions, without
generating a lot of heat. This module has a compact design that is easily integrated with a variety
of industrial applications, including gas stations, vending machines, and ticketing machines, and
offers a powerful serial communication capability for better system integration.
The built-in 32 MB NOR Flash ROM and 128 MB SDRAM give you enough memory to run your
application software directly on the EM-2260. Programmers will find the pre-installed,
ready-to-run Windows CE 6.0 or Linux platform and full-function development kit a great benefit
for developing software and building reliable communication applications.
In addition to the standard model, the EM-2260 Embedded Module also comes in wide
temperature model that offers the operating temperature range from -40 to 75°C, and is appropriate
for harsh industrial automation environments.
The EM-2260 Development Kit, which is designed for system and software development at the
system evaluation stage, is also available. The kit combines the EM-2260 and carrier board
EM-2260-DK. It is convenient for users to evaluate the functionality of EM-2260, develop and
integrate the specific systems on it in advance, enabling EM-2260 embedded module to be
completely compatible with the industrial systems and applications.

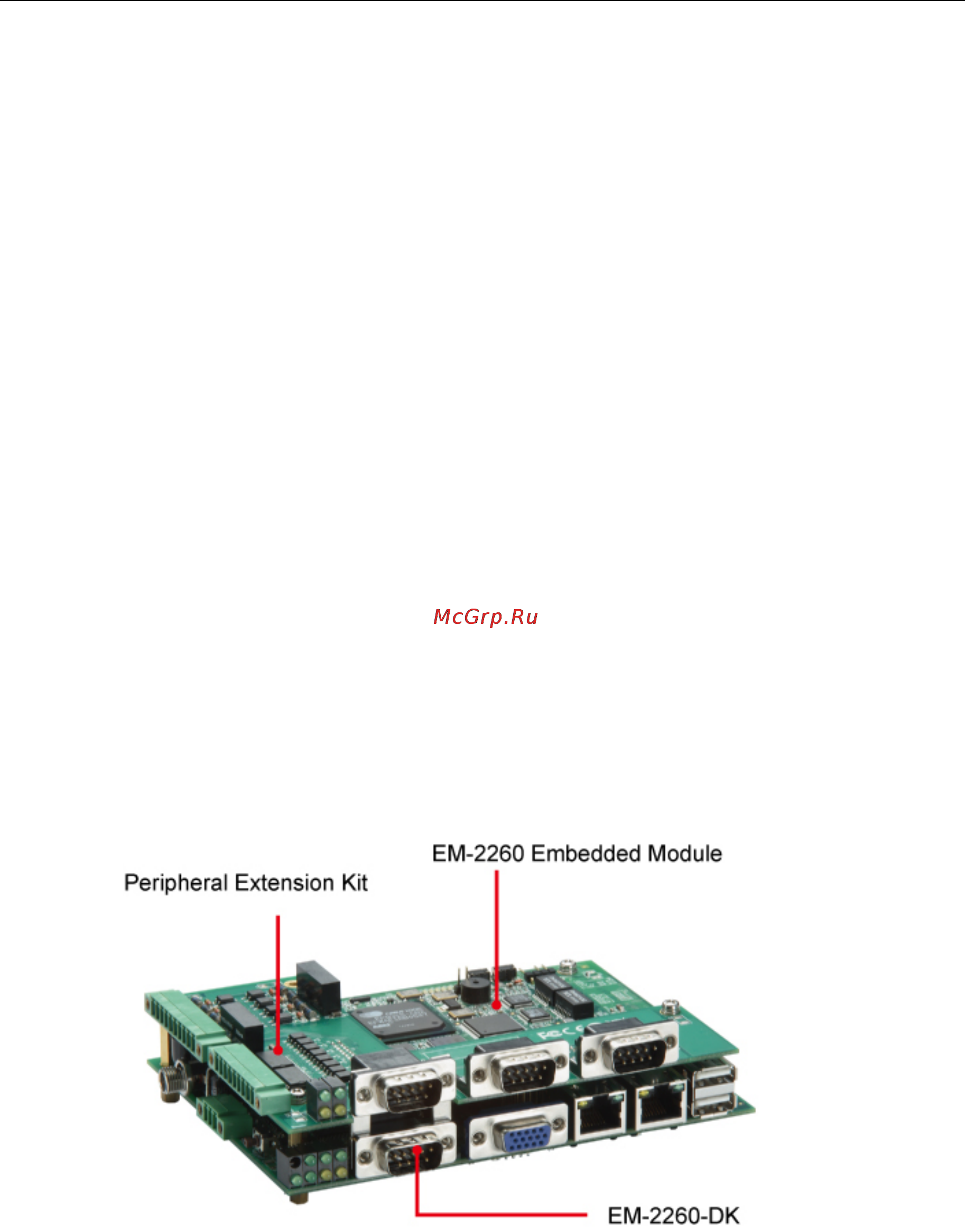

Appearance
The EM-2260 Development Kit contains EM-2260 embedded module, carrier board
(EM-2260-DK) and Peripheral Extension Board.
EM-2260 Development Kit
1-2
