MC-5150-AC/DC Hardware Connection Description

3-7

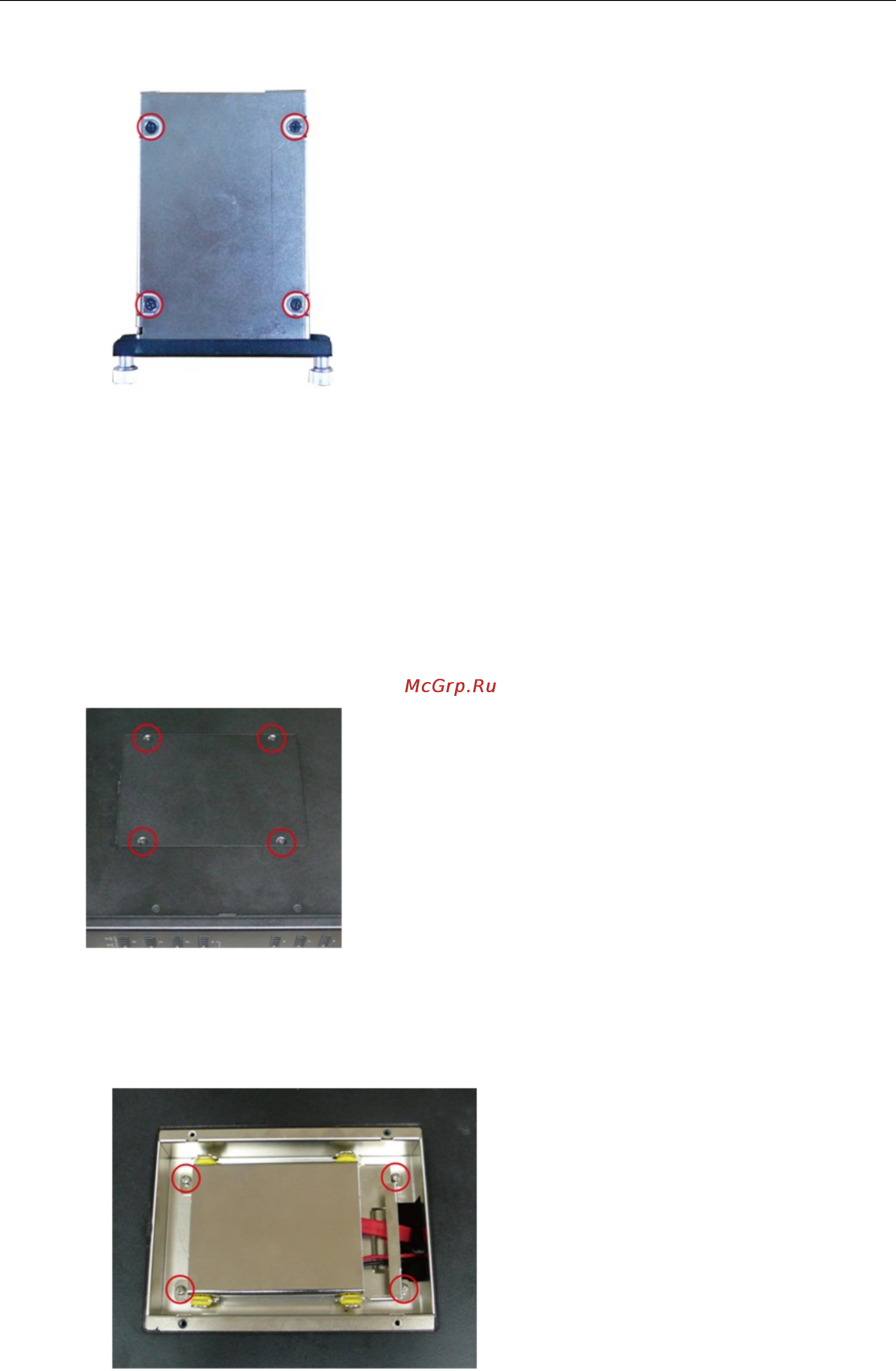

3. Remove the storage bracket from the slot and turn over to get access to the four screws which will secure

the drive into place within the tray.

4. Place the drive into the tray and secure it in place using the four screws. When finished, insert the tray into

the computer and fasten the tray in place using the two thumbscrews on the front panel. Finally, complete

the installation by turning the key leftwards to lock the tray into place.

Installing the Internal SATA Storage Drive

The MC-5150-AC/DC has an internal SATA slot for expanding the computer’s storage capacity; this slot is

accessible via a screw-fastened plate (philips head) on the bottom panel of the computer.

1. To access the storage expansion slot, turn over the MC-5150-AC/DC model and remove the four screws on

the cover plate. The following figure shows the plate’s location:

After removing the back plate cover of the computer, you need to install the hard disk installation kit. See the

following description.

1. Remove the four screws from the storage slot’s mounting tray (mount points indicated in the figure below)

and, without detaching the SATA cable from the mounting tray, remove the tray from the storage slot.
