MC-5150-AC/DC BIOS Setup
4-13
Turbo Mode
This item allows you to configure the processor Turbo Mode function.
Options: Enable (default), Disabled

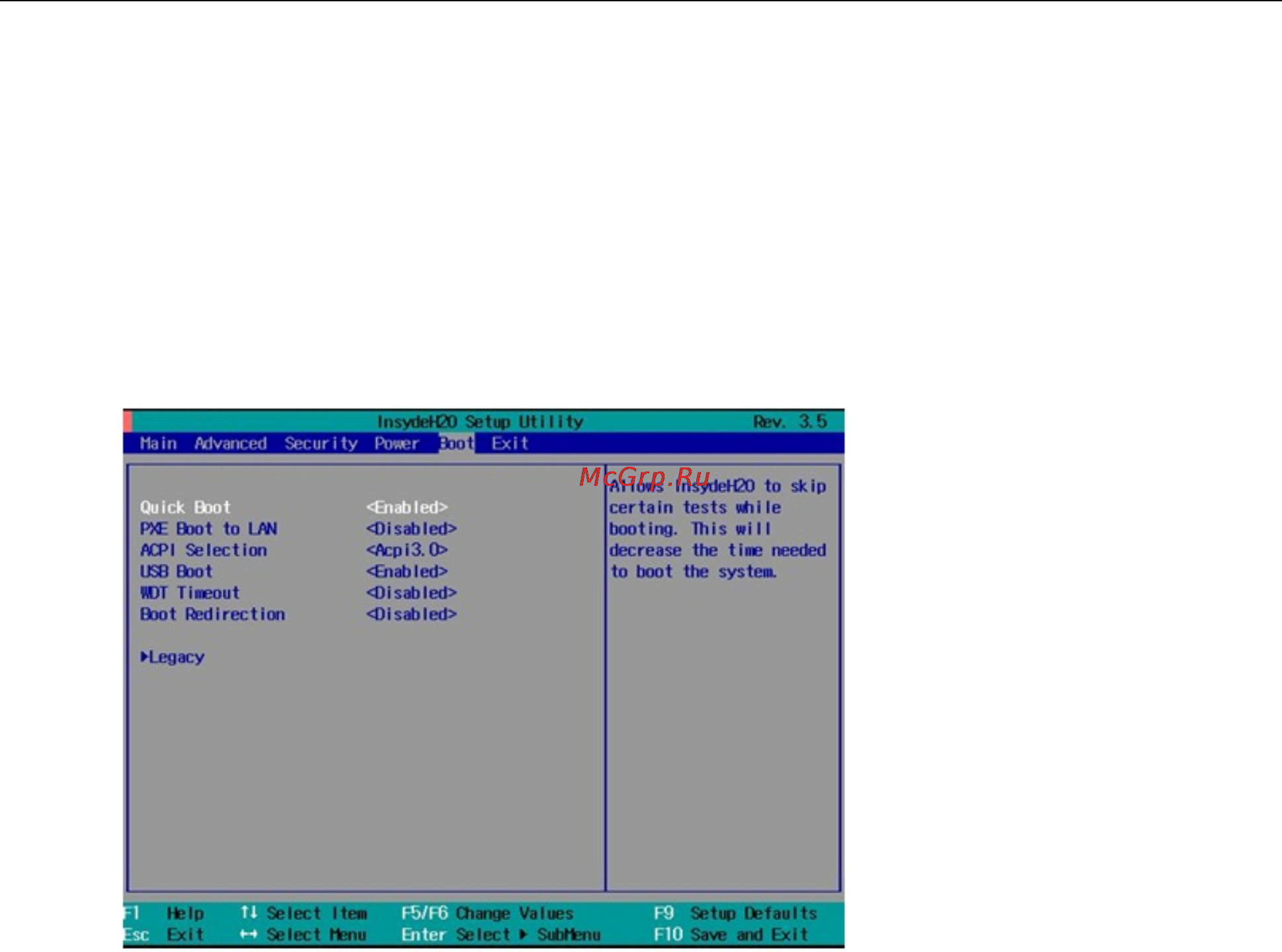

Boot Settings
The section allows users to configure boot settings.
Quick Boot
This item allows you to enable/disable quick boot function.
Options: Enabled (default), Disabled
PXE Boot to LAN
This item allows you to enable/disable PXE boot to LAN function.
Options: Disabled (default), Enabled
ACPI Selection
This item allows you to select the ACPI version..
Options: Acpi3.0 (default), Acpi1.0B, Acpi4.0
USB Boot
This item allows you to enable/disable USB boot function..
Options: Enabled (default), Disabled
WDT Timeout
This item allows you to set up WDT (Watchdog Timer) timeout after OS boots up.
