MC-5150-AC/DC Hardware Connection Description
3-10

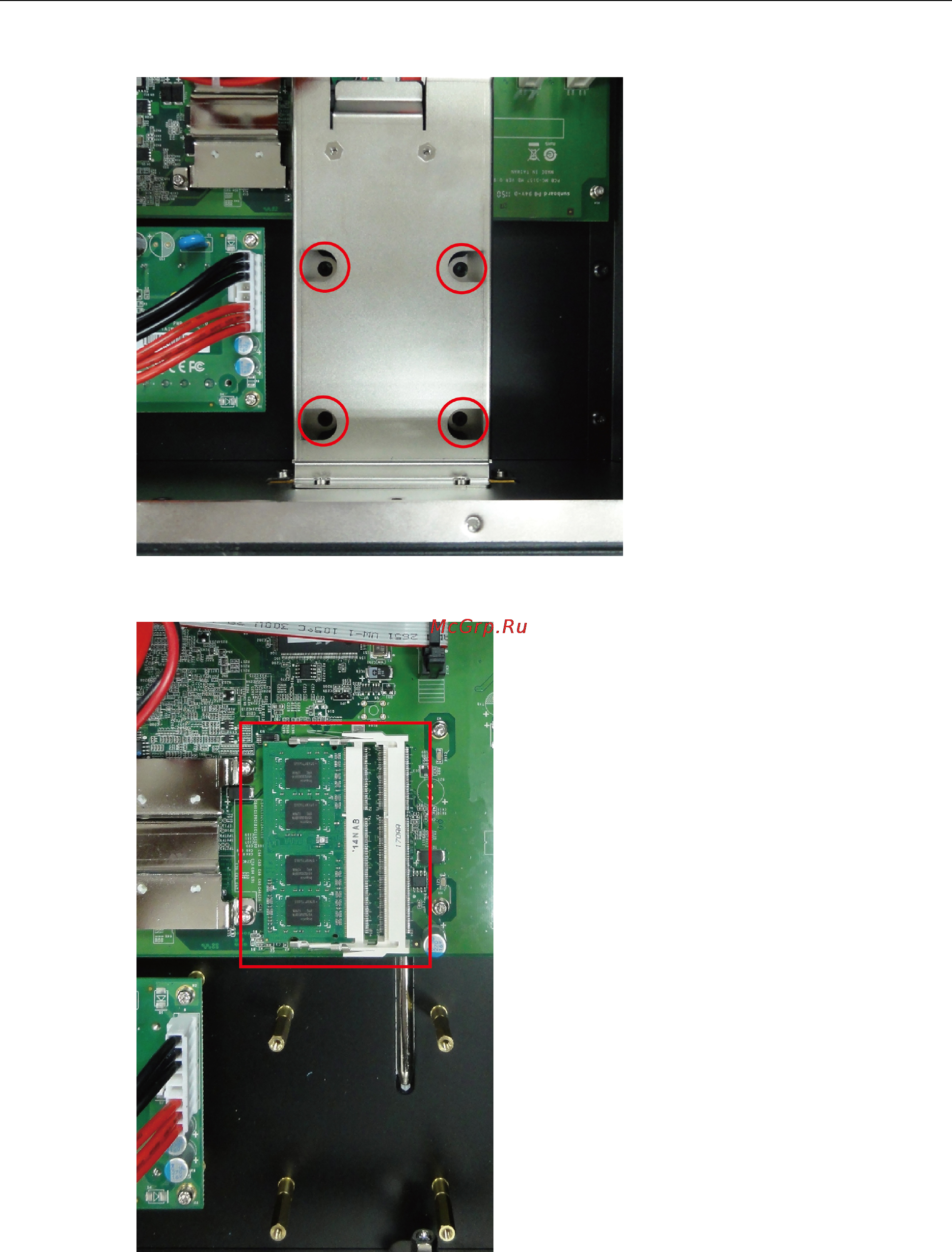

4. Remove the four screws on the removable storage tray.
5. When finished, remove the storage tray, and you can see the location of the memory module.
