MC-5150-AC/DC BIOS Setup
4-17
Step 2: Prepare the Upgrade File
You must use the BIOS upgrade installation file to upgrade the BIOS. Contact Moxa’s technical department for
assistance.
1. Get the BIOS upgrade installation file. The file name should have following format: MC51xxSxx.exe (xx
refers to version numbers).
2. Copy the file to the Bootable USB Disk.
Step 3: Run the upgrade program on theMC-5150-AC/DC Computer

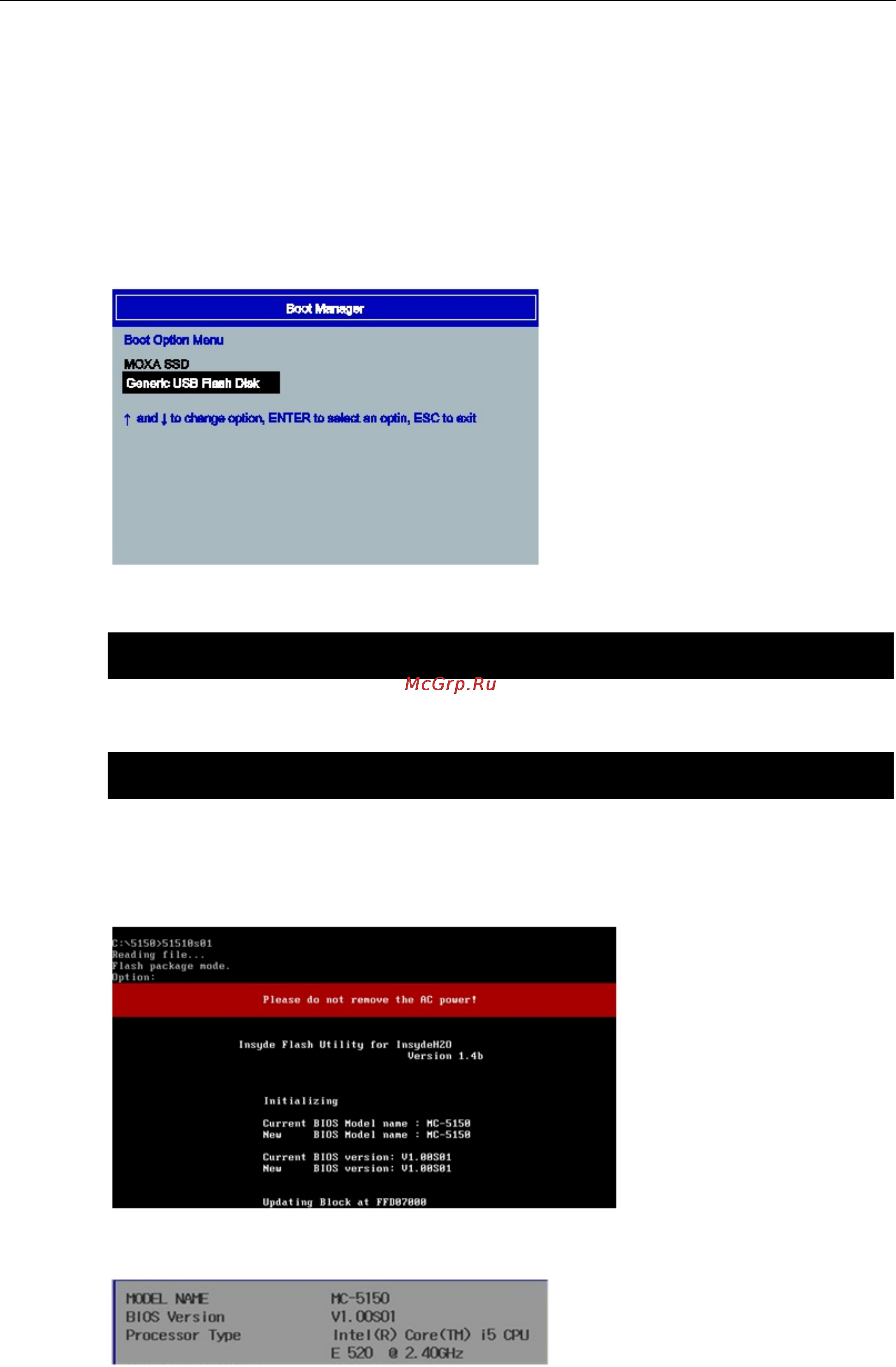

1. Reboot the computer, press F12 while booting up to go to the Boot Manager
2. Select USB Disk as the first boot source. Press Enter to continue.
3. When boot up finishes, DOS screen will show up. Go to the directory where the upgrade file is located. For
example, if the upgrade file is stored in the MC_5150 folder, type cd MC_5150
C:
\cd MC_5150
4. Run the upgrade program by typing MC5150S03.exe. Please note that the upgrade filename may vary
depending on the versions.
C:
\ MC_5150>MC5150S03.exe
5. The upgrade program will be automatically performed. Please wait until the procedure to be finished.
6. When the upgrade is finished, the computer will automatically reboot. You may check the BIOS version in
Main page of the BIOS Setup
