MC-5150-AC/DC BIOS Setup
4-4

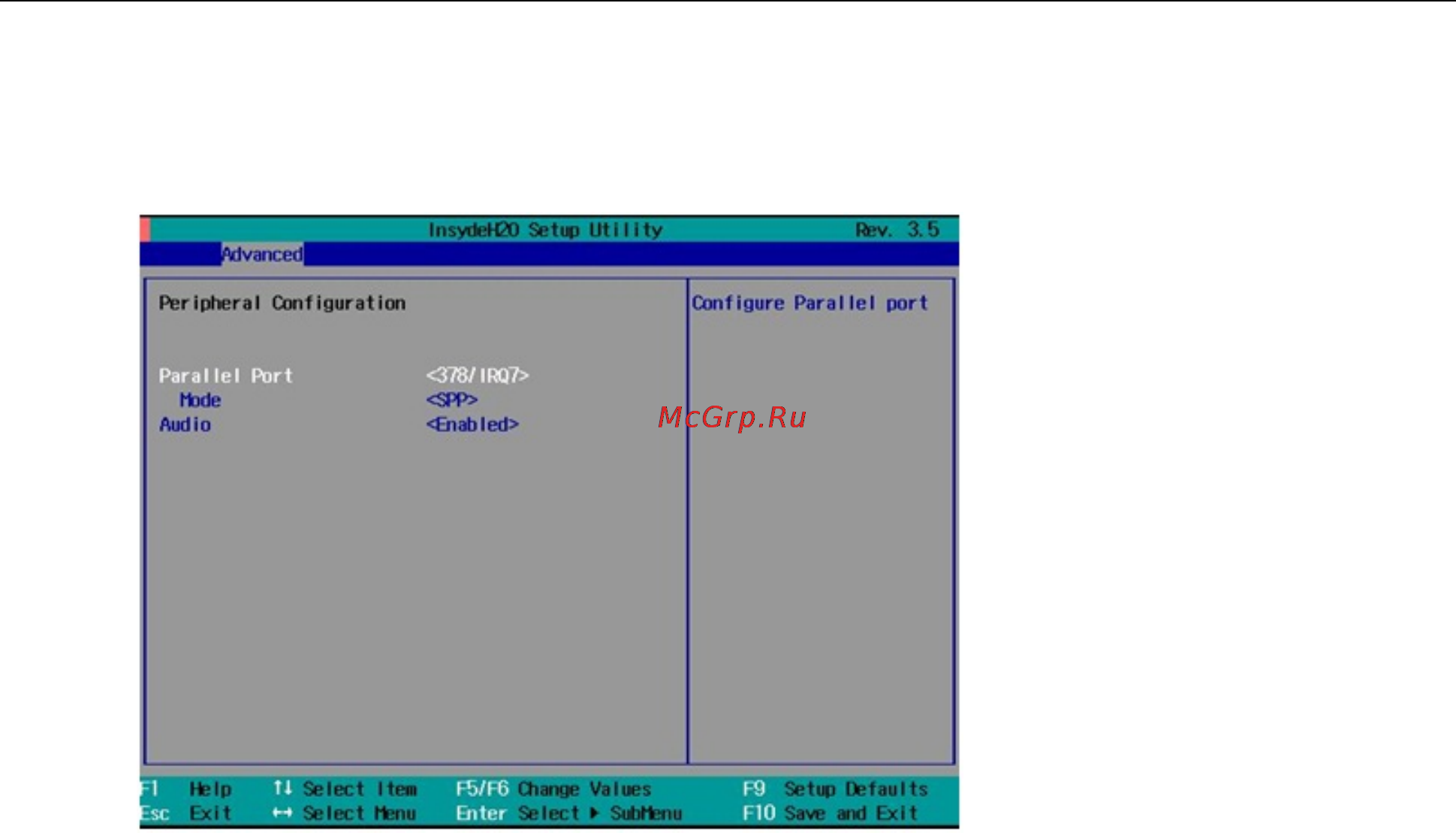

Peripheral Configuration
This item allows you to configure the parallel port and audio device.
Parallel Port
This item allows you to enable the parallel port.
Options: 378/IRQ7 (default), Disabled
Mode
This setting allows you to select the parallel port mode.
Options: SPP (default), EPP, ECP, EPP+ECP
Audio
The item allows you to configure the system to automatically detect the Audio codec.
Options: Enabled (default), Disable.
