TRC-190 Introduction

1-2

Overview

Moxa’s NRack System includes the TRC-190-series, which is a 19-inch, rack-mountable chassis for selected

Moxa media converter slide-inmodules. The TRC-190-series allows the network administrator to connect

various copper and fiber-optic network media over protocols that include RS-232, RS-422, and RS-485.

Support for additional protocols will be available in the future. The TRC-190-series provides installation space

for up to 19 single-slot media converter slide-in modules in the front of the unit.

he TRC-190-series is equipped with an AC or DC power supply installed in the back of the chassis. An extra

installation space is available for an optional redundant power supply (AC or DC).

st but not least, the TRC-190 also comes with a grounding lug to provide grounding for the chassis.

Package Checklist

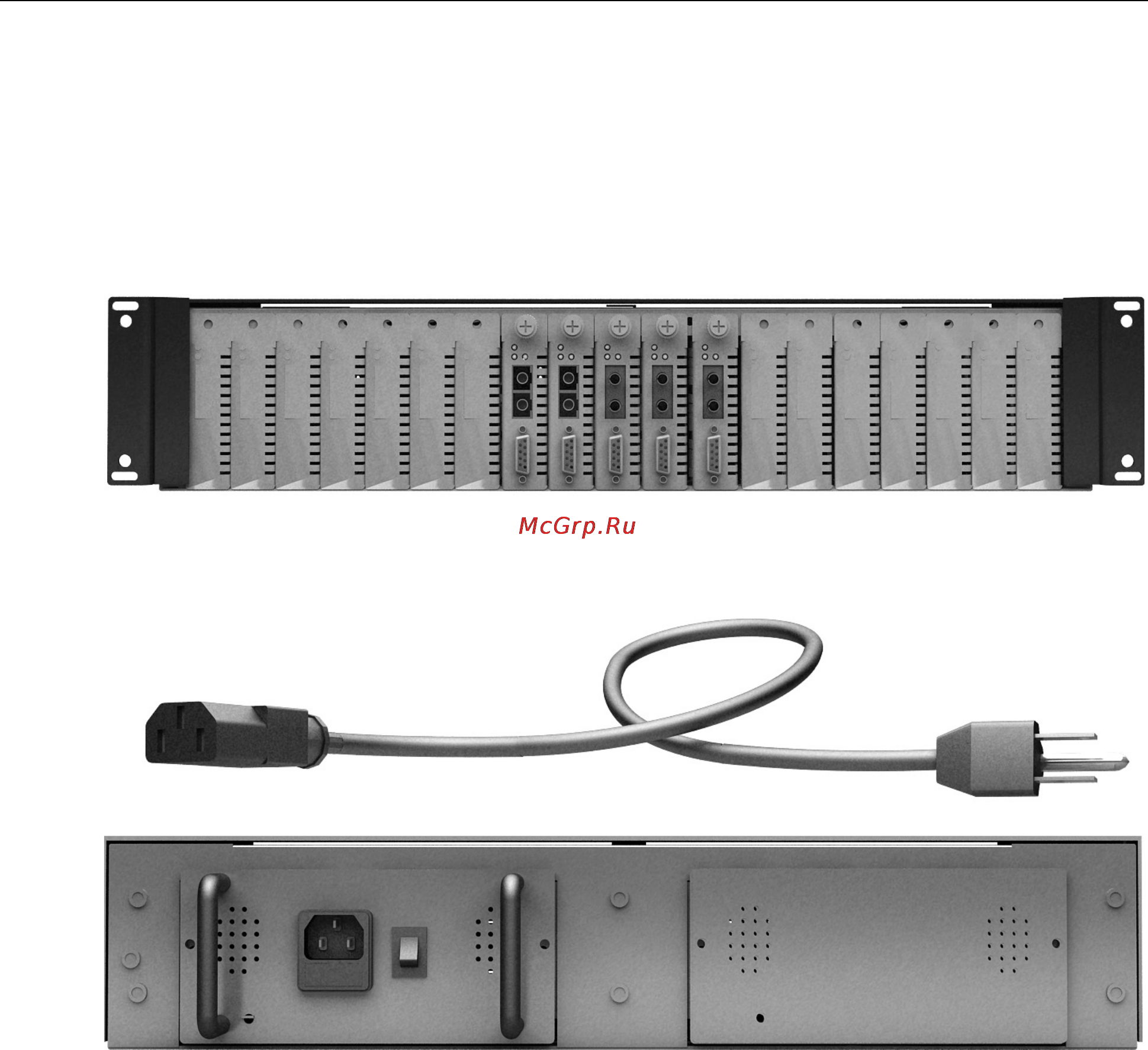

The Moxa TRC-190-series products are shipped with the following items:

Standard Accessories

• TRC-190-series with one AC or DC power supply in the back of the chassis

• 18 units of chassis face plates and screws

• Rackmount kit

• Power cord

• User’s manual

• Warranty card

Optional Accessories

• PWR-190-A

C R

edundant AC Power Supply Module

• PWR-190-DC-xx Redundant DC Power Supply Module

NOTE: Notify your sales representative if any of the above items are missing or damaged.
