OnCell G2111/G2151I Series Getting Started

2-4

SIM Card Installation

In order to protect the SIM card, the SIM card slot is located inside the casing. You will need to unscrew and

remove the outer cover before installing or removing the SIM card.

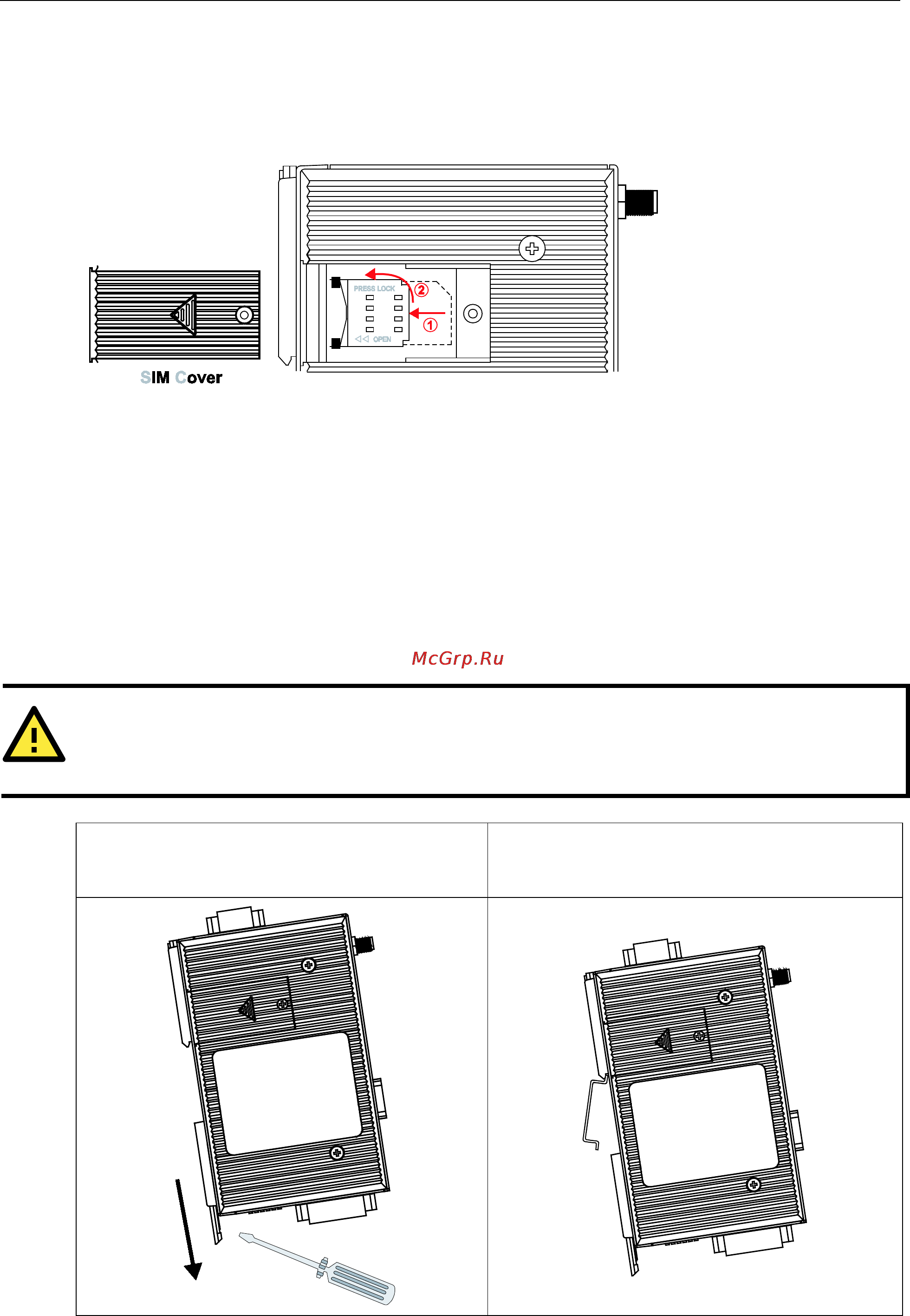

Follow these steps to remove or install the SIM card:

1. Unscrew the outer cover.

2. Slide the outer cover to the left to remove it.

3. Slide the SIM card cradle to the left and pull it towards you. Insert the SIM card into the cradle.

4. Swing the cradle back against the unit and slide it back into place. Replace the outer SIM card cover.

DIN-Rail Mounting

Built-in mounting appendages allow the modem to be mounted to a flat wall or on a DIN-rail. Follow the

intructions below to mount the modem on a DIN-rail.

ATTENTION

Before mounting the OnCell G2111/G2151I Series modem, we strongly recommend that you first remove the

antenna connection.

STEP 1: Use a flat-blade screw driver to pull the

bottom mounting appendage out. It should snap into

place.

STEP 2: Hook the modem over the top edge of the

DIN-rail as shown.
