OnCell G2111/G2151I Series AT Command Set
3-7
The default serial communication parameters are 115200 bps, 8 data bits, None parity, RTS/CTS flow
control, and 1 stop bit. Before changing the settings, first connect the RS-232 port of the OnCell
G2111/G2151I Series modem to a host PC. Open PComm Terminal Emulator with the current communication
parameters.

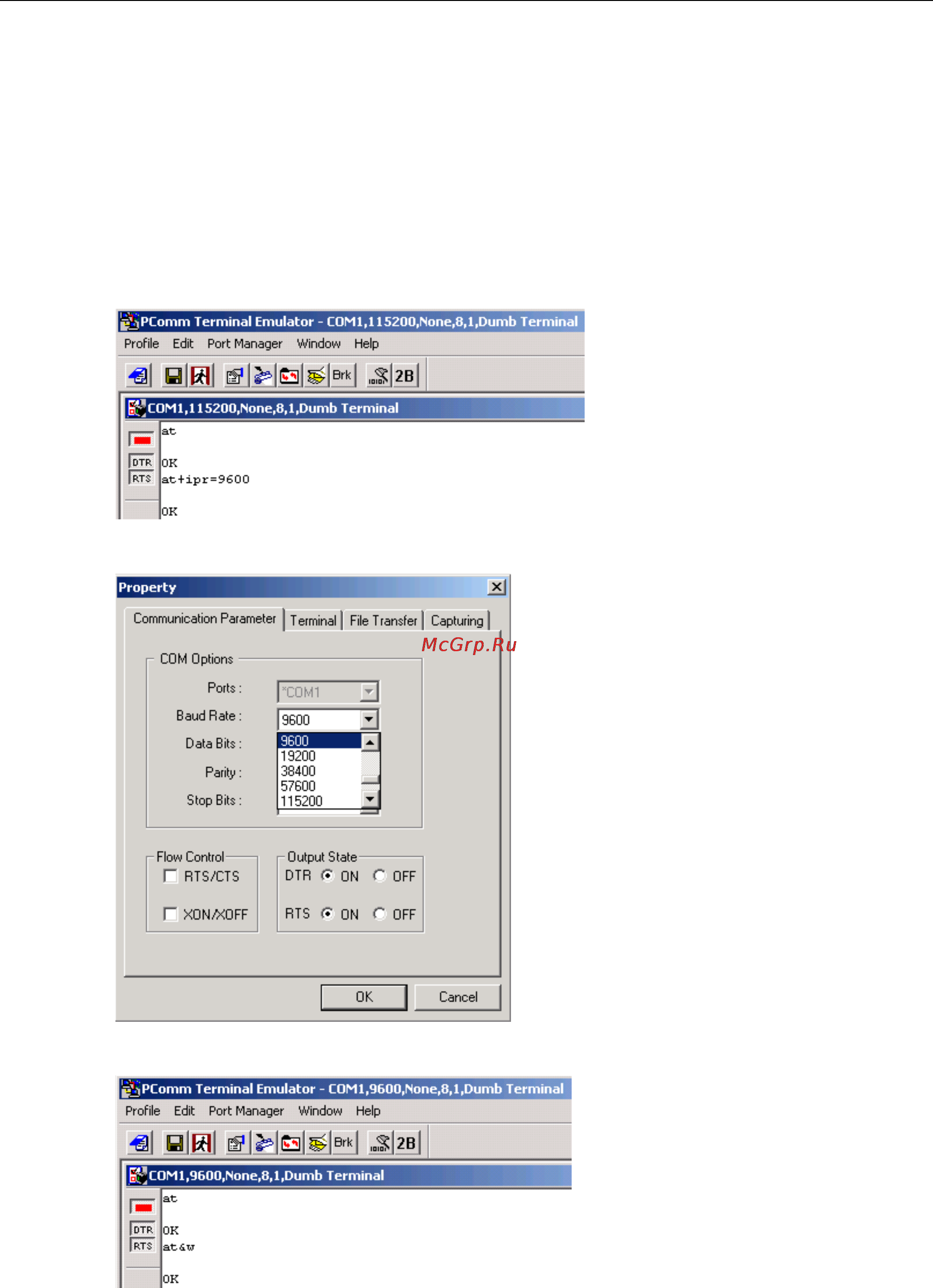

Modifying the Baudrate
1. Type AT+IPR=x and press Enter, where x corresponds to one of the following baudrates: 300, 600, 1200,
2400, 4800, 9600, 14400, 19200, 28800, 38400, 57600, 115200, 230400, 0 (autobauding). For example,
type AT+IPR=9600 to change the baudrate to 9600 bps:
2. Modify the terminal settings to match the new serial communication parameters.
3. Type AT&W and press Enter to save the settings.
Flow Control
The default RTS/CTS and XON/XOFF flow control setting is none. To enable RTS/CTS flow control:
